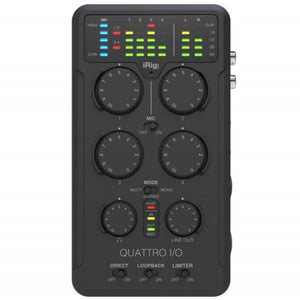

IK Multimedia IRIG-QUATTRO iRig Pro Quattro I/O Audio Interface

Always be ready in the field
Have you ever found yourself mid-session missing a key cable or connection? Or worrying before, during, or even after a shoot that your work could be compromised by technical issues?

iRig Pro Quattro I/O will put those concerns to rest forever. It’s a professional-grade 4-in / 2-out portable audio and MIDI interface packed with everything you need for pristine field recording, content creation, streaming, podcasting and performing. Handle anything life throws at you without breaking a sweat.

• iRig Pro Quattro I/O
• iRig Pro Quattro I/O interface
• 1/4" thread adapter
• Lightning to Mini-DIN connection cable (60cm/23.62")
• USB-C to Mini-DIN connection cable (60cm/23.62")
• USB-A to Mini-DIN connection cable (60cm/23.62")
• 1x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
• 4 x 1.5V AA Battery

• Professional mobile recording interface/mixer
• For iPhone, iPad, Android, Mac/PC, standalone
• 24-bit, 96 kHz operation
• 4 x XLR / 1/4" mic, guitar, line in with phantom power
• 2 x RCA, 3.5 mm line in
• Built-in microphone
• 2 x balanced XLR outs
• Headphone out with direct monitoring
• Multitrack, stereo or mono operation
• Standalone mixer mode
• Built-in limiter & -12 dB safety mode
• USB, 9VDC or battery power

• Microphone Inputs 1-2
• 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Input impedance: 1 kOhms
• Input level, min gain: 0 dBFS is obtained with a -1.5 dBu signal at the XLR input
• Input level, max gain: 0 dBFS is obtained with a -55 dBu signal at the XLR input
• Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
• Dynamic Range: 103 dB(A), min gain
• Phantom power: 48V / -4V
• Built-in microphone

• Type: MEMS
• Polar pattern: omnidirectional
• Frequency response: from 30 Hz to 20 kHz
• Max SPL: 110 dBSPL
• Sensitivity: -41.5 dB (1 kHz, 94dB SPL)
• Instrument Inputs 1-2

• 2 x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
• Input impedance: 1 MOhms
• Input level, min gain: 0 dBFS is obtained with a +10 dBu signal at the TS input
• Input level, max gain: 0 dBFS is obtained with a -43 dBu signal at the TS input
• Frequency response: from 7 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
• Dynamic range: 103 dB(A), min gain
• Microphone Inputs 3-4

• 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Input impedance: 1 kOhms
• Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
• Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
• Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
• Dynamic range: 101 dB(A), min gain
• Phantom power: 48V / -4V
• Line Inputs 3-4 (balanced)

• 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Input impedance: 1 kOhms
• Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
• Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
• Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
• Dynamic range: 101 dB(A), min gain
• Phantom power: 48V / -4V
• Line Inputs 3-4 (unbalanced)

• Unbalanced, TRS 3.5 mm stereo Jack and RCA
• Input impedance: 2.1 kOhms
• Nominal input level: -3.5 dBV (-10 dBV with 6.5 dB of headroom)
• Frequency response: from 16 Hz to 46 kHz within 3 dB (96 kHz sample rate)
• Dynamic range: 93 dB(A)
• Line Outputs (balanced)

• 2 x balanced, 3-pin XLR, Pin 2: hot / Pin 3: cold / Pin 1: ground
• Floating balanced outputs with automatic level compensation when working in unbalanced mode
• Output impedance: 150 Ohms balanced
• Output level: 0 dBFS corresponds to +12 dBu
• Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
• Dynamic range: 100 dB(A)
• Channels crosstalk: 88 dB(A)
• Stereo Output (unbalanced)

• Unbalanced, TRS 3.5 mm stereo Jack
• Output impedance: 150 Ohms balanced
• Output level: 0 dBFS corresponds to +12 dBu
• Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
• Dynamic range: 100 dB(A)
• Channels crosstalk: 88 dB(A)
• Headphones Output

• TRS 3.5 mm stereo Jack
• Output impedance: 22 Ohm
• Output level: 26 mW/channel (32 Ohm load)
• Frequency response: from 15 Hz to 44 kHz within 3 dB (96 kHz sample rate)
• Dynamic range: 100 dB(A)
• Common

• AD and DA Resolution: 24-bit
• Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
• Power: USB bus power, battery power (4 x AA), DC power supply (9VDC) or external USB power supply (5VDC, 1A min)
• Device Connection: Mini-DIN
• Size: 166 mm / 6.54″ x 92 mm / 3.62″ x 43 mm / 1.69″
• Weight: 325 g / 0.72 lb (batteries excluded)
• Battery Life:
• • Recording - Max load*: 1 hours, 30 minutes (Alkaline); 3 hours (NiMH rechargeable)
• • Playback - Min load**: 2 hours, 30 minutes (Alkaline); 4 hours (NiMH rechargeable)
• Dimensions

• Size: 166 mm / 6.54″ x 92 mm / 3.62″ x 43 mm / 1.69″
• Weight: 325 g / 0.72 lb (batteries excluded)
