Charvel 297-5001-521 Pro-Mod San Dimas Style 1 Electric Guitar, HH, Floyd Rose, Ebony Fretboard - Neon Pink Ash (#KWC2110145)
- Regular price
- $1,099.99
- Sale price
- $1,099.99
- Regular price
-
$1,299.99 - Unit price
- /per
Contact us if you are interested in this product.
808-591-0999 or admin@easymusiccenter.com
Adding product to your cart
- Description
- More
- Features
- Specs
- Electric Guitar Accessories
- Inspection and Set-up

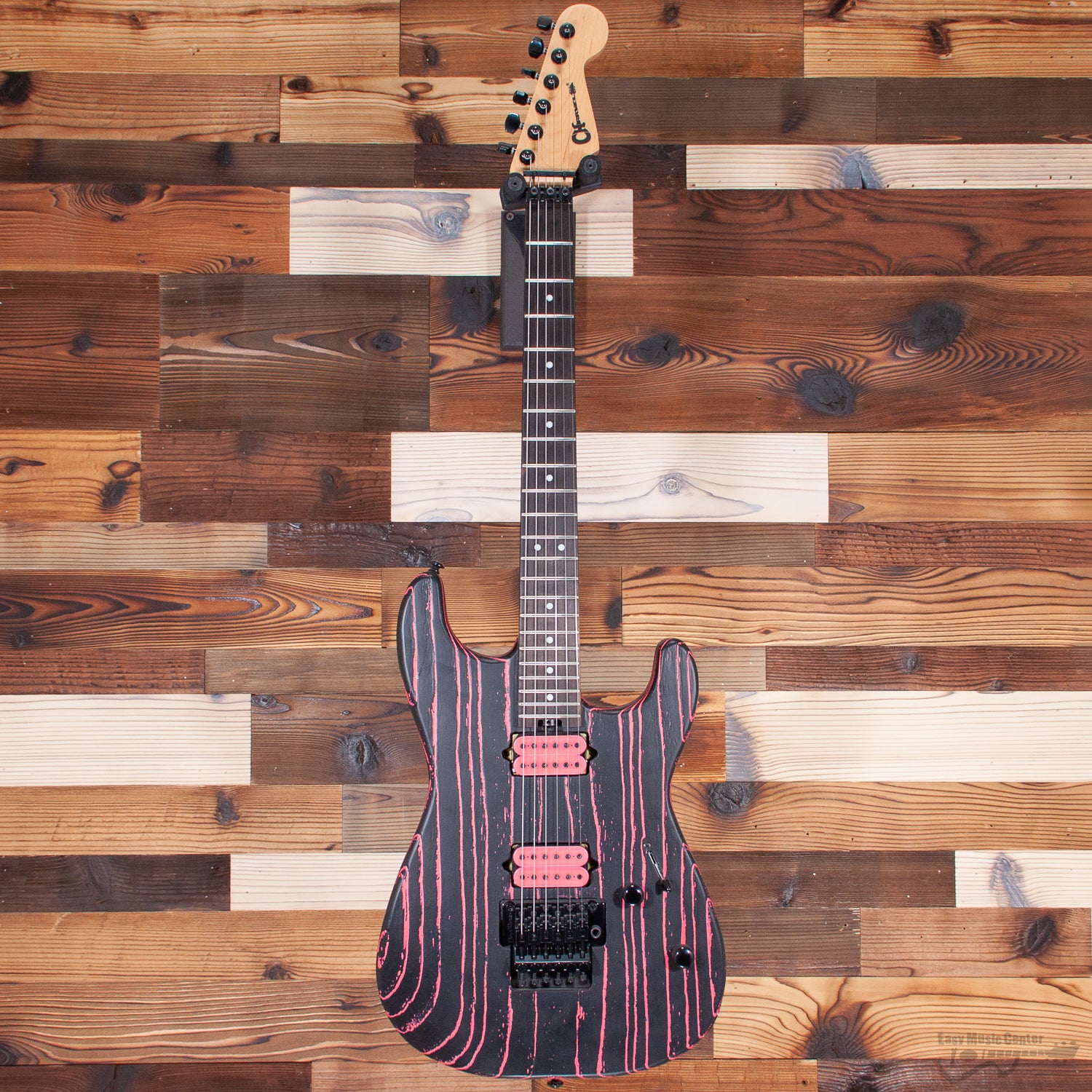

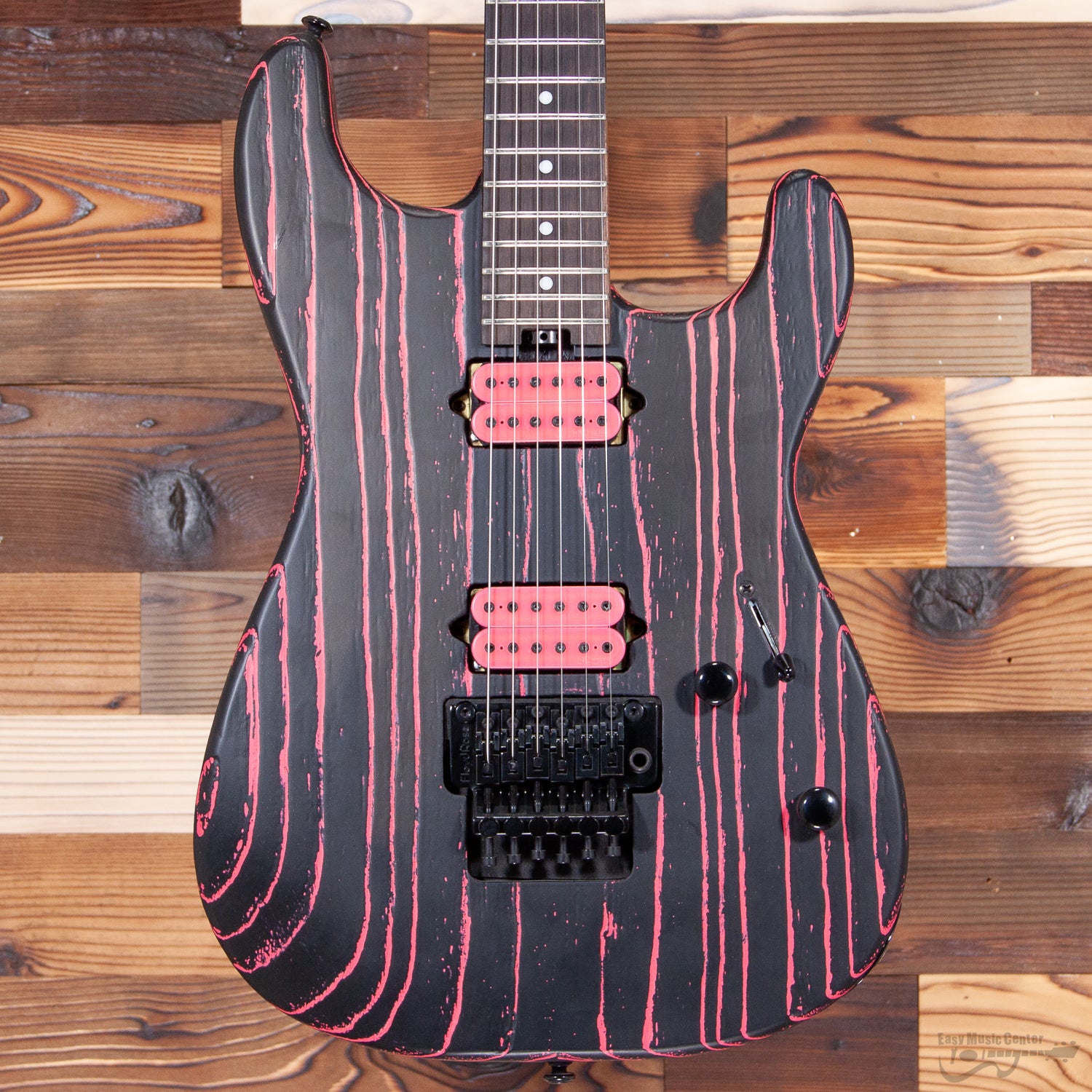

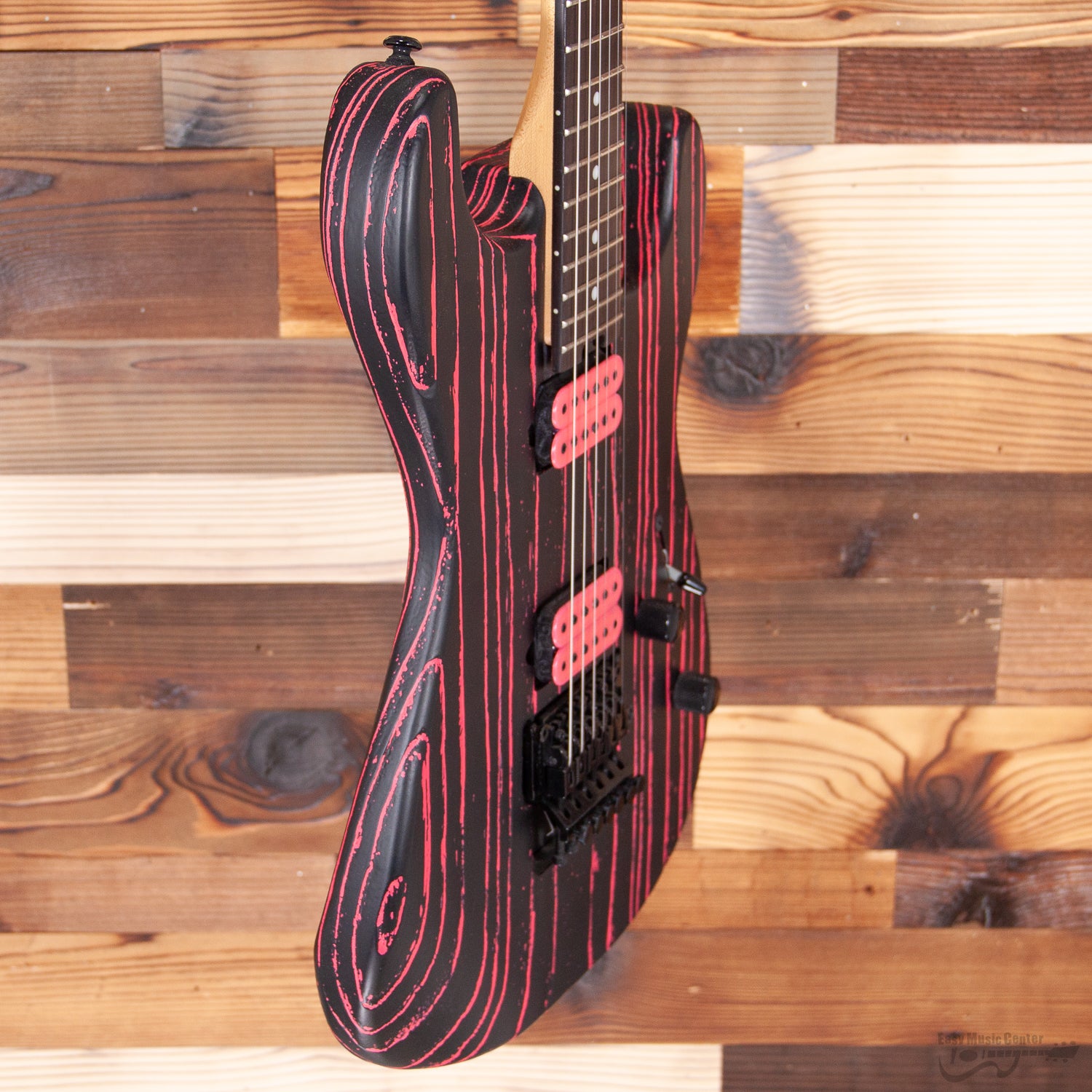

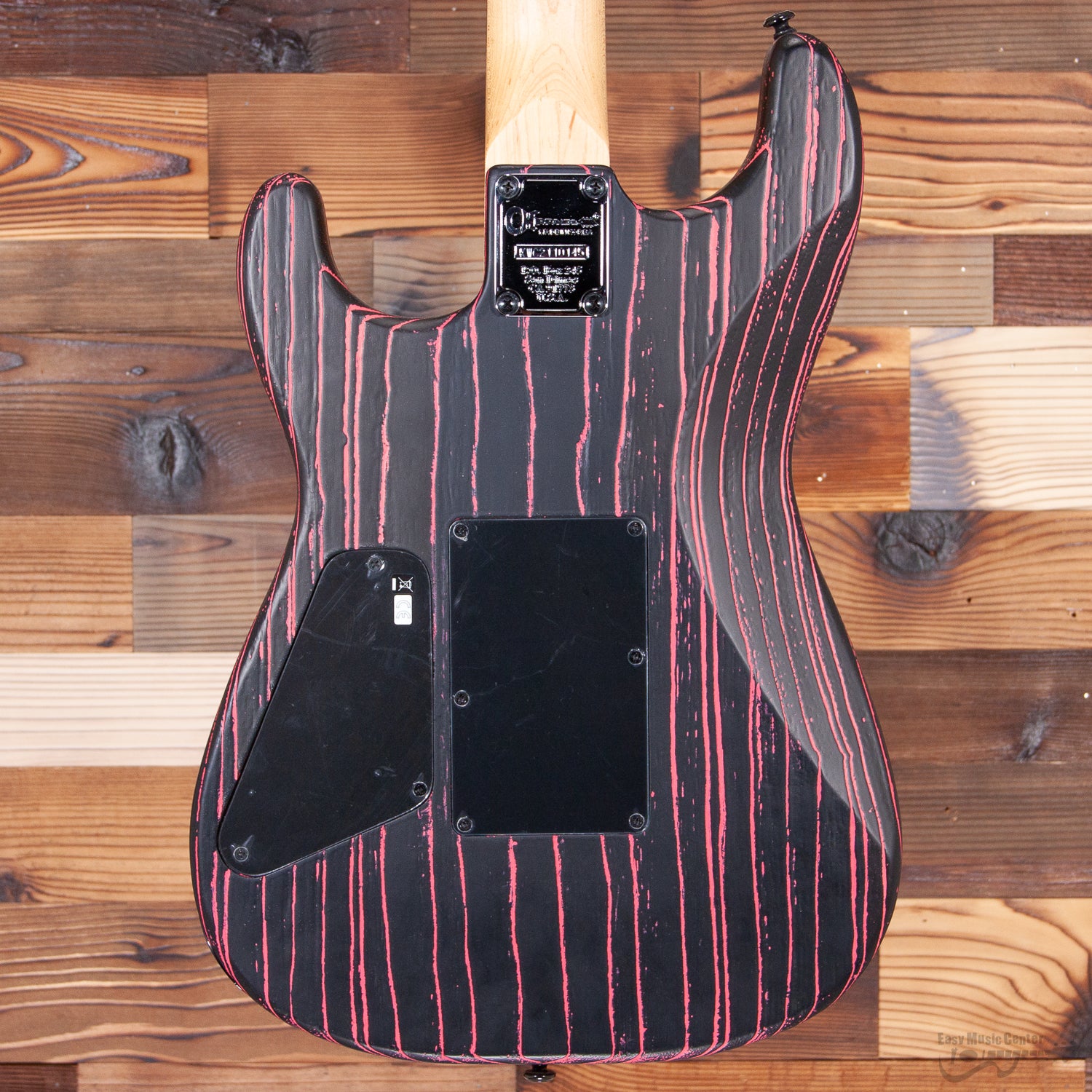

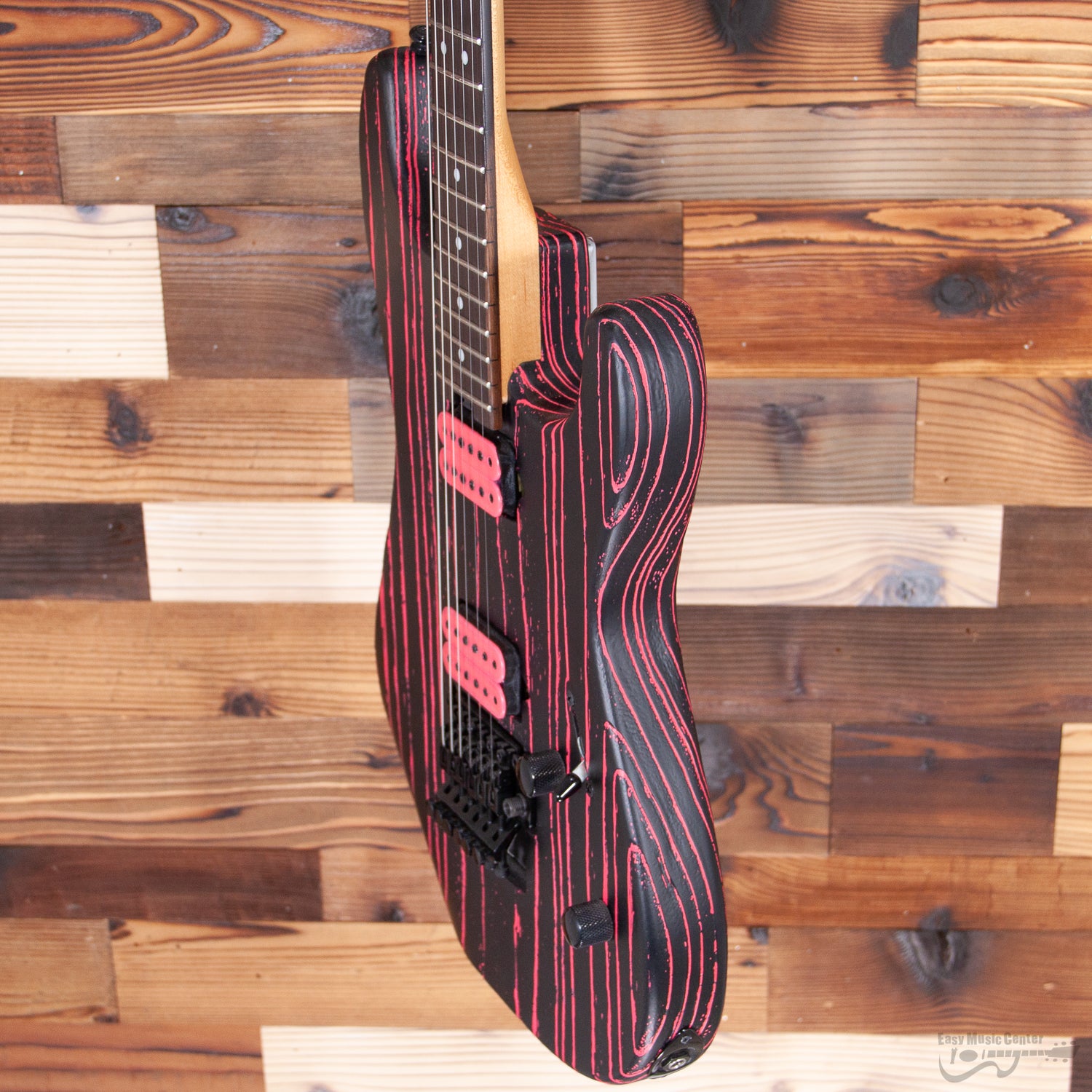

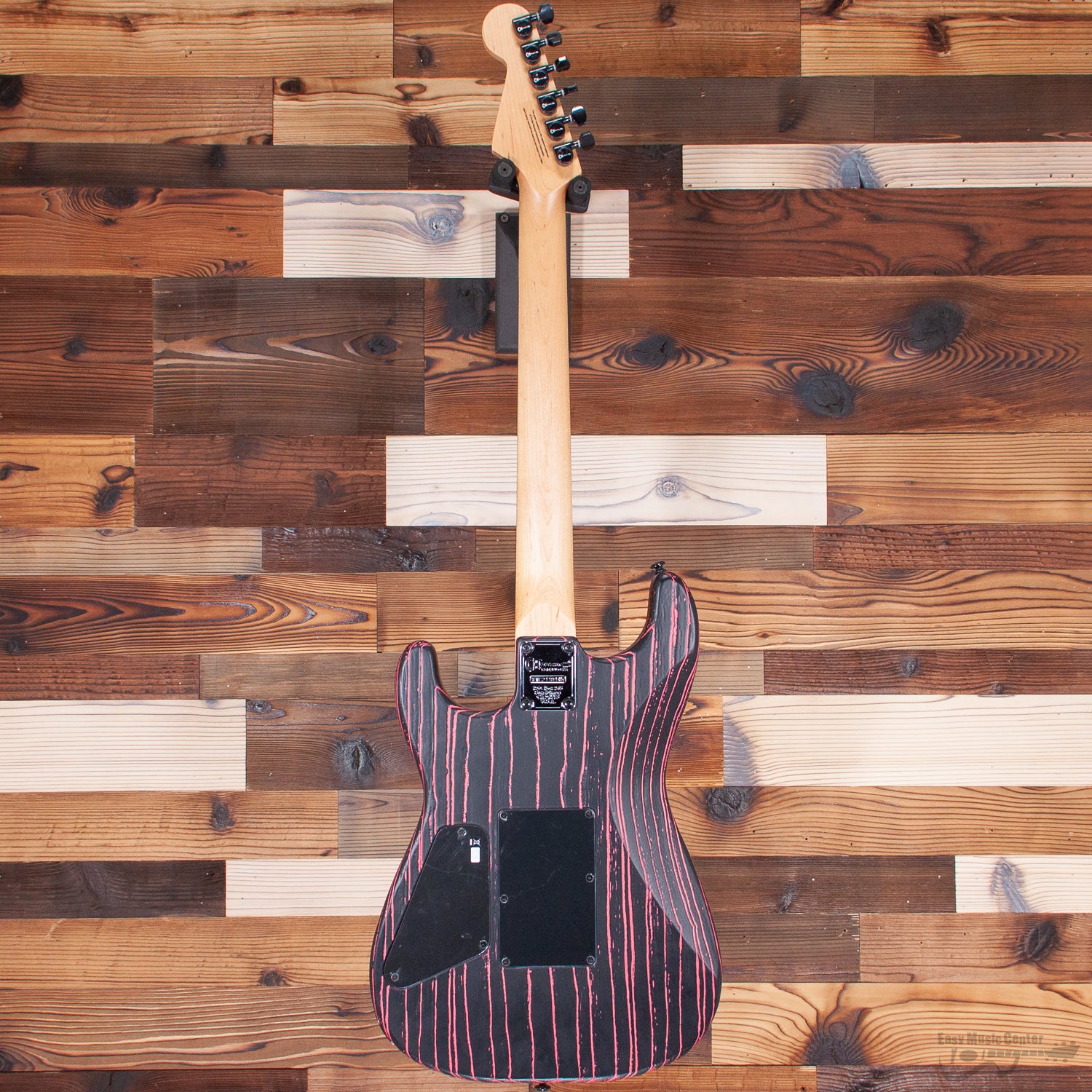

*Photos shown are of the actual guitar. Serial KWC2110145.

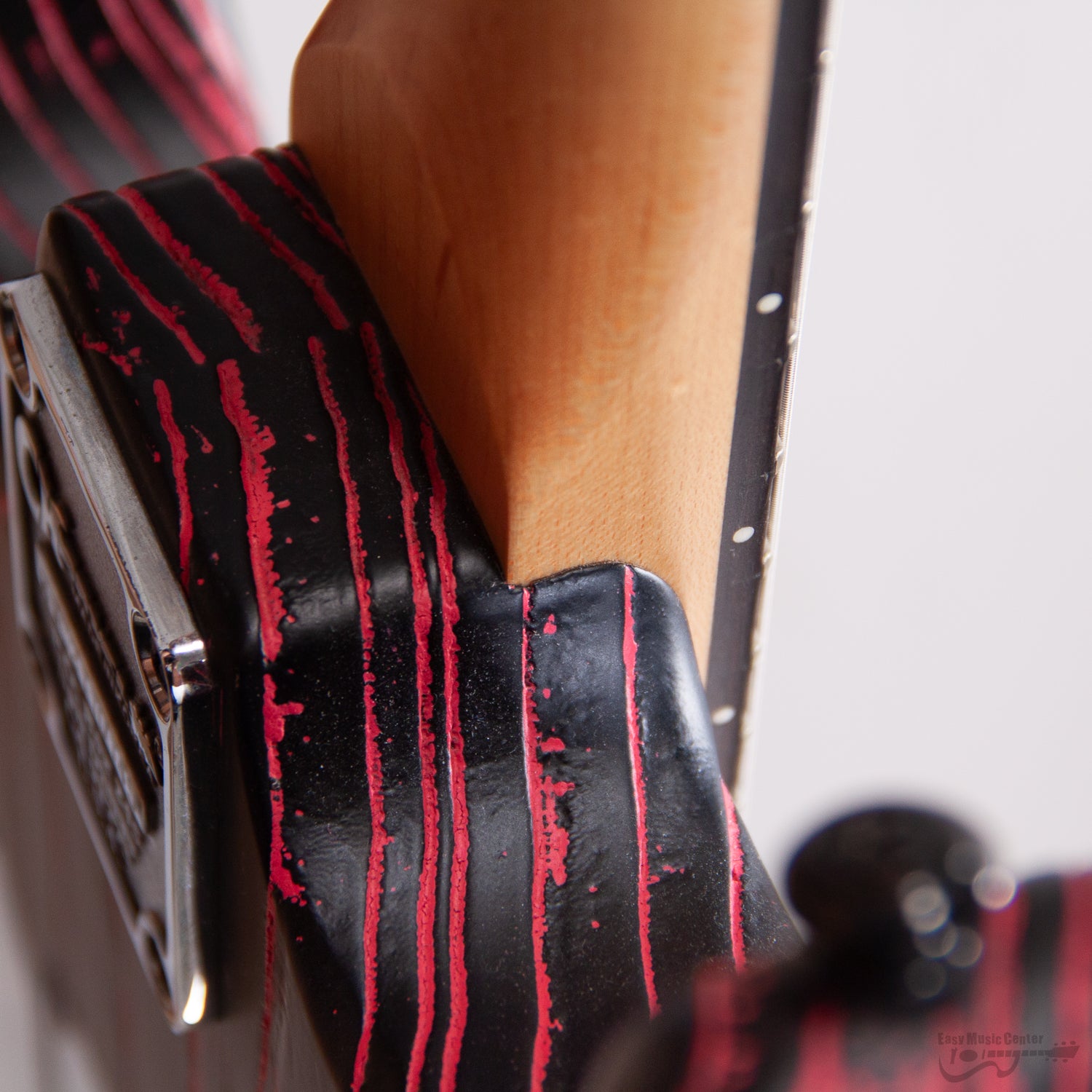

The San Dimas sandblasted ash body is coupled with a bolt-on maple neck featuring a pair of graphite-reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.
- CASE/GIG BAG: Not Included.

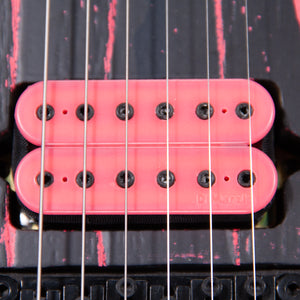

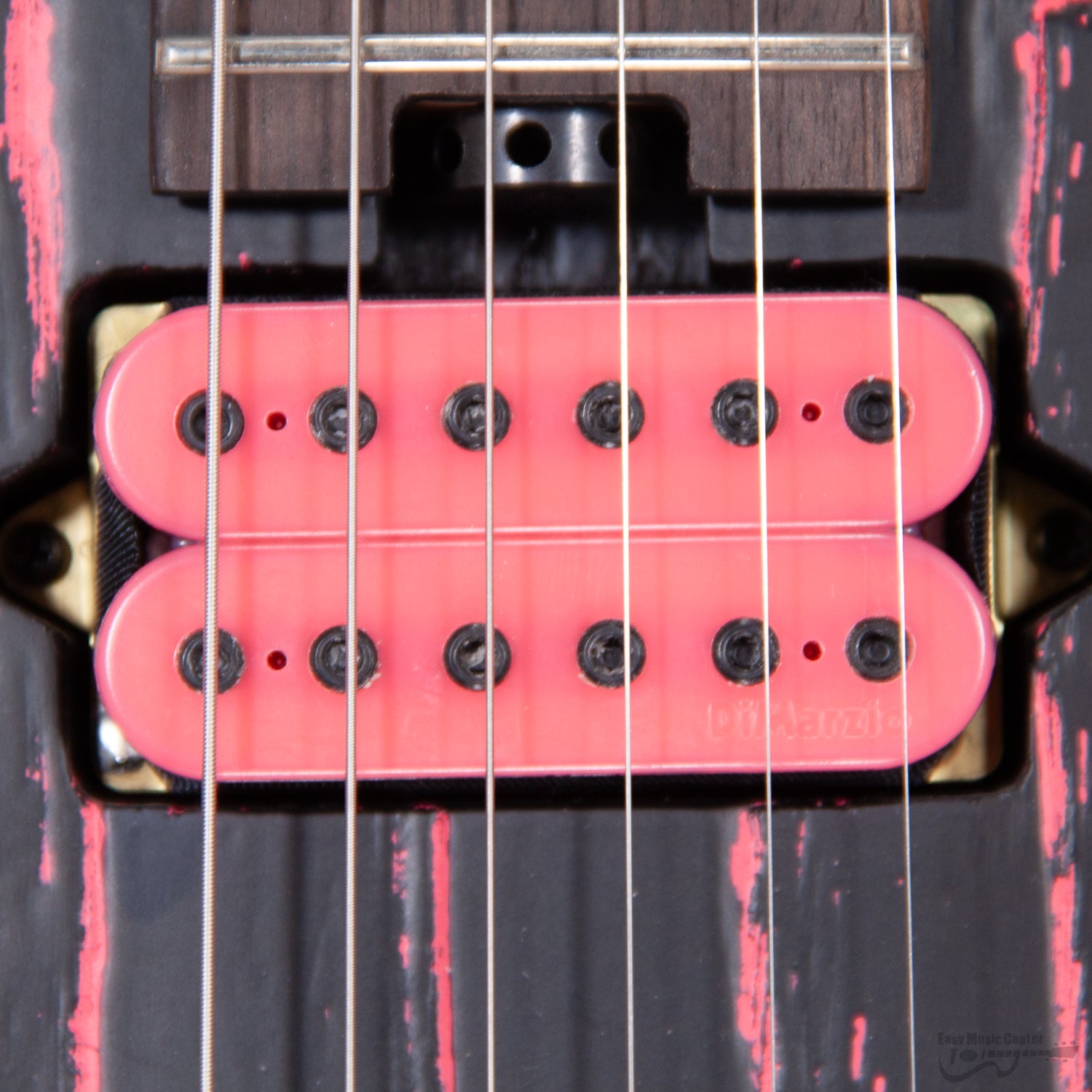

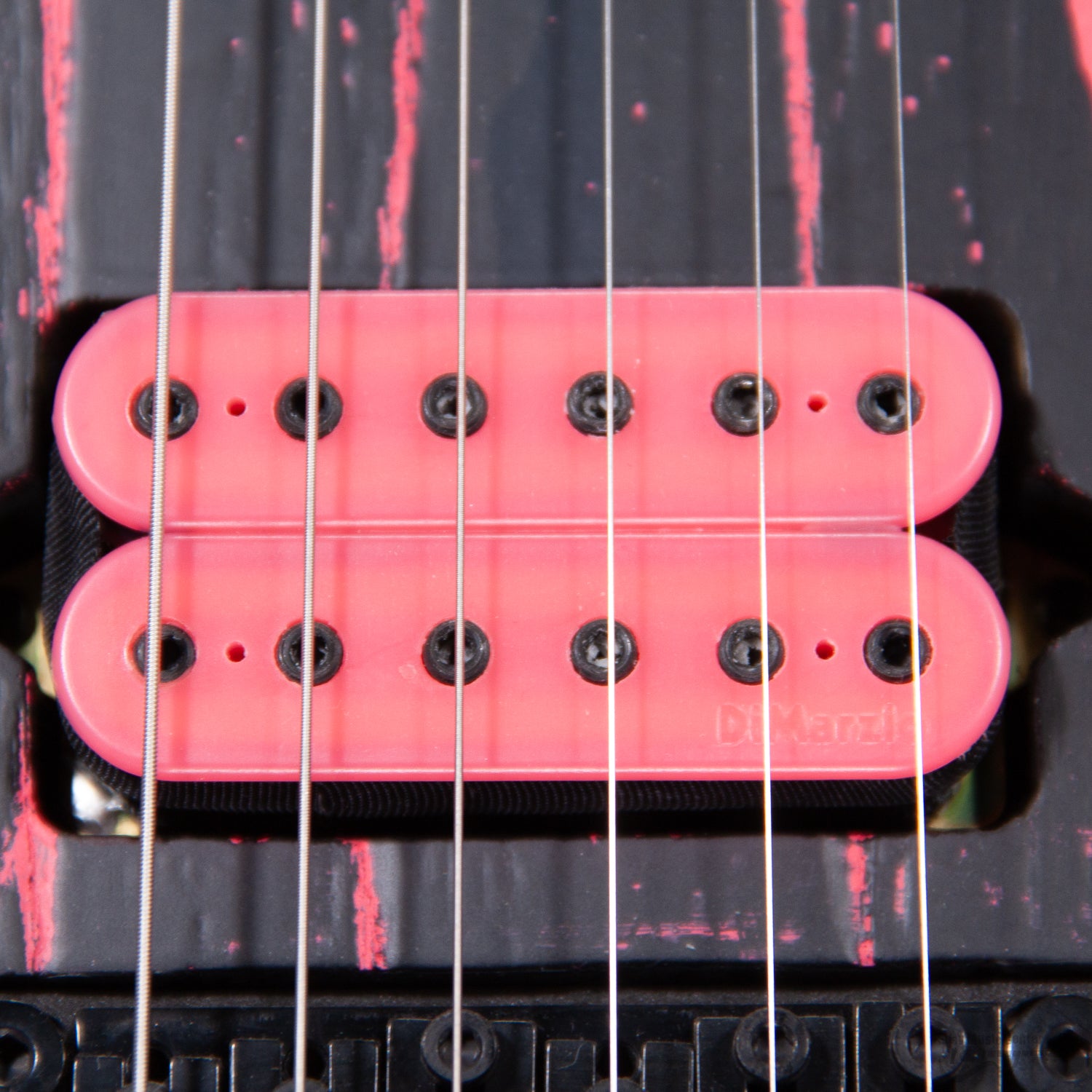

This axe features an HH pickup configuration and comes loaded with DiMarzio® Super Distortion® DP100 bridge and DiMarzio PAF Pro® DP151 neck pickups. The bridge pickup is an ideal blend of full lows, defined mids and soaring highs that can handle lead or rhythm playing, while the neck pickup rips with intense mid and high frequencies that pairs well with a high-gain amp.
Explore this instrument's versatile voice with a three-way pickup blade switch, tone control and a volume control that conceals a push/pull coil split for even more tonal variations on tap. With the Floyd Rose® 1000 Series double-locking tremolo bridge system, you can also dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning.
Destined for center stage, the Pro San Dimas Style 1 HH FR E Ash comes in a grain-filled shocking Neon Pink Ash finish with pink pickup bobbins, black hardware and a licensed Fender® Strat® headstock.
- 25.5" scale length
- Sandblasted ash body

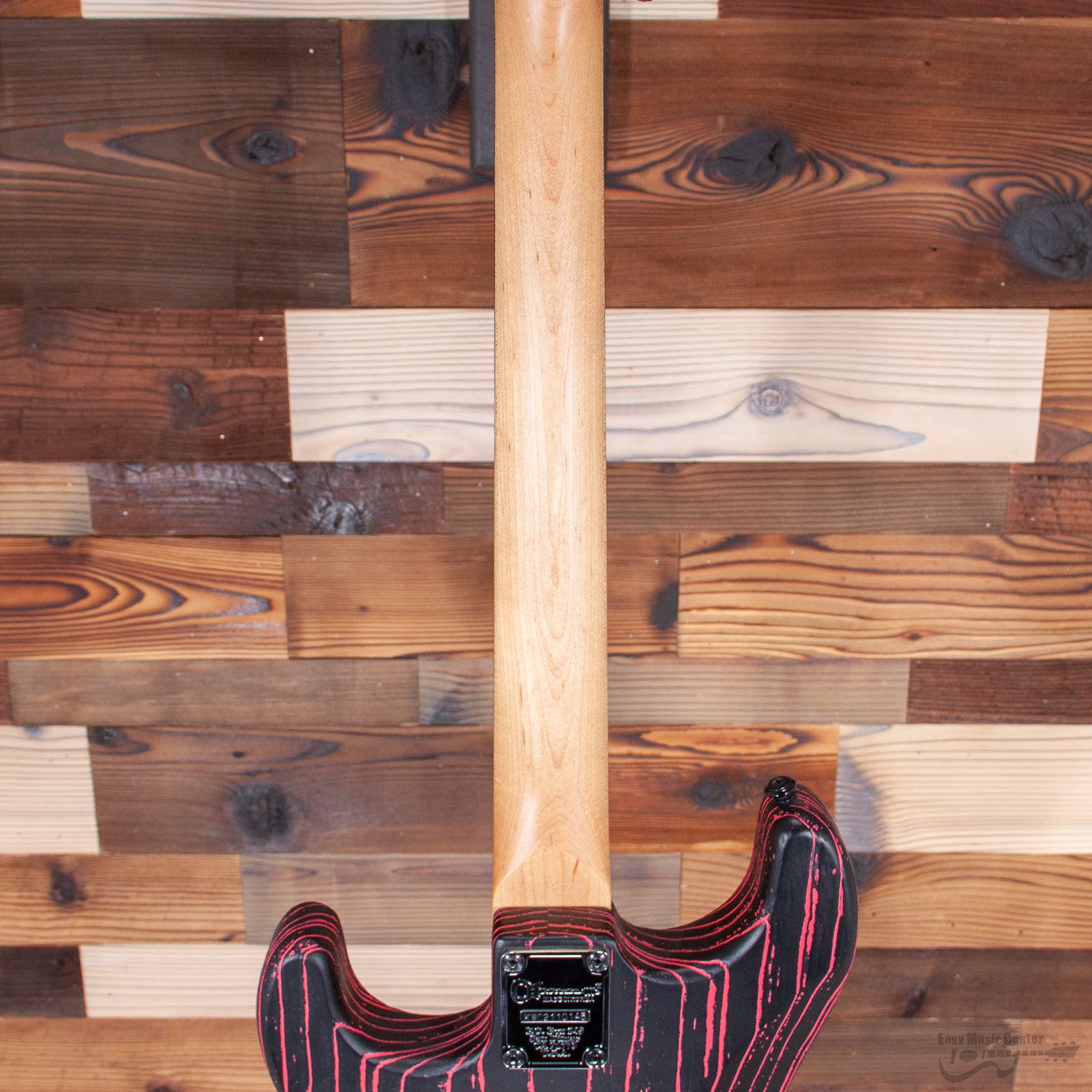

- Bolt-on maple neck with graphite reinforcement and satin finish on the back

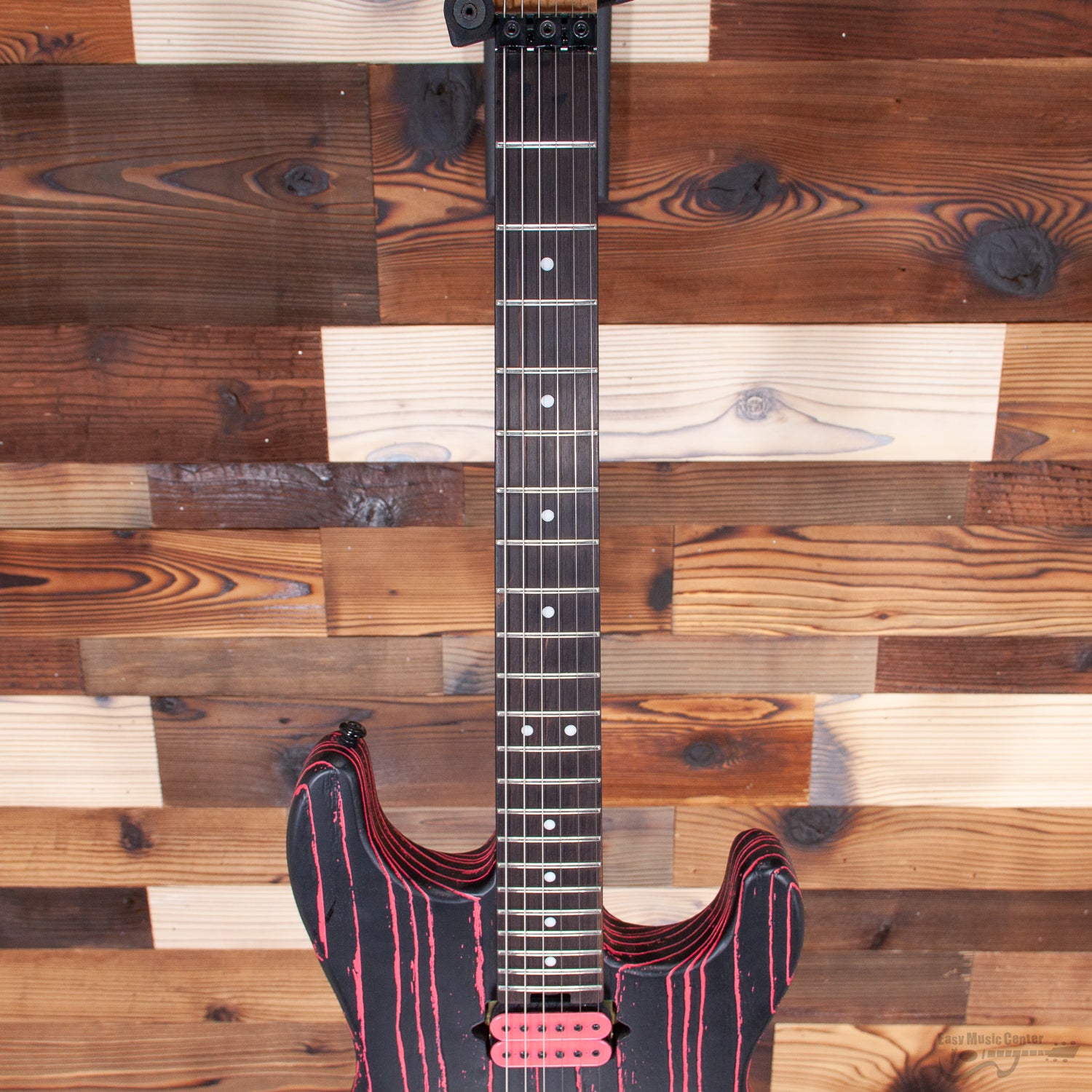

- 12"-16" compound radius ebony fingerboard with rolled edges, 22 jumbo frets and white dot inlays
- DiMarzio® Super Distortion® DP100 bridge and DiMarzio PAF Pro® DP151 neck pickups
- Three-way pickup blade switch, volume control with (push/pull coil split) and tone control
- Floyd Rose® 1000 Series double-locking tremolo bridge system
- Charvel-branded die-cast tuners and standard strap buttons
General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Neon Pink Ash
- Country of Origin: KR
Neck

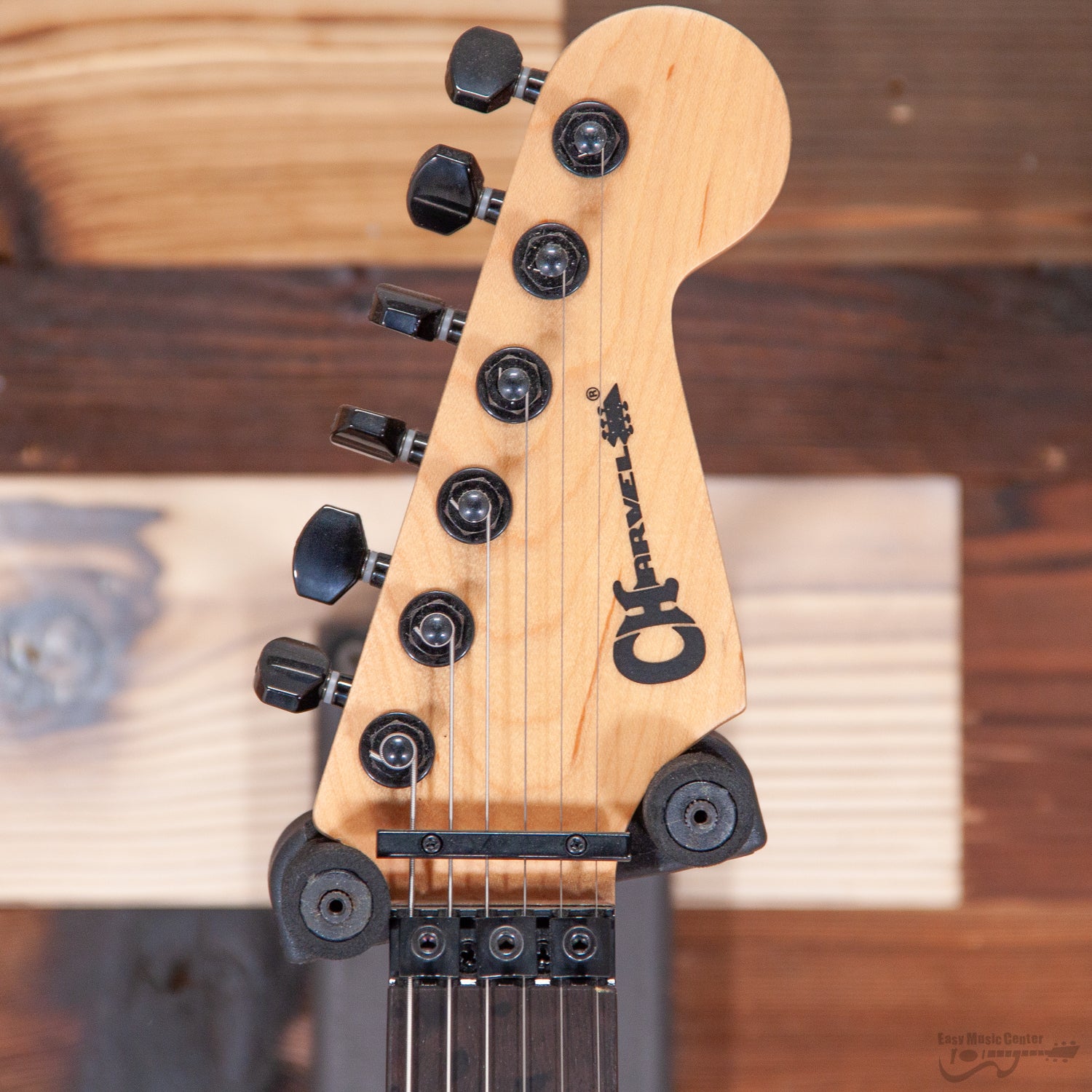

- Headstock: Licensed Fender® Stratocaster®
- Neck Material: Maple
- Neck Finish: Satin

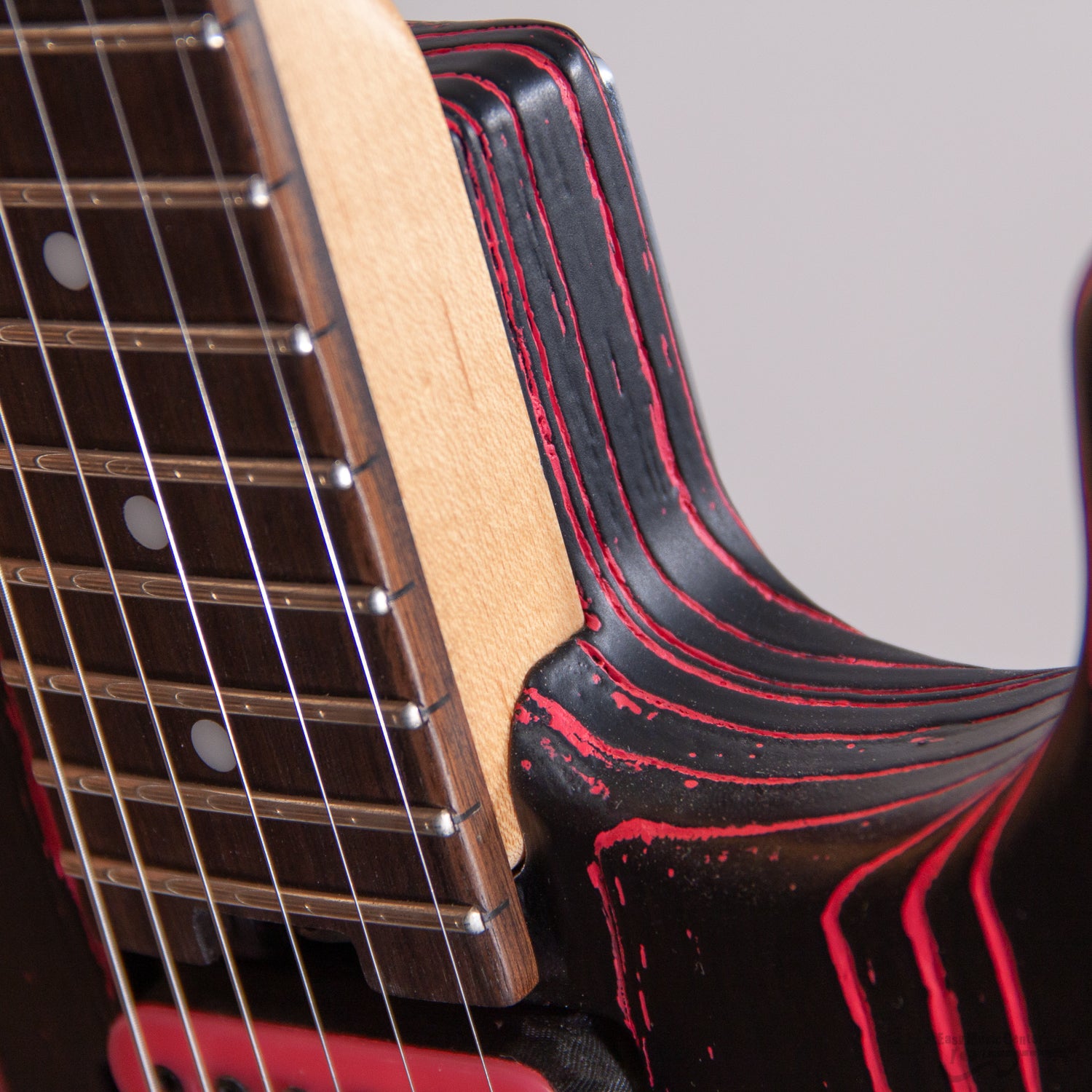

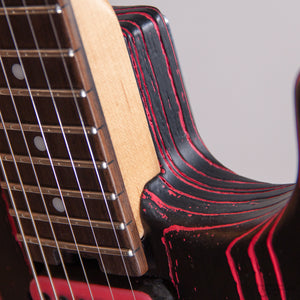

- Neck Shape: Speed Neck with Rolled Fingerboard Edges
- Neck Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: White Dot
- Side Dots: White
- Number of Frets: 22
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® 1000 Series Locking
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Floyd Rose® 1000 Series Locking
Body
- Body: Ash
- Body Finish: Satin
- Body Shape: San Dimas® Style 1
- Body Style: Solid Body
- Body Material: Ash
Hardware
- Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
- Pickguard: None
- Pickup Covers: Pink
- Control Knobs: Metal Dome
- Switch Tip: Black
- Hardware Finish: Black

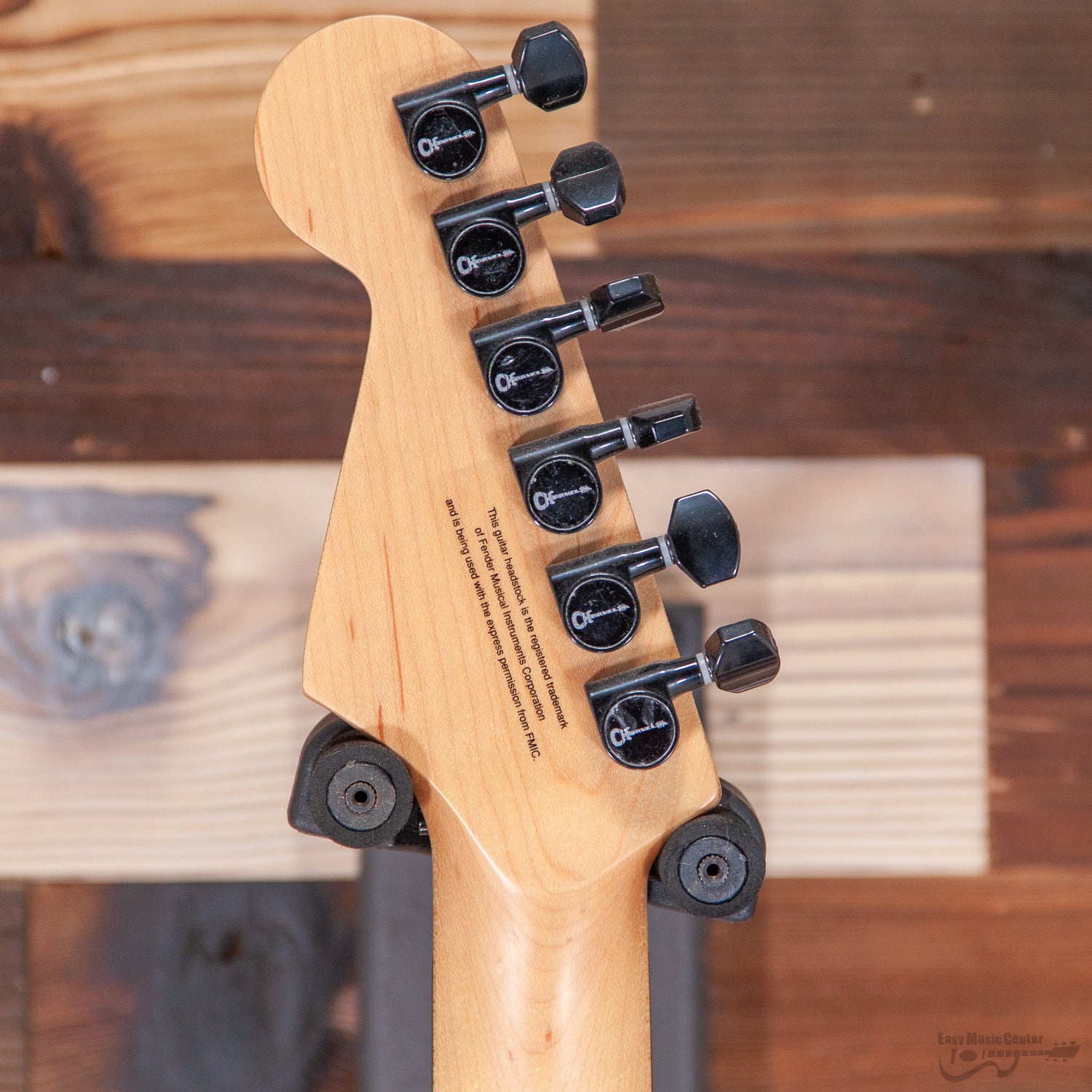

- Tuning Machines: Charvel®-Branded Die-Cast
- String Trees: Floyd Rose® Retainer Bar
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking

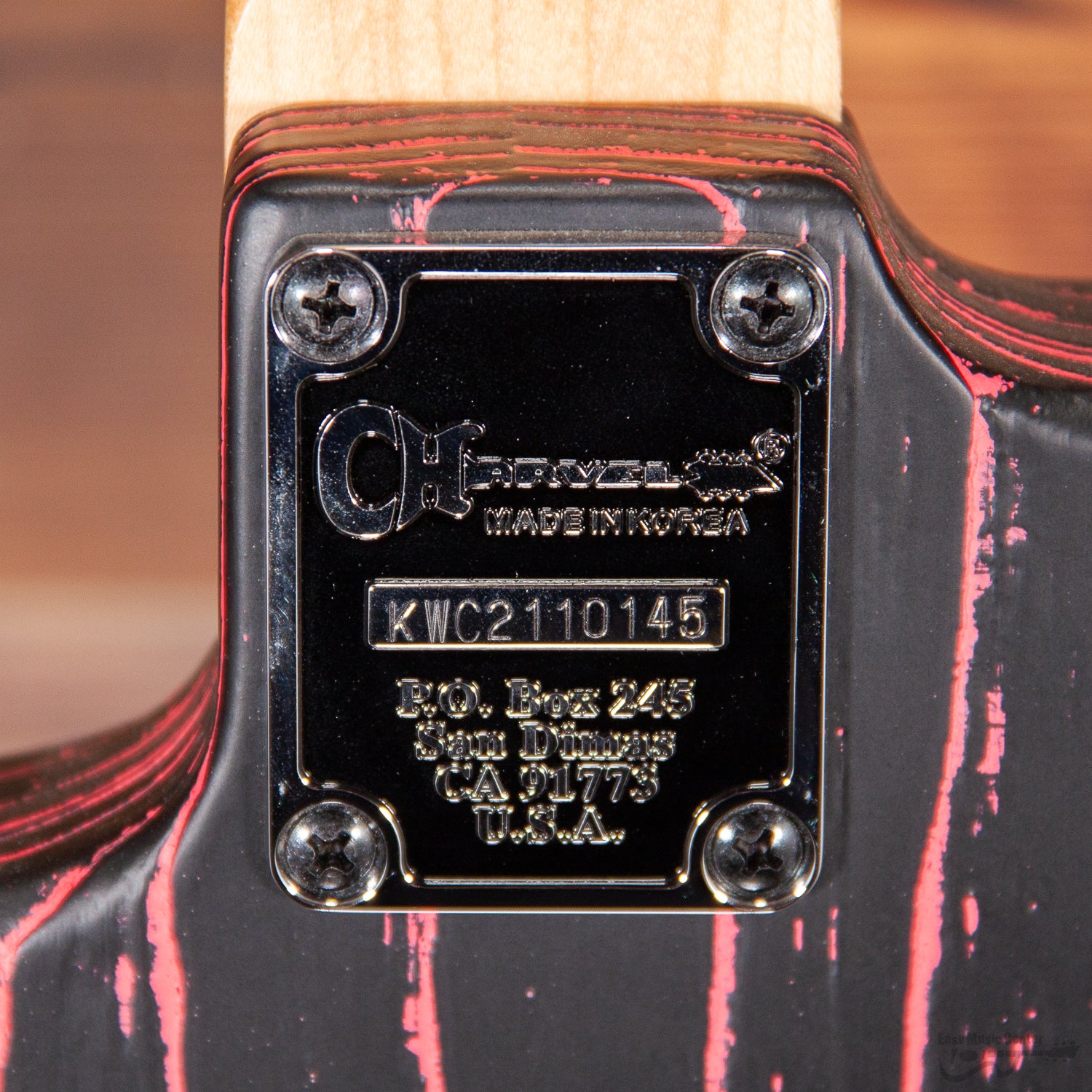

- Neck Plate: 4-Bolt Serialized
- Strap Buttons: Standard
Electronics
- Bridge Pickup: DiMarzio® Super Distortion® DP100
- Neck Pickup: DiMarzio® PAF Pro® DP151
- Pickup Configuration: HH
- Controls: Volume (Push/Pull Coil Split), Tone
- Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
Measurements
- Dimensions: 4.00 x 4.00 x 44.50 in
- Shipping Weight: 13.60 lb
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Electric Guitar Bags and Cases*
- Electric Guitar Strings
- Electric Guitar Cleaning and Maintenance
- Guitar Tuners
- Electric Guitar Stands and Wall Hangars
*Not all bags and cases fit all guitars. If you aren't sure, please check with us at the store. Admin@easymusiccenter.com or call 808-591-0999.
At Easy Music Center, we care for our instruments from the moment they arrive to when they ship to your door. All instruments are stored in a climate controlled environment and put through a 12-point inspection checklist before being shipped.
First, we check the finish of the instrument, carefully inspecting any blemishes on the surface. Next, we check the playability and setup by inspecting and adjusting the truss rod (if available), bridge, nut, and frets to manufacturer factory specifications. Any request made outside of manufacturer factory specifications can incur additional charges for parts and labor. If the instrument has electronics, we test all of the electronic components to make sure they are functioning properly.
After a thorough inspection, we then move on to maintenance. We start by lubricating any moving parts on the instrument, such as tuning machines. We then move on to cleaning and oiling the fretboard along with the frets.
Once maintenance is done, we stretch and tune the strings and play test the instrument. After this, we do a final inspection and clean/detail the instrument before packing it up for shipment.
We’re excited to be a part of your instrument buying experience.
