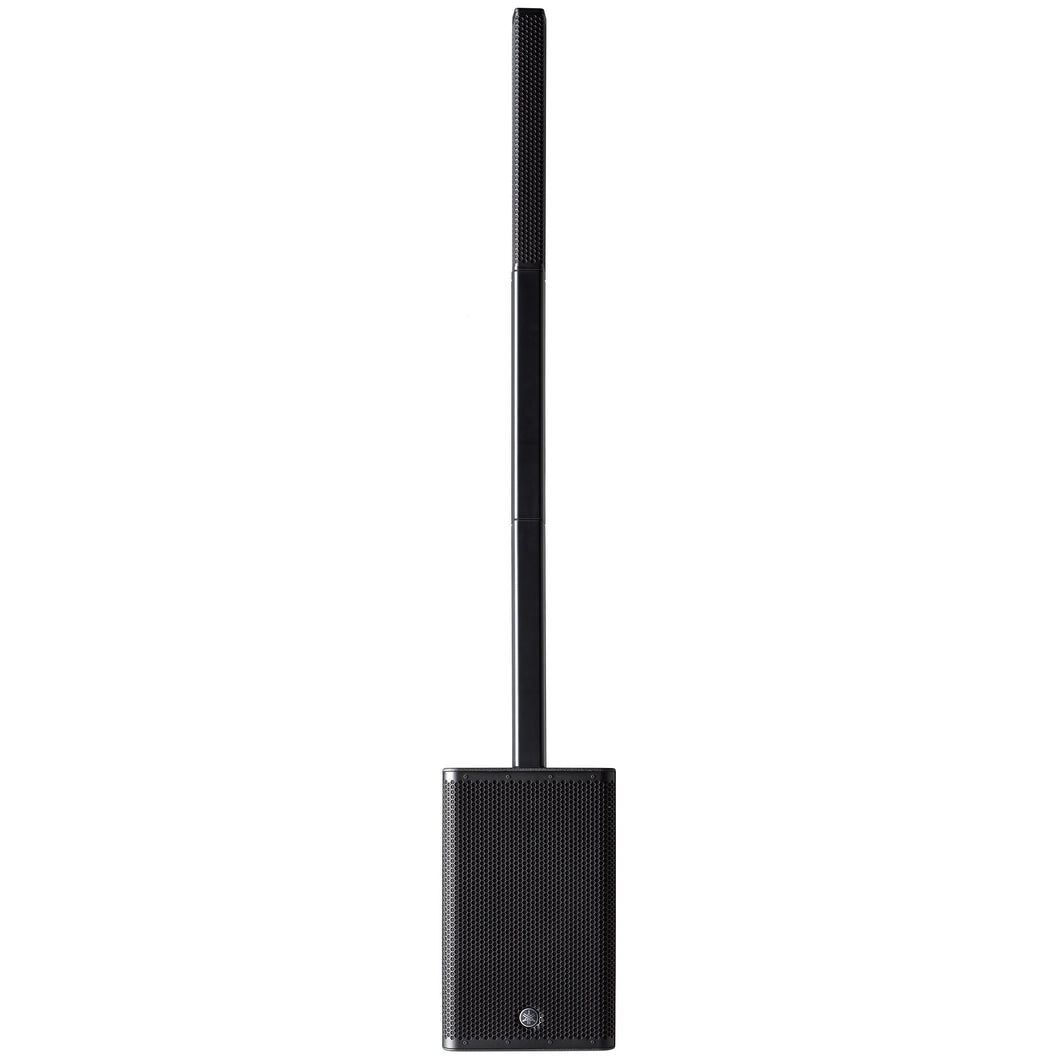

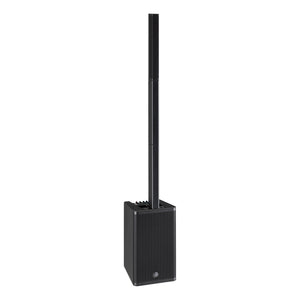

Yamaha STAGEPAS1K-MKII Column Type 1100W Portable PA System w/ Mixer and Cover

The primary focus of the STAGEPAS 1K mkII was to design a complete sound system that delivers professional quality sound despite a very simple setup and operation process that allows users to focus on what matters most — their performance. Leveraging our extensive experience and accrued knowledge as a musical instrument manufacturer and audio technology pioneer, the STAGEPAS series has made it possible for users to create their own high-quality, high-output sonic environment that combines a lightweight, portable cabinet design with a comprehensive digital mixer that can be set up virtually anywhere in a matter of minutes.

• Dedicated Cover
• AC power cable
• Owner's manual

• System Type Powered subwoofer with a line array speaker
• Frequency Response (-10 dB) 37 Hz - 20 kHz
• Coverage Angle (Horizontal x Vertical) 170° x 30°
• Crossover Frequency 240Hz
• Maximum Output Level (Measured peak、IEC noise@1m) 125 dB SPL
• Power Consumption 25 W (Idle), 91 W (1/8 power)
• Dimensions (W x H x D) System 334 x 2,000 x 418 mm
• Weight 23.0 kg
• The number of Mixing Channels 5

• Analog Inputs Mono mic/line x 3 + mono line x 2, stereo line x1
• LINK IN（MONO）
• Bluetooth Audio Inputs A2DP（SBC, AAC）
• Content Protection Method SCMS-T
• Bluetooth Version Ver 5.0
• Transmission Frequencies 2,402～2,480MHz
• Wireless Output Class 1
• Maximum Wireless Output Power (EIRP) 15dBm（32mW）
• Maximum Communication Distance 70m
• Channel Functions Hi-Z switch : CH2/3
• EQ / Effects 1-knob EQ : CH1/2/3/ST
• MODE（SPEECH/MUSIC/CLUB）
• 4 types of reverb (HALL/PLATE/ROOM/ECHO) : CH1/2/3
• Outputs LINK OUT（MONO/R）
• MONITOR OUT（MONO）
• External Controls Reverb foot switch
• Amplifier Design Class-D

• Rated Output Dynamic 1,100W（Subwoofer : 500W, Line array speaker : 600W）
• Maximum Output THD+N=1%, 1kHz Line array speaker : 250W（4Ω）
• THD+N=1%, 200Hz Subwoofer : 250W（4Ω）
• Frequency Response 1kHz, 20kHz（REF=4kHz）,1W,8Ω Line array speaker : -3dB, +1dB
• 40Hz, 5kHz（REF=1kHz）,1W,4Ω Subwoofer : -3dB, +1.5dB
• 20Hz, 20kHz（REF=1kHz）,+10dBu,10kΩ LINK OUT : -2dB, +1dB
• 20Hz, 20kHz（REF=1kHz）,+10dBu,10kΩ MONITOR OUT : -2dB, +1dB
• THD+N 1kHz 20kHz LPF, 8Ω, Half power Line array speaker : 0.2 %
• 1kHz 20kHz LPF, 4Ω, Half power Subwoofer : 0.2 %
• 1kHz 20kHz LPF, +10dBu, 10kΩ LINK OUT : 0.05%
• 1kHz 20kHz LPF, +10dBu, 10kΩ MONITOR OUT : 0.05%
• Protection Speaker DC-fault, Over Voltage
• Amplifier Thermal, Over Current, Integrated Power Limit
• Power supply Thermal, Over Voltage, Under Voltage
• Enclosure Line array speaker : Enclosed

• Speaker Unit Line array speaker : 1.5” (3.8 cm) Cone x10
• Subwoofer : 12” (30 cm) Cone
• Dimensions (W x H x D) Line array speaker : 67 x 582 x 86 mm
• Spacer (each) : 67 x 555 x 86 mm
• Subwoofer : 334 x 550 x 418 mm
• Weight Line array speaker : 1.8 kg
• Spacer (each) : 0.6 kg
• Subwoofer : 20.0 kg
• Included in the package Power cord x1,

• cover x1, Owner's Manual
• Optional accessories DL-SP1K (dedicated dolly)
• FC5 (Foot switch for reverb ON/OFF)
