EVH 510-7003-516 Wolfgang Standard Exotic, Koa, Baked Maple Fingerboard, Natural

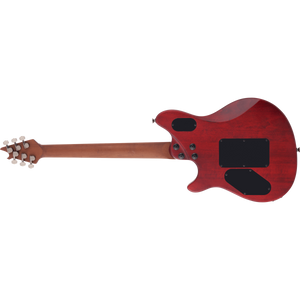

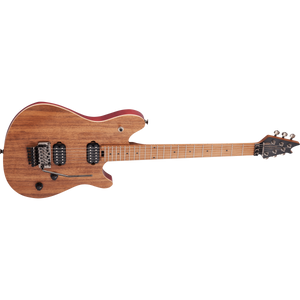

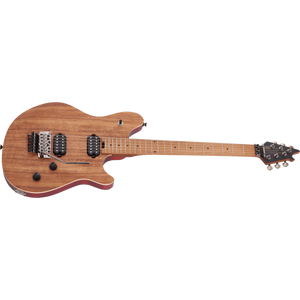

*These are stock photos. Actual color and pattern may vary.

Boasting the style and massive sound Eddie Van Halen is known for, the Wolfgang® WG Standard Exotic features all-new exotic wood options for players with distinguished taste.

The Wolfgang WG Standard Exotic Koa offers a basswood body with special “comfort cut” forearm contour for maximum playing ease, along with attractive masked-off natural body binding and a gorgeous koa top. Its bolt-on baked maple neck with graphite-reinforcement rods holds strong against the ravages of temperature and humidity, while a conveniently located spoke wheel at the base of the neck makes for quick and painless truss rod adjustments.

Designed for comfortable playability and speed, this stylish axe also features an oiled finish on the back of the neck and a 12”-16” compound radius baked maple fingerboard with rolled edges, 22 jumbo frets and black dot inlays.

Dual EVH® Wolfgang humbucking pickups mounted directly to the body increase vibration transfer, resulting in sustain for days on end. Two black knurled control knobs have been dialed-in to Van Halen’s exacting specifications—the smooth-feeling 500k pots make it easy to find a unique sound while retaining the crisp high-end sparkle of the Wolfgang pickups. The EVH-branded Floyd Rose® Special bridge and R2 locking nut consistently keep the instrument in tune through the deepest whammy dives and horse whinnies.

Decked out for playing performance and comfort, the Wolfgang WG Standard Exotic Koa is available in a Natural finish with black headstock and black chrome hardware.

• General
• Color Natural
• Country Of Origin ID
• Orientation Right-Hand
• Series Wolfgang® Standard
• Neck

• Fingerboard Material Baked Maple
• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Headstock EVH® Wolfgang®
• Neck Construction Bolt-On with Graphite Reinforcement
• Neck Finish Oiled
• Neck Material Baked Maple
• Neck Shape Wolfgang® Backshape
• Neck Thickness .790" at 3rd fret & .880" at 12th fret
• Number of Frets 22
• Nut Material Floyd Rose® R2 Locking
• Nut Width 1.625" (41.3 mm)
• Position Inlays Black Dot
• Side Dots Black
• String Nut Floyd Rose® R2 Locking
• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
• Body

• Body Basswood
• Body Binding Masked Off Natural Body Binding
• Body Finish Satin Urethane
• Body Material Basswood
• Body Shape Wolfgang®
• Body Top Koa
• Hardware

• Bridge EVH®-Branded Floyd Rose® Special Locking Tremolo
• Control Knobs Black Knurled with White Indicator
• Hardware Finish Black Chrome
• Pickup Covers Black
• Strap Buttons Oversized
• String Trees Floyd Rose® Retainer Bar
• Strings Nickel Plated Steel (.009-.042 Gauges)
• Switch Tip Black
• Tremolo Arm Floyd Rose® Special Locking
• Tuning Machines EVH®-Branded
• Electronics

• Bridge Pickup Direct Mount EVH® Wolfgang® Humbucking
• Controls Volume with Treble Bleed Circuit, Tone
• Neck Pickup Direct Mount EVH® Wolfgang® Humbucking
• Pickup Configuration HH
• Switching 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Accessories

• Included Accessories Tremolo Arm, Hex Keys & User Manual
• Truss Rod Wrench 2.5 mm Hex
• Measurements

• Dimensions 4.80x15.40x42.60 IN
• Fret Size Jumbo
• Scale Length 25.5" (648 mm)
• Shipping Height 4.80 IN
• Shipping Length 42.60 IN
• Shipping Weight 10.40 LB
• Shipping Width 15.40 IN
