ART USBMIX4 4-Channel Mixer w/USB, 2-XLR Inputs

Designed with streamers and content creators in mind, the USB Mix 4 is a compact analog mixer with an integrated digital audio interface.

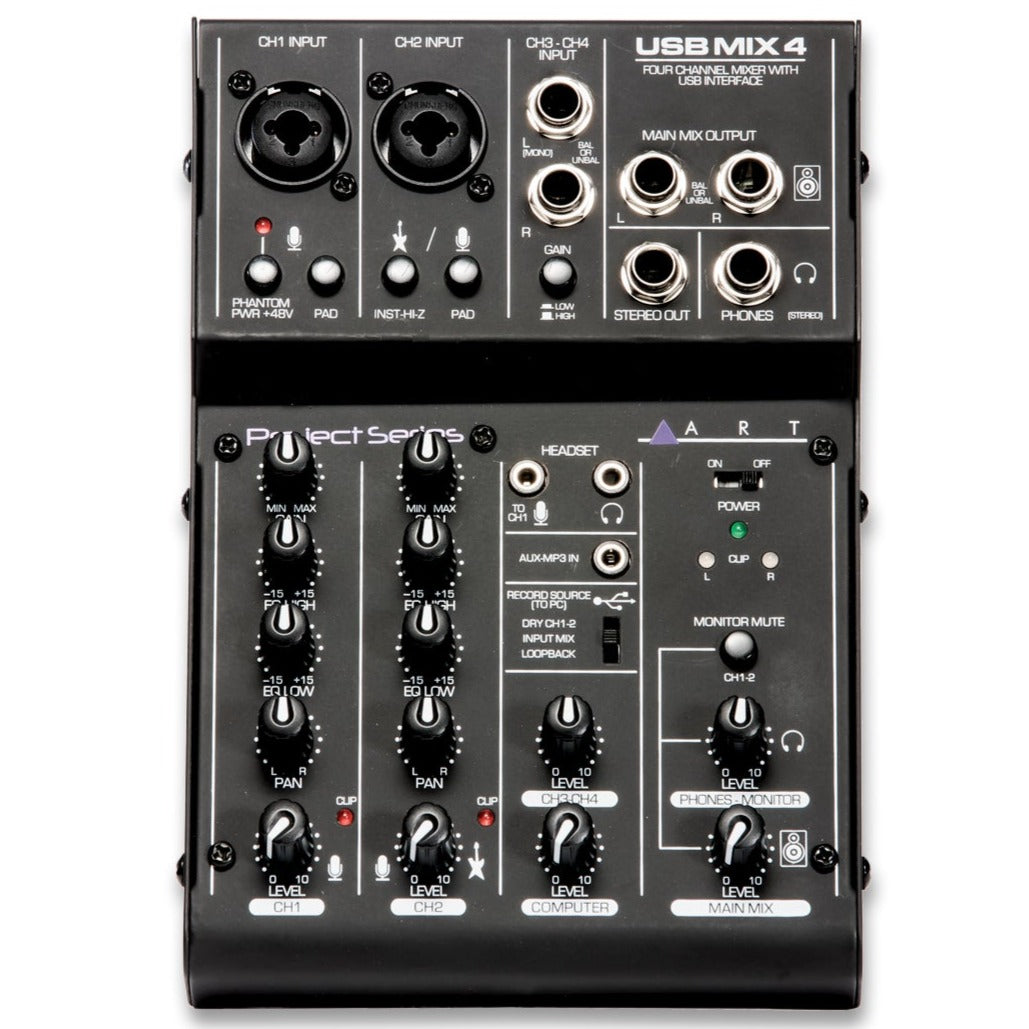

The mixer section has four channels. Channels 1 and 2 have combo inputs for XLR and 1/4 signals, and 2-band EQ for tone shaping. Channel 1 also has switchable phantom power for use with condenser microphones, and Channel 2 has a switchable Hi-Z mode so you can directly connect an instrument level signal from a guitar or bass. Channels 3 and 4 are configured as a stereo pair.

In addition to the standard connections, there are dedicated jacks for a headset mic and media player. A convenient switch on the front panel lets you select the source for the stereo audio interface. Choose from the full stereo mix, only channels 1 and 2, or a loopback mode that combines the mixer inputs with the audio playback from your computer to easily share everything youre hearing with your streaming audience.

Combining the familiar workflow of a traditional mixer with easy digital integration, the USB Mix 4 is a simple and intuitive foundation for home and mobile recording.

• High Performance Low Noise Design
• Switchable +48v Phantom Power (CH1)

• Assignable USB Record Source

• Independent Level Controls for Main and Headphone/Monitor Outputs

• 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)

• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC

• Operates on USB Power or 5VDC External Power Supply (Included)


• Input Connections
• XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2)
• ¼-inch TRS Balanced (CH3 & CH4)
• 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic
• Output Connections
• ¼-inch TRS Balanced Main Mix Outputs
• ¼-inch TRS Stereo Output & Monitor Outputs
• 1/8th-inch Headset Output
• Signal to Noise Ratio >90dB Typical (Ref 0dBu)
• Maximum Input Level +8dBu (Mic), +16dBu (1/4-inch Input)
• Maximum Output Level +15dBu Main Mix Outputs
• Maximum Gain >55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
• USB Computer Interface USB Class Compliant plug-and-play Mac / PC Interface

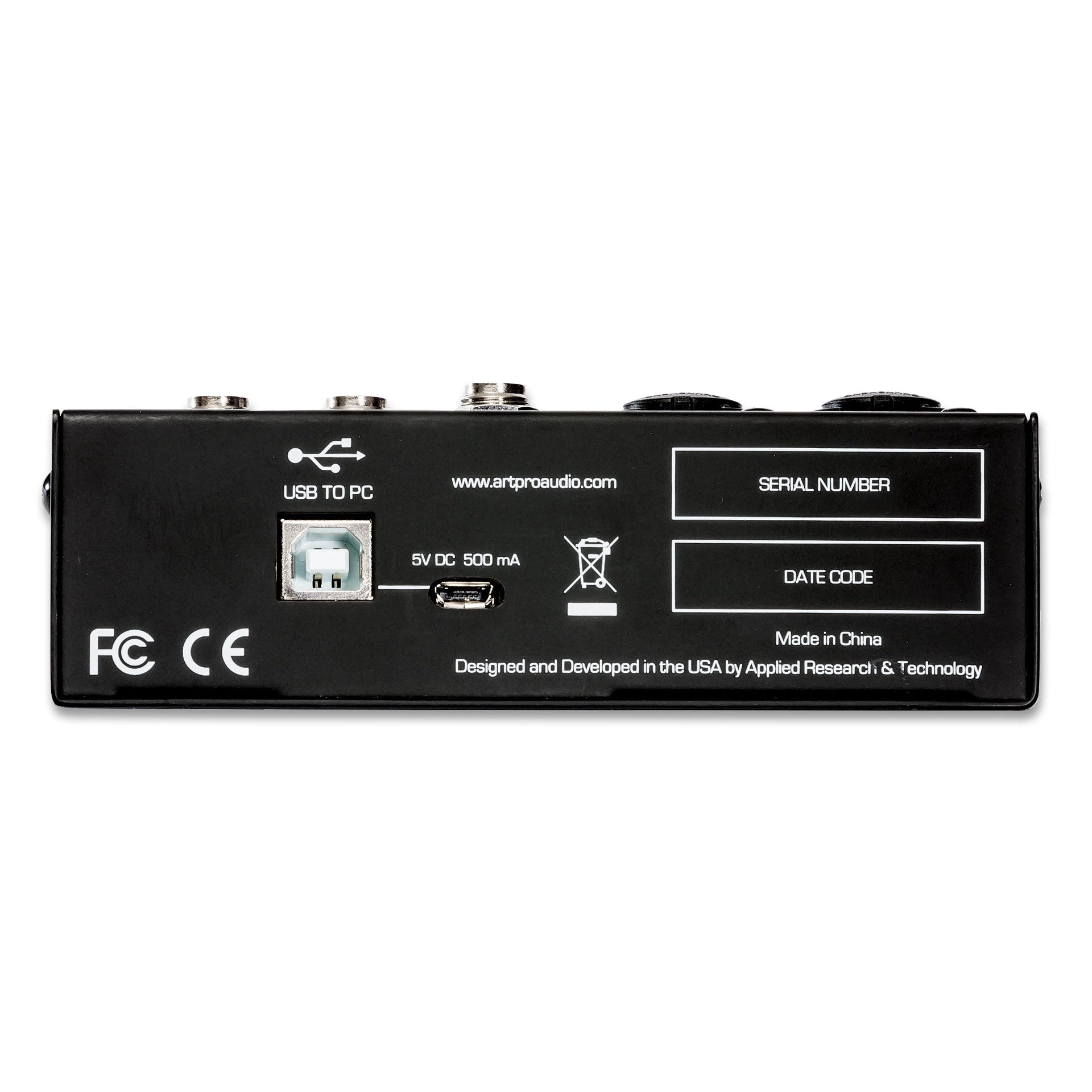

• Power Via USB or 5VDC @ 500mA
• Dimensions 1.75″H x 5.1″W x 7.5″D (45mm x 130mm x 191mm)
• Weight    1.56 lbs. / .71 kg
• Note    0 dBu = 0.775Vrms
