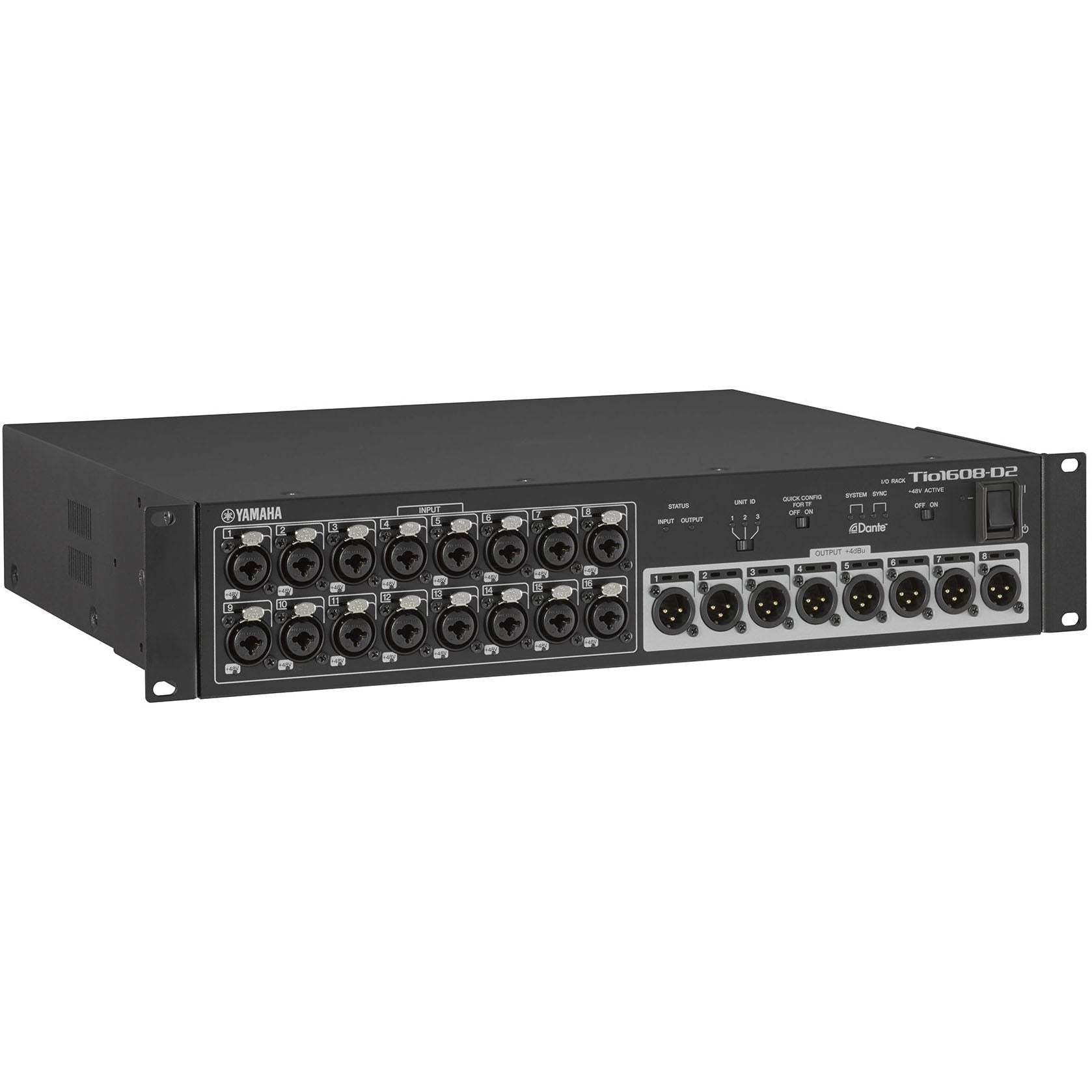

Yamaha TIO1608-D2 16-in/8-out Digital I/O Rack w/ 16 Mic Preamps & Dante

The Yamaha Tio1608-D2 is a simple, versatile, and high-definition Dante-equipped stagebox (I/O rack) featuring 16 microphone/line inputs and 8 line outputs. It is designed to act as an ideal stagebox system for Yamaha's TF Series and DM3 consoles, allowing you to control microphone gain remotely. Because the Tio1608-D2 supports sample rates up to 96kHz, it is also highly scalable and perfect for use in large installations alongside professional-grade equipment like the RIVAGE PM or DME7 systems.

• Dante Network Audio Protocol: Uses the industry-standard Dante networking protocol to deliver low latency, low jitter, and high sampling accuracy audio over standard IT networks.
• Fast and Easy Configuration: Setup is effectively "Plug & Play." By using the "QUICK CONFIG" function on TF Series consoles or the "AUTO CONFIG" function on the DM3, network settings and audio patches are configured automatically by simply connecting the devices with a standard Cat5e Ethernet cable.
• Recallable D-PRE Preamplifiers: Inherits Yamaha's highly regarded D-PRE microphone preamplifiers from the TF Series. These preamps deliver a consistent, natural, and highly musical sound, and their settings can be stored and recalled directly from the mixing console.
• Simple and Flexible Input Selection: Inputs can be assigned uniformly in an instant directly from the screen menu of your connected mixing console, allowing for quick routing and flexible setups.
• Daisy Chaining: You can connect up to three Tio1608-D2 units to a TF series console (via the optional NY64-D expansion card) or a single unit to a DM3 console.

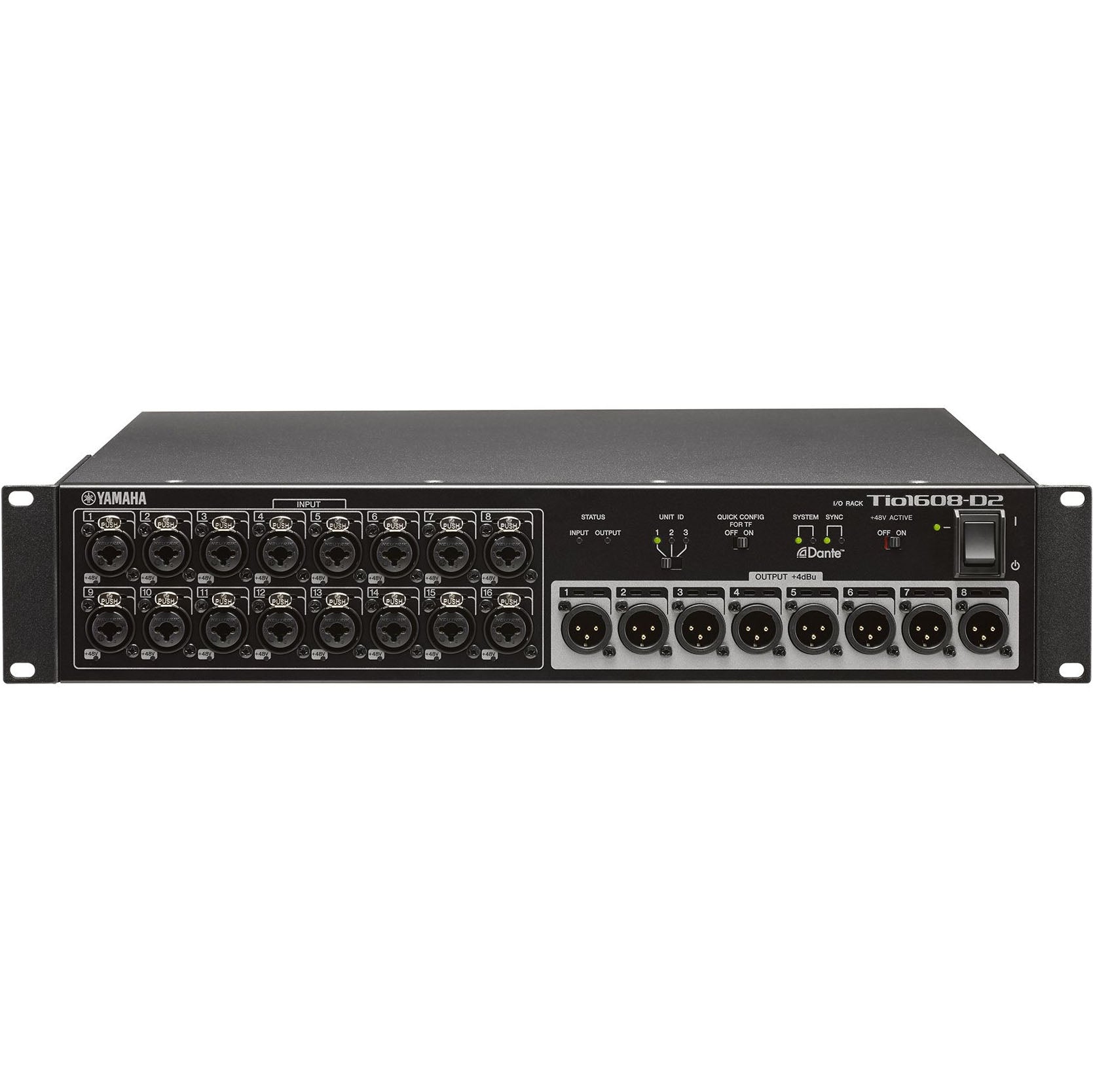

• Inputs & Outputs:
  • Analog Inputs: 16 Mic/Line Combo Jacks (XLR/TRS) with +48V phantom power (software switchable)
  • Analog Outputs: 8 XLR (Balanced) Line Outputs

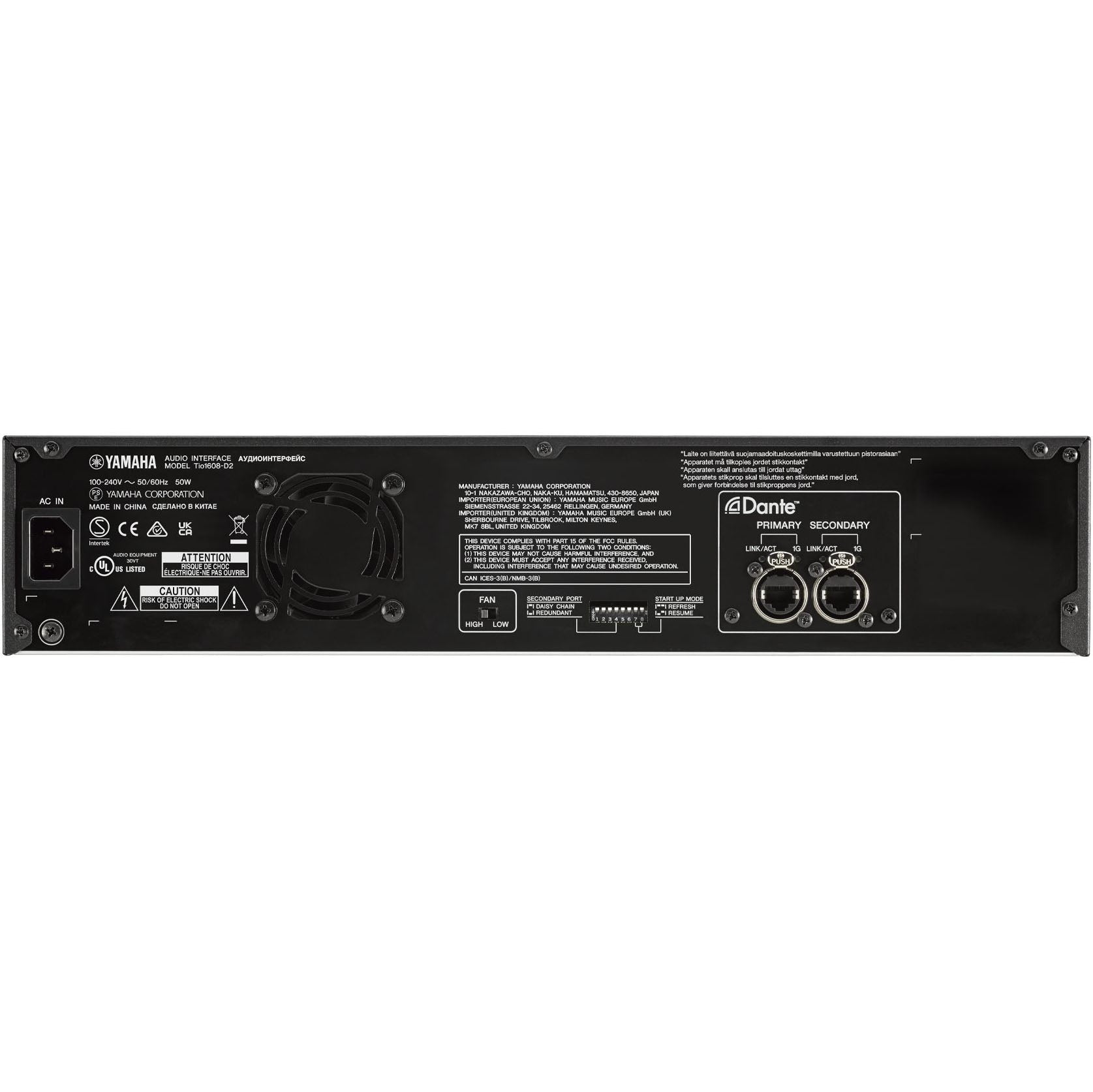

  • Digital I/O: Primary and Secondary Dante ports (etherCON Cat5e, 1000Base-T, 24-bit or 32-bit)
• Audio Specs:
  • Sampling Frequency Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Signal Delay (Latency): Less than 1.3ms (INPUT to OUTPUT, connected with DM3 at 96kHz)
  • Frequency Response: +0.5, -1.5 dB (20Hz to 20kHz)
  • Dynamic Range: 108 dB (INPUT to OUTPUT), 110 dB (DA Converter at 96kHz)
  • Equivalent Input Noise: -128 dBu (Measured with A-weighting filter)
  • Crosstalk: -100 dB (adjacent channels)
• Physical & Power Specs:
  • Power Requirements: 100-240V, 50/60Hz
  • Power Consumption: 50W
  • Dimensions (W x H x D): 480mm (18.9”) x 88mm (3.5”) x 364mm (14.4”)
  • Net Weight: 5.7kg (12.6 lbs)
  • Accessories Included: Owner's Manual, Power Cord (2.5m), Rubber stoppers (4)
