Warm Audio WA-C1 Stereo Chorus & Vibrato Pedal With Depth & Rate Controls

The Original Chorus Tone That Set Standard
WA-C1 has all of the vintage tones, functionality, and vibe of the famous original chorus/vibrato pedal with added controls to separate rate and depth and brighten the tone. Like the lauded original, WA-C1 has a dedicated vibrato section, and an always-on 100% analog preamp that adds tons of analog tone and character. The carefully designed circuit helps bring the vintage depth of the modulation when turned all the way up, and also allows the WA-C1 to have variable depth to dial back for subtle tones. True to the original pedal, WA-C1 delivers rich depth and wobbly rate in waves, favored by legendary musicians like The Police, Queen, Stone Temple Pilots, Rush, Red Hot Chili Peppers, and more.

Deeper, Richer, Bigger: Chorus & Vibrato Tone
The WA-C1 delivers lush midrange depth and detail associated with proper Bucket Brigade Device analog chorus pedals. On vintage units, “intensity” increased the speed of the LFO with the triangle wave shape, impacting the delay time of the BBD chip and creating a more lush tone and faster rate. With the WA-C1, you can go beyond the limitations of vintage pedals by dialing in more subtle depth and the same varying rates for a larger palette of chorus tones. When engaging the hi-z, the chorus instantly transforms from a 70s color to an 80s color, with added upper-mids and treble. Engaging the “high” input sensitivity setting can be used to add headroom and clarity to the overall pedal tone. WA-C1 adds a flashing LED for effect monitoring on the face showing which setting is engaged along with the rate of the modulation. A true-to-original recreation, WA-C1 is 100% analog, using premium components like the MN3007 Xvive BBD chip.

Electric Guitar

• Dark 70s-Style Chorus
  • The original “darker” chorus tone, just like the most lush late-70s modulated guitar tones.
  • Pristine 80s Chorus
  • Crystal-clear new-wave style 80s guitar chorus with pristine note separation.
  • Rotary-Style Subtle Vibrato

  • Just a bit of wobble & depth help guitar picking parts and solos stand out.

Electric Keys

• Leslie-Style Chorus
  • Added 3D modulation creates depth and wobble to various types of electric keyboard sounds.

• 100% Analog Stereo Chorus & Vibrato Pedal With Depth & Rate Controls & Selectable Impedance

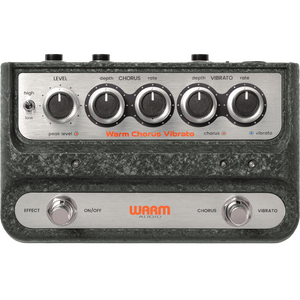

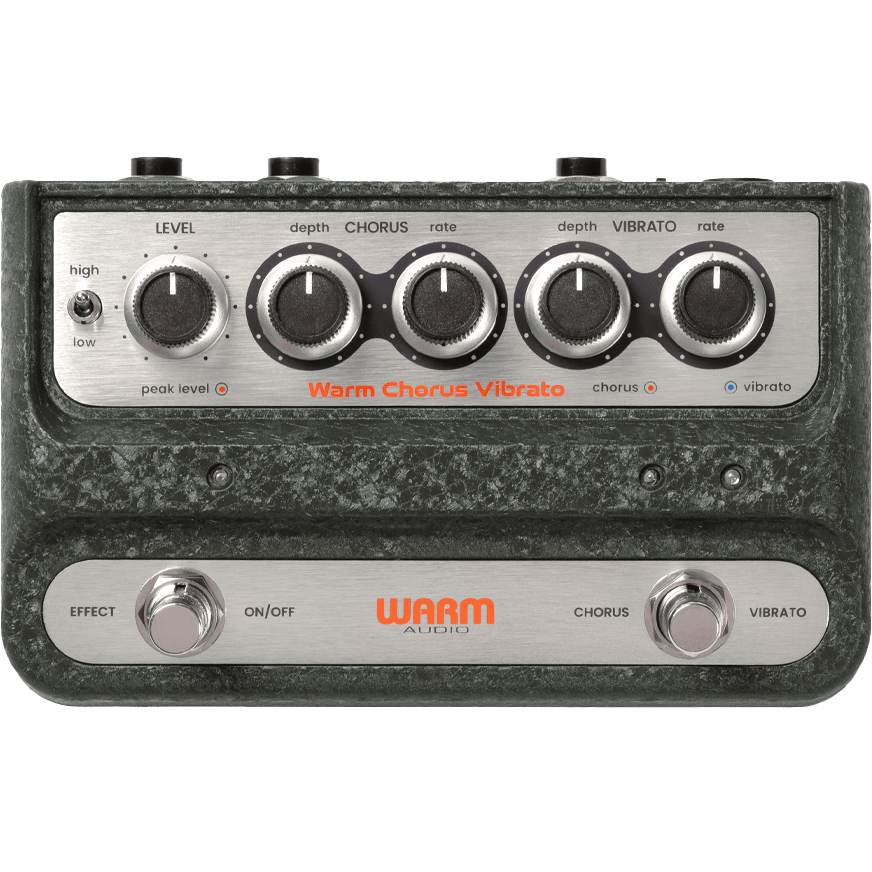

• Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Hi-Z On/Off.

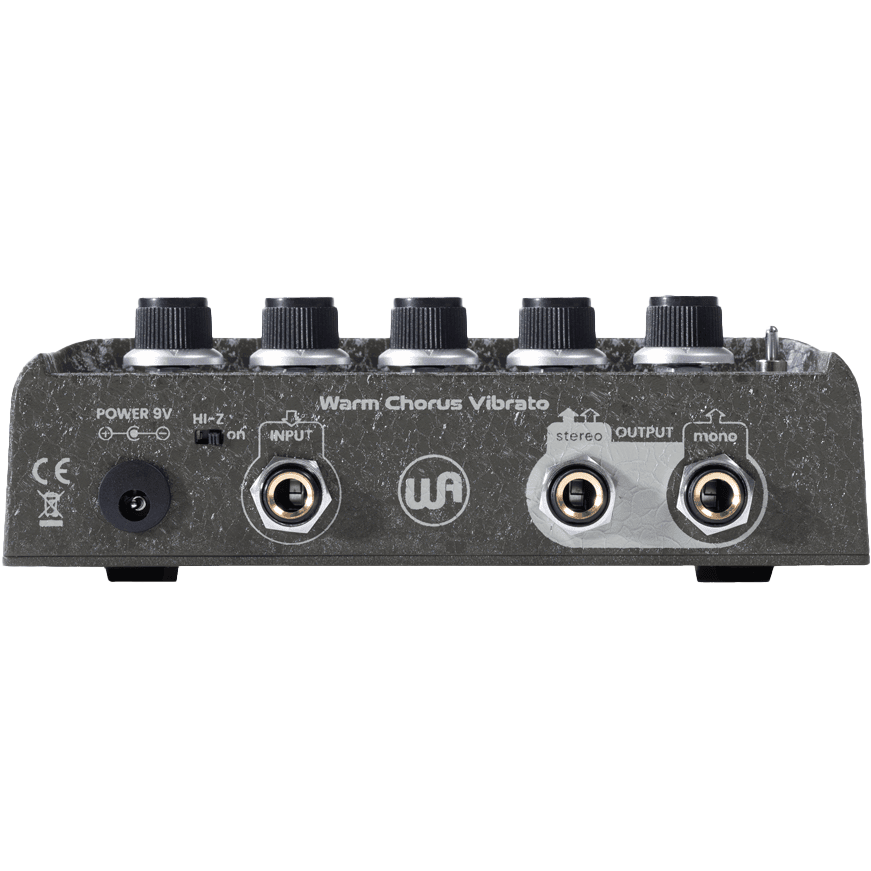

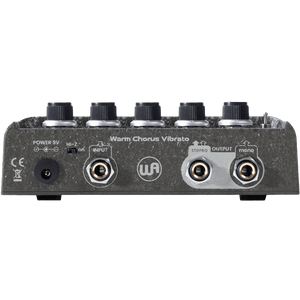

• Jacks: (1X) Input, (2X) Outputs
• Dimensions: W: 6.5” |  H: 3.8” |  D: 1.6” | Weight: 1.9 lbs
• Components: (5X) IC’s (Including 3X Texas Instruments Premium Audio Op Amps In Signal Path) | (11X) Discrete Transistors | (3X) FETs | (19X) Diodes 2 x MOSFETs and a premium Xvive MN3007 BBD chip recreation.
• Power consumption: 800mW; 90mA at 9V With Vintage-Correct Internal Voltage Operation Via Dual DC-DC Voltage Converter
• Input sensitivity: 80mV /1 0mV
• Output level: 315mV
