Warm Audio PEDAL76 All-Analog Transformer-Balanced FET Compressor Pedal

Classic Studio Compression Recreated For Your Pedalboard
Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.

Studio-Quality Sound, Stage-Ready Control
To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.

Electric Guitar

• Squishy Funk & Chicken Pickin': Smash any light playing and make transients stick out without losing low end.
• Lead & Solo Sustain:
• Add sustain to bends and lead tones for epic solos that sit on top of the mix.
• Pristine Drive & Rhythm Tone:  Level out arpeggios and add clarity to picked notes and rhythm guitar, whether clean or driven.

Electric Bass

• Big Studio Bass: Add growl and grit, shape slaps and transients, and deliver studio bass tone on any stage.

• All-Analog Transformer-Balanced FET Compressor Pedal

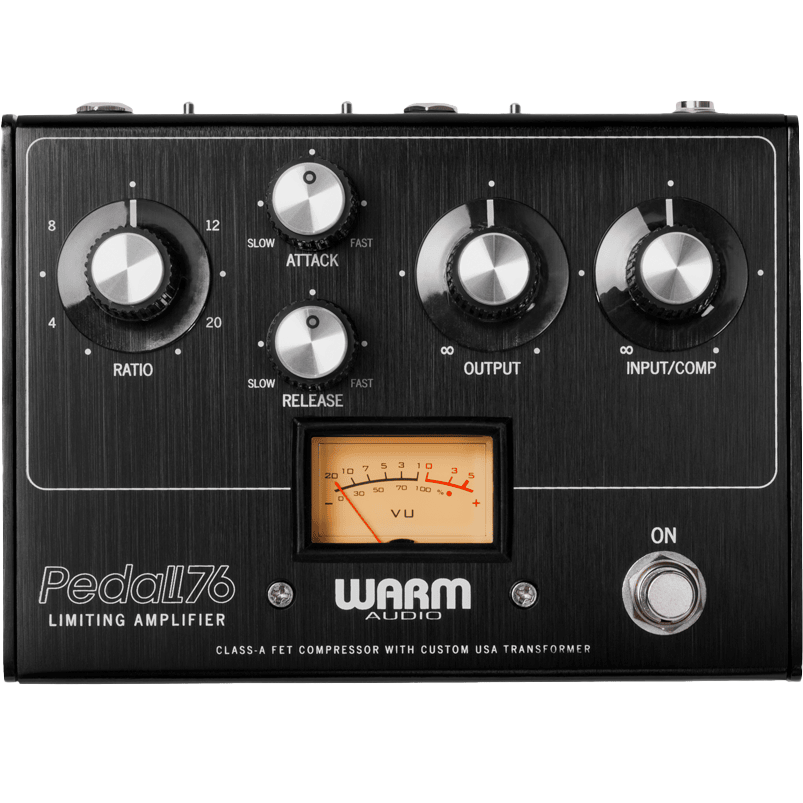

• Classic 76-Style Compression Controls: Ratio, Attack, Release, Output, & Input

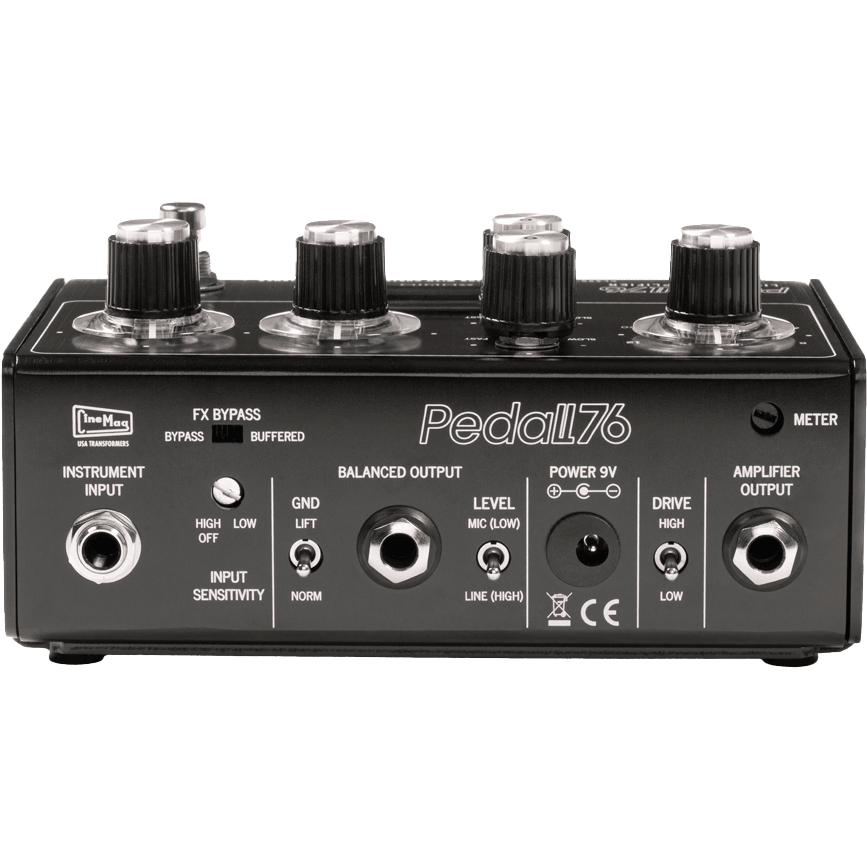

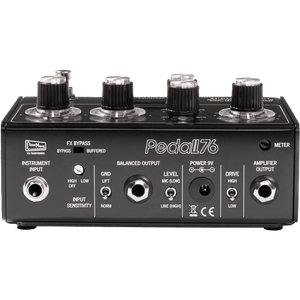

• Additional Controls: Input Sensitivity, Ground/Lift, DI Output Pad, DI High/Low Gain With Level Boost On Balanced Output
• External True Or Buffered Bypass Switch
• Vintage-Style Amber VU Meter For Gain Reduction Indication
• External Power Supply With 9V Battery Compartment. External Power Supply Leverages Internal Voltage Increase Via DC-DC Voltage Converter
• Dimensions: 5.9” x 4.1” x 1.9” | Weight: 1.65 lbs
• Custom CineMag USA Output Transformer (Engaged With External Power)
• Ultra Low-Noise With 100% Discrete Analog Signal Path
• When Using External Power, Pedal76 Requires 125mA
