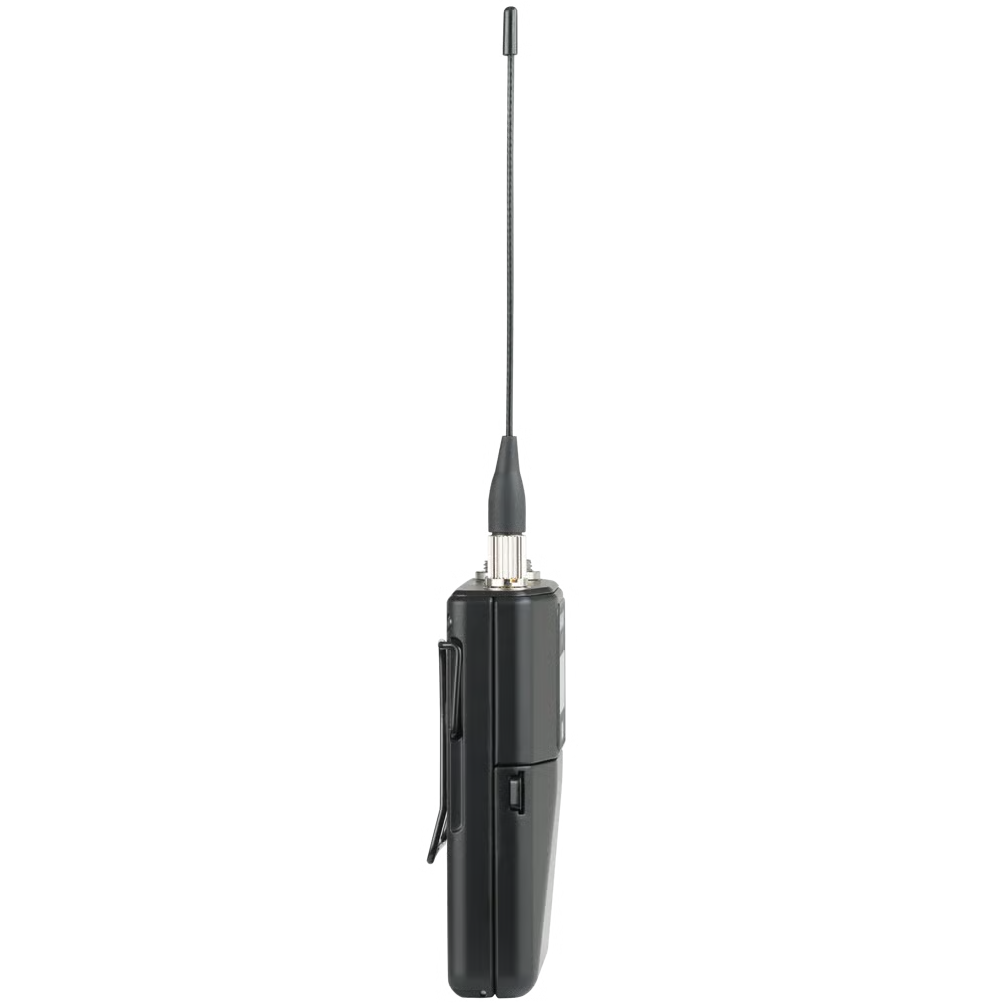

Shure ULXD1=-G57 Bodypack Transmitter

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• AES 256-bit encryption for applications for which secure transmission is needed

• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments

• Optional Shure SB900C lithium-ion rechargeable battery provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect

• External charging contacts for docked charging (with the SBC200 and SBC220
• Dual Docking Charger)

• Backlit LCD with easy to navigate menu and controls

• Rugged metal construction

• Detachable ¼ wave antenna

• Frequency and power lockout

Core Performance

• Audio Quality: 24-bit/48 kHz digital audio with a 20 Hz – 20 kHz frequency range.
• Dynamic Range: Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for manual transmitter gain adjustments.
• Encryption: AES 256-bit encryption for secure transmission.
• RF Output Power: Selectable 1 mW, 10 mW, or 20 mW (region-dependent).
• Range: Up to 100 meters (300 feet) line-of-sight.

Connectivity & Hardware

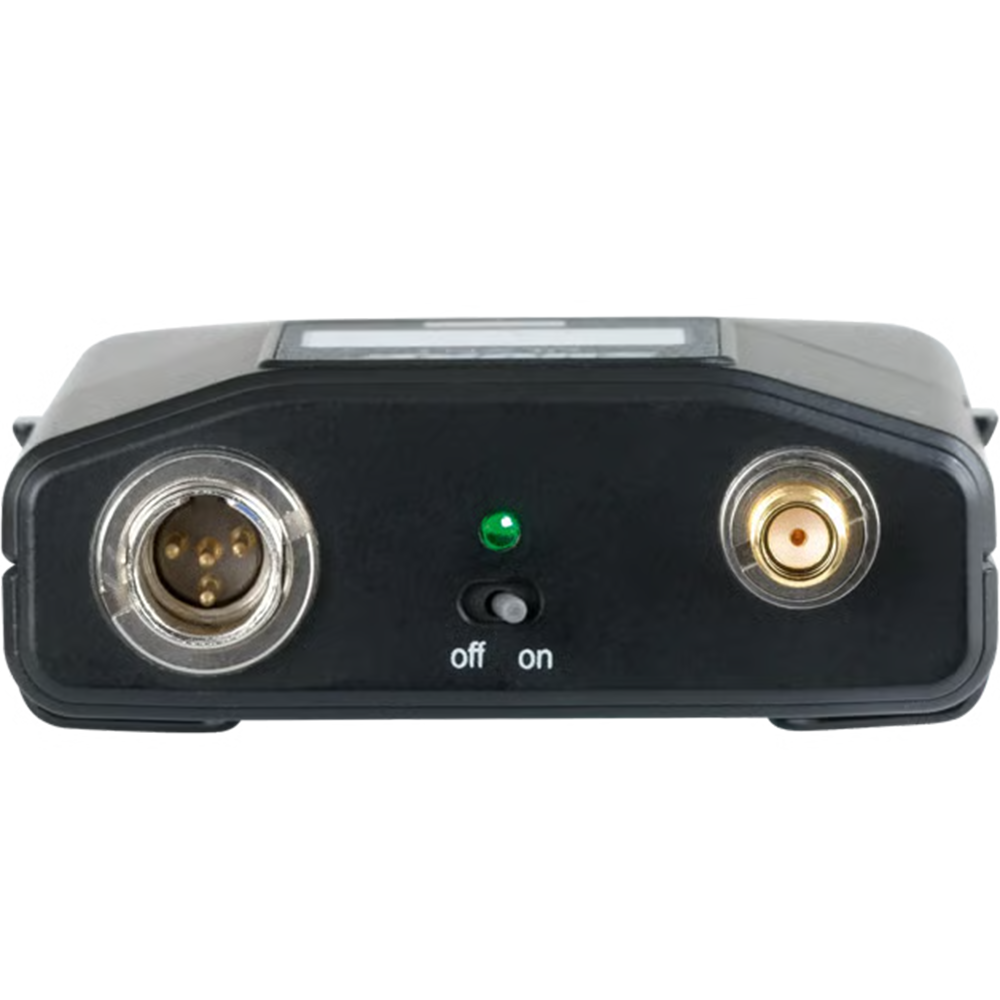

• Connector Type: Available with either a 4-pin TQG (TA4F) or LEMO3 connector.
• Construction: Rugged, lightweight aluminum housing.
• Antenna: Detachable ¼ wave antenna.

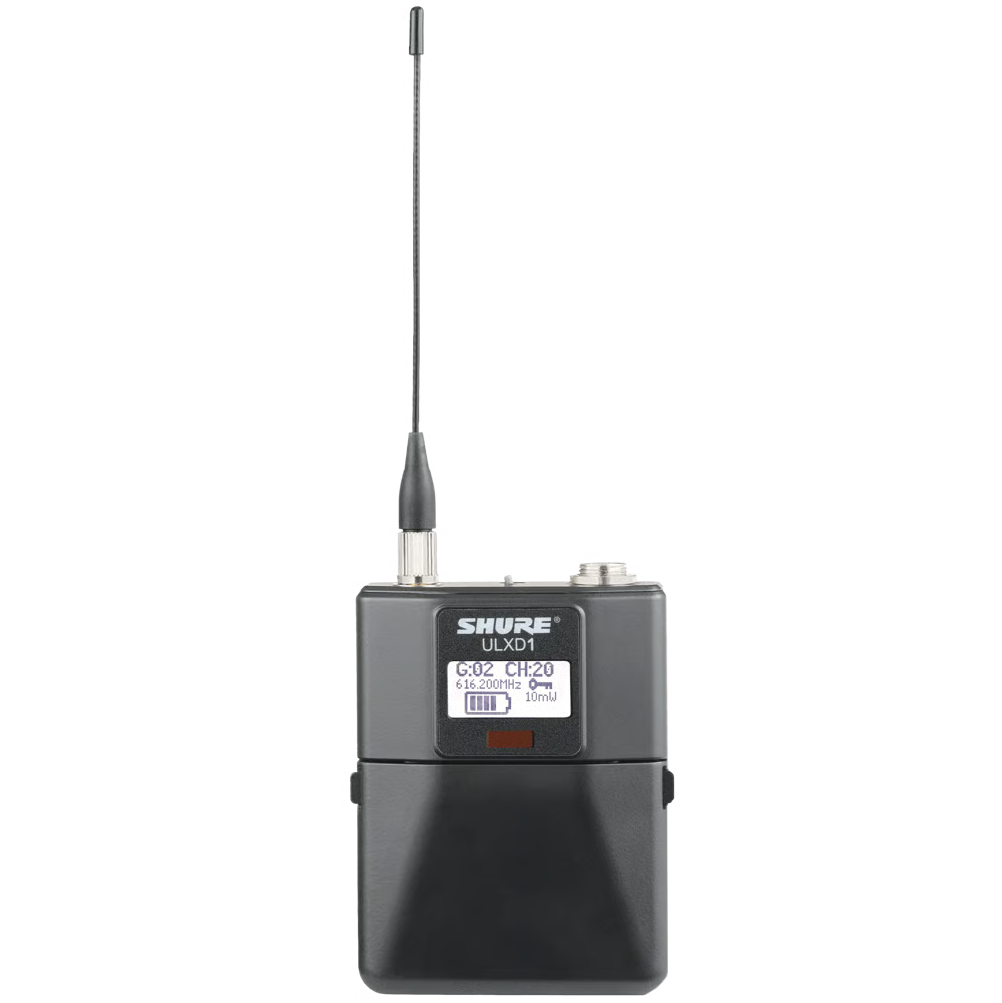

• Display: Backlit LCD with easy-to-navigate menu and controls.
• Mute Mode: Allows the On/Off switch to be repurposed as a mute switch, preserving RF channel presence.

Power & Rechargeability

• Battery Options:
  • Compatible with Shure SB900 series lithium-ion rechargeable batteries (up to 9+ hours of runtime).
  • Backwards compatible with standard AA alkaline batteries.
• Metering: Provides battery life metering in hours and minutes (accurate to within 15 minutes) when using Shure rechargeable batteries.

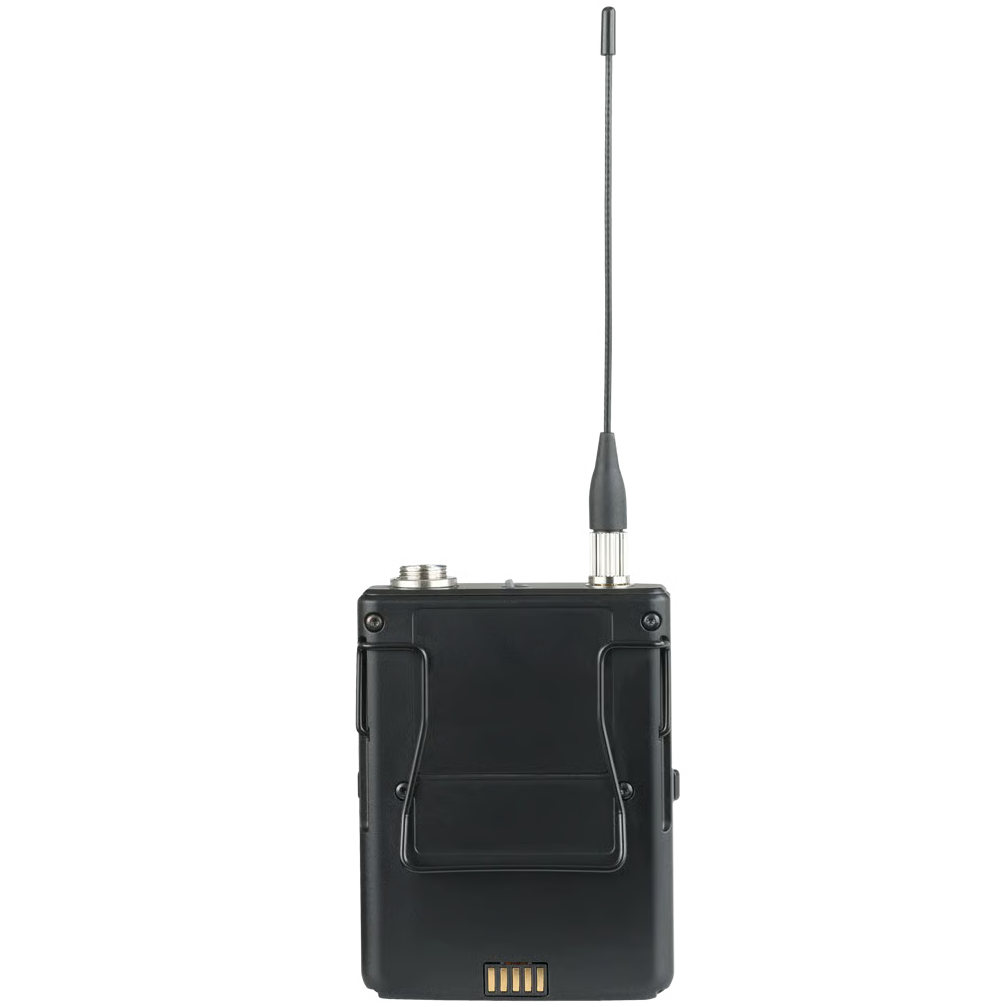

• Charging: External charging contacts for docked charging with compatible stations (e.g., SBC200 or SBC220).

Controls & Security

• Lockout: Frequency and power lockout options to prevent accidental changes during use.
