Shure SLXD24D/SM58-G58 Dual Digital Wireless System w/ 2-SLXD2/SM58 Handheld Transmitters, Band G58

Dual Wireless System with 2 SLXD2/58 Handheld Transmitters
Featuring two legendary SM58® Cardioid Dynamic Microphone capsules on SLXD2 handheld wireless transmitters, the SLXD24D/SM58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

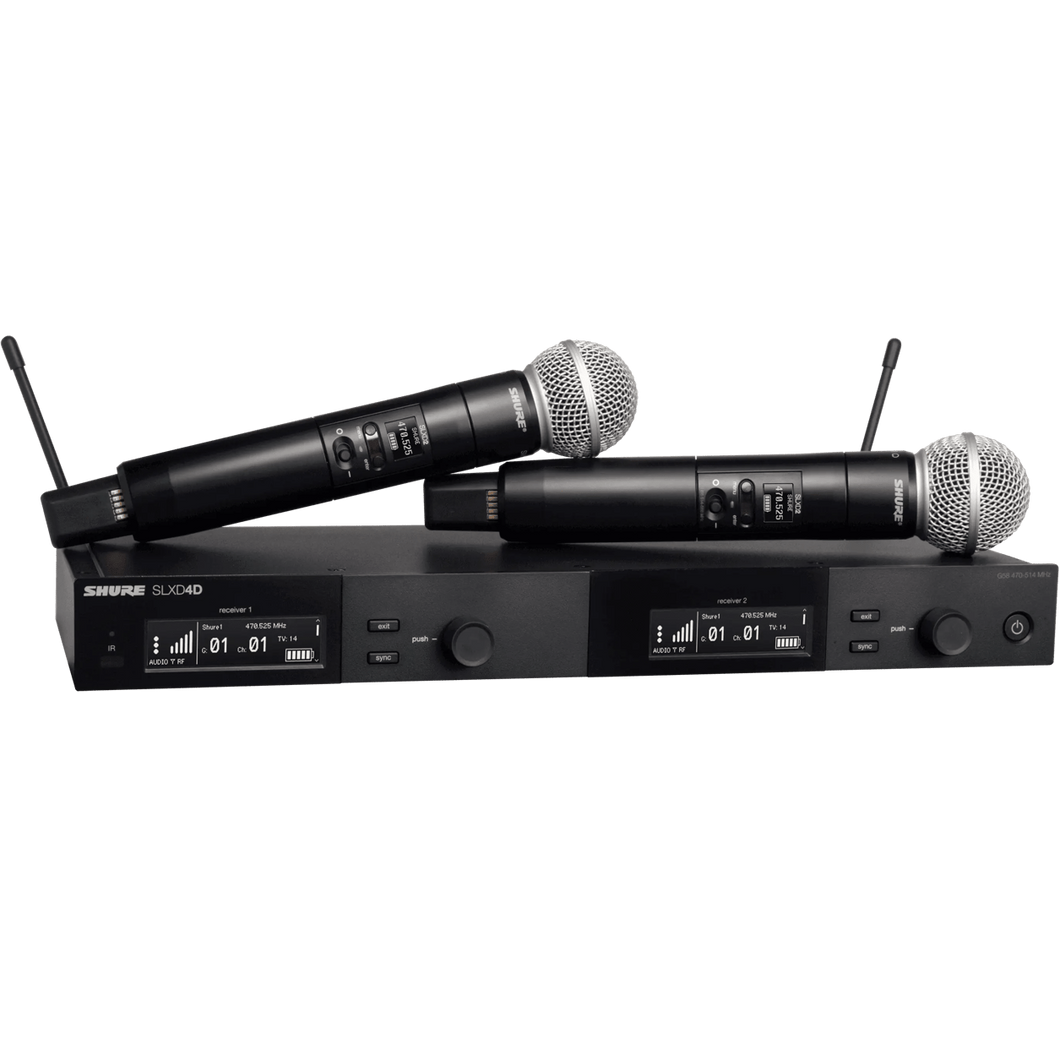

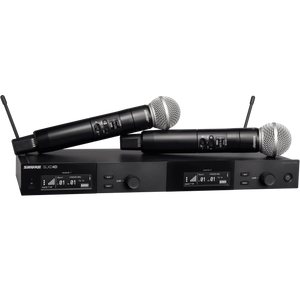

The SLXD24D/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4D dual-channel receiver and two SLXD2/SM58 handheld transmitters with antenna and rackmount accessories and 4 AA batteries.

System

• Wireless Technology: Digital UHF
• Diversity: Yes
• RF Frequency Band: G58 (470 to 514 MHz)
• Number of RF Channel Frequencies: 1760
• Max Operating Range: 328 ft / 100 m
• Max Transmitters per Band: 32
• Dynamic Range: 120 dBA (Typical)
• Latency: 3.2 ms
• Encryption: No
• Built-In Recorder: No
• Timecode Support: No
• Mobile App Compatible: Yes (Android & iOS)
  • App Name: ShurePlus Channels
  • Functionality: Remote Control

Receiver

• Type: Tabletop/Rack-Mountable
• Mounting Options: Rackmount with included hardware (1U)
• Antenna: 2x Removable BNC 1/4 Wave External (Rear-Mount)
• Number of Audio Channels: 2
• Audio I/O:
  • 2x XLR 3-Pin Balanced Mic/Line Output
  • 2x 1/4" TRS Balanced Output
• Network I/O: 1x RJ45 (Manual IP, DHCP)
• USB/Lightning Connectivity: No
• Gain Range: 0 to +21 dB (3 dB Steps)
• Frequency Response: 20 Hz to 20 kHz (+1/-2 dB, dependent on mic)
• Display: Backlit LCD
• Power Requirements: AC/DC Power Adapter

Transmitter

• Included Transmitters: 2x Handheld
• RF Output Power: 10 / 1 mW (Selectable)
• Antenna: Internal Single-Band Helical
• Input Level: Microphone
• Audio I/O: None
• USB I/O: None
• Muting: No
• Gain Range: 0 to +21 dB
• Auto-Level/Gain: No
• Frequency Response: 20 Hz to 20 kHz (dependent on mic)
• Sync Method: IR
• Display: OLED

Microphone

• Type: Handheld with Interchangeable Capsule (SM58 Included)
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz to 15 kHz
• Max SPL: 146 dB
• Sensitivity: -54.5 dBV/Pa
• Color: Black

Power

• 2x AA (Included) or 1x Shure SB903 (Not Included)
• Transmitter Battery Life:
  • 8 Hours (Lithium Shure SB903)
  • 8 Hours (Alkaline)
• Battery Charging Time: 1.25 to 5.5 Hours
• AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
• Input Power: 100 to 240 VAC, 60 / 50 Hz

Physical

• Environmental Resistance: No
• Housing: Transmitter: Aluminum; Receiver: Metal
• Dimensions:
  • Receiver: 7.8 x 1.7 x 6 in
  • Transmitter: 1.5 x 6.9 in
  • Mic Capsule: 2.0 in
• Weight:
  • Receiver: 3.1 lb
  • Transmitter: 5.2 oz
