Shure GLXD24+/SM58-Z3 Dual-Band Digital Wireless Microphone System w/ SM58

Dependable Wireless Audio that Anyone Can Use
The Shure GLXD24+ is a digital wireless handheld microphone system that offers reliability and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your performances, presentations, conferences, and events at a typical range of up to 100' indoors and 65' outside.

• System
• Wireless Technology Digital 2.4 GHz/5.8 GHz
• Included Transmitters 1 x Handheld
• Diversity True Digital Diversity
• RF Frequency Band Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
• RF Bandwidth 208.5 MHz
• RF Channel Scanning Auto-Scan
• Max Operating Range 100' / 30.5 m (Line of Sight)
• Max Transmitters per Band 8
• Built-In Recorder No
• Timecode Support No
• Mobile App Compatible No
• *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
• Latency 4.5 to 8 ms
• Dynamic Range 120 dBA
• Encryption None
• Modulation Proprietary

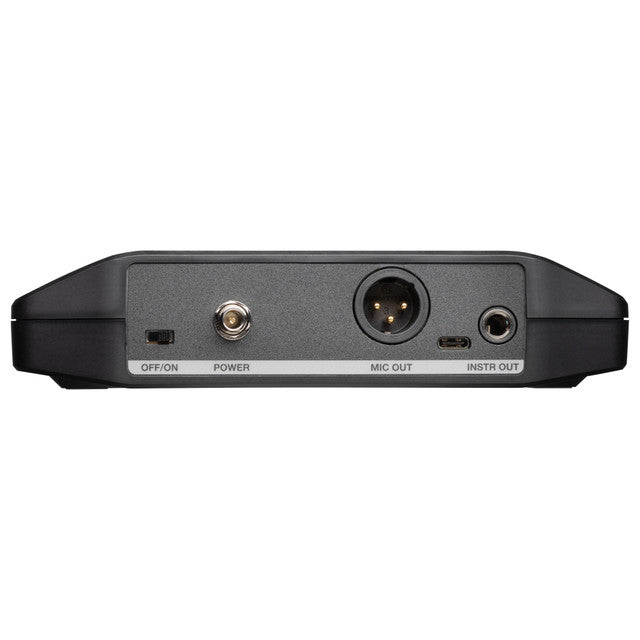

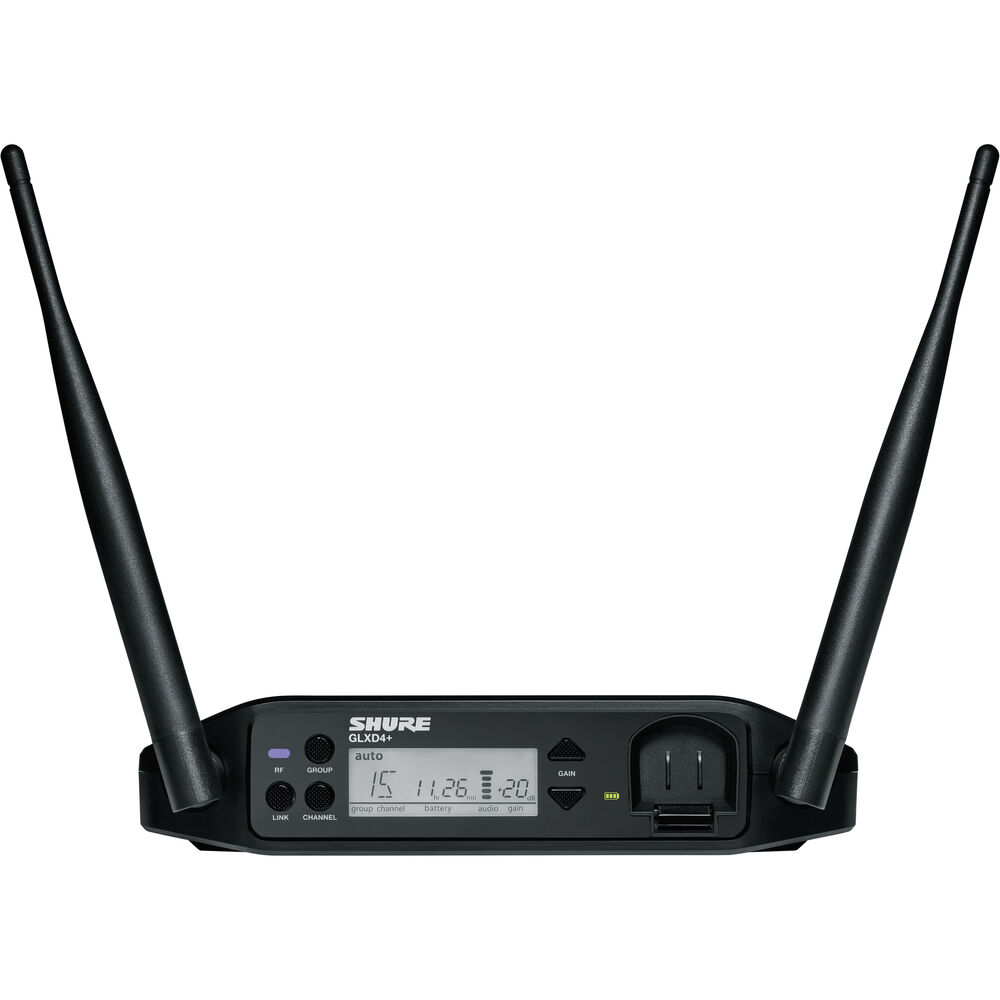

• Receiver
• Receiver Type Tabletop
• Antenna 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
• Number of Audio Channels 1
• Audio I/O
• 1 x XLR 3-Pin Male Balanced Mic/Line Output
• 1 x 1/4" TRS Female Balanced/Unbalanced Output
• Audio Output Level
• XLR Output:
• +1 dBV
• 1/4" Output:
• +8.5 dBV
• Phantom Power Protection On 1/4", XLR Outputs
• Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
• Network I/O None
• Word Clock I/O None
• USB/Lightning Connectivity 1 x USB-C Female (Firmware Update)
• Impedance
• XLR Output:
• 100 Ohms (Balanced)
• 1/4" Output:
• 100 Ohms (Balanced)
• 50 Ohms (Unbalanced)
• RF Output Power 10 mW (EIRP, Max)
• Spurious Rejection: >35 dB
• Power Requirements AC/DC Power Adapter
• AC/DC Power Adapter 14.5 to 17 VDC at 600 mA (Included)
• AC Input Power 100 to 240 VAC, 50 / 60 Hz
• Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
• Housing ABS
• Operating Temperature 32 to 113°F / 0 to 45°C
• Dimensions 7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
• Weight 10.9 oz / 310 g
• Transmitter
• Transmitter Type Handheld
• RF Output Power 10 mW (EIRP)
• Audio I/O None
• Pad None
• Muting Off/On Switch
• Auto-Level Control No
• Gain Range -20 to +40 dB (1 dB Steps)
• Sync Method Proprietary
• Antenna 1 x External, Fixed (Handheld)
• Power Requirements Battery
• Battery Type 1 x Shure SB904 (Included, Replaceable)
• Internal Battery Capacity 2420 mAh
• Battery Charging Time .25 to 3 Hours
• Approx. Battery Life 12 Hours (Lithium Rechargeable)
• USB/Lightning I/O 1 x USB-C (Charging)
• Display & Indicators 1 x LED (Battery Status, Sync)
• Housing Metal, Plastic
• Dimensions 2 x 9.7 x 1.5" / 51 x 246 x 37 mm (without Antennas)
• Weight 9.7 oz / 275 g (without Batteries)
• Microphone
• Microphone Type Handheld
• Color Black
• Sound Field Mono
• Capsule Dynamic
• Polar Pattern Cardioid
• Frequency Range 50 Hz to 15 kHz
• Impedance 300 Ohms
• Sensitivity -54.5 dBV/Pa
• Packaging Info
• Package Weight 4.67 lb
• Box Dimensions (LxWxH) 18.8 x 13 x 4.2"
