Sennheiser XSW-1-CI1-A Wireless Instrument System, 1/4", AA Batt, Freq 548-572 MHz

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

• Compact bodypack transmitter, rugged instrument cable
• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

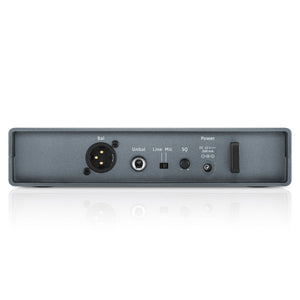

• 1 receiver EM-XSW 1
• 1 bodypack transmitter SK-XSW
• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Dimensions
• Receiver: approx. 200 x 42 x 127 mm
• Bodypack transmitter: approx. 71 x 96 x 28 mm
• THD, total harmonic distortion ≤ 0.9%
• Weight approx. 340g (receiver), approx. 95g (transmitter)
• Signal-to-noise ratio ≥ 103 dBA
• RF output power 10 mW
• Switching bandwidth up to 24 MHz
• Operating time approx. 10 hrs
• Modulation Wideband FM
• Power supply

• Receiver: 12 V DC nom. / 300 mA
• Transmitter: 2 AA size batteries, 1.5 V
• Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing Rugged ABS housing
• Frequency 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range

• A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation 130 dB
• Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity 1.5 mV / Pa
• AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range 45 dB, adjustable in 5-dB steps
• Line / Mic level 20 dB, switchable
• Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle double superheterodyne

• Diversity principle Antenna switching diversity via internal antennas
