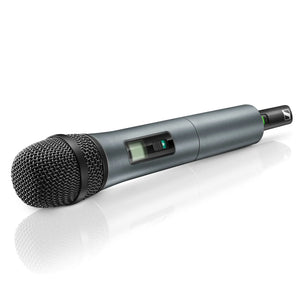

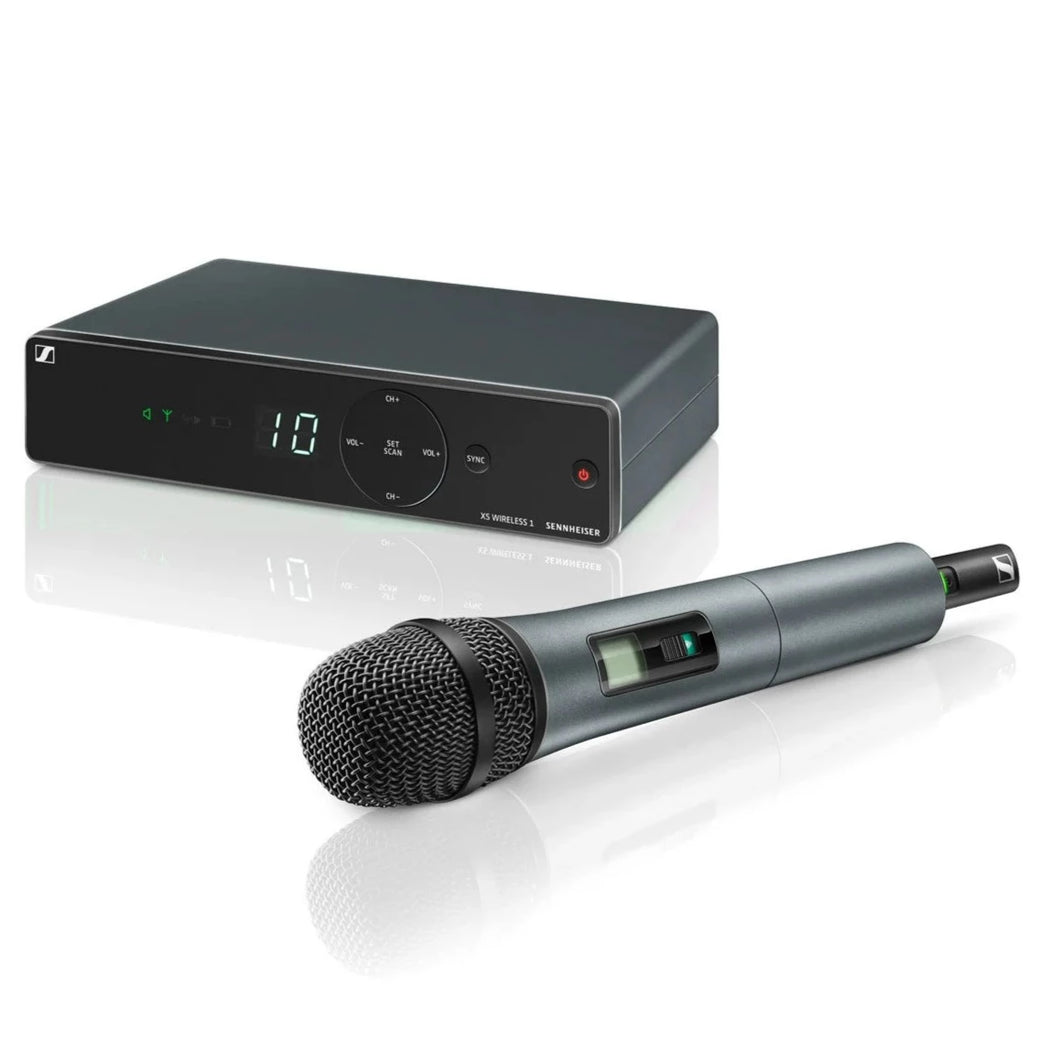

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Automatic Frequency Management so you can focus on your performance
We developed XS Wireless 1 for those that want to concentrate on the show and not so much on the gear. Simply turn on XSW 1 and let the Automatic Frequency Management do the rest. In optimal environments, you can operate up to 10 wireless connections simultaneously, all without having to search for frequencies or worry about interference.
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Dimensions: approx. 200 x 42 x 127 mm
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: wideband FM

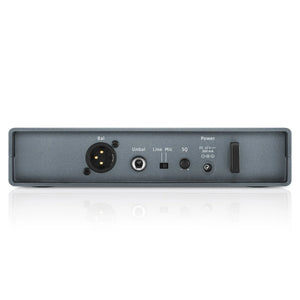

- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: rugged ABS housing
- Dynamic range: dynamic
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range:
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
