RF Venue DISTRO5HDR 5 Channel Antenna Distribution System for Wireless Microphones

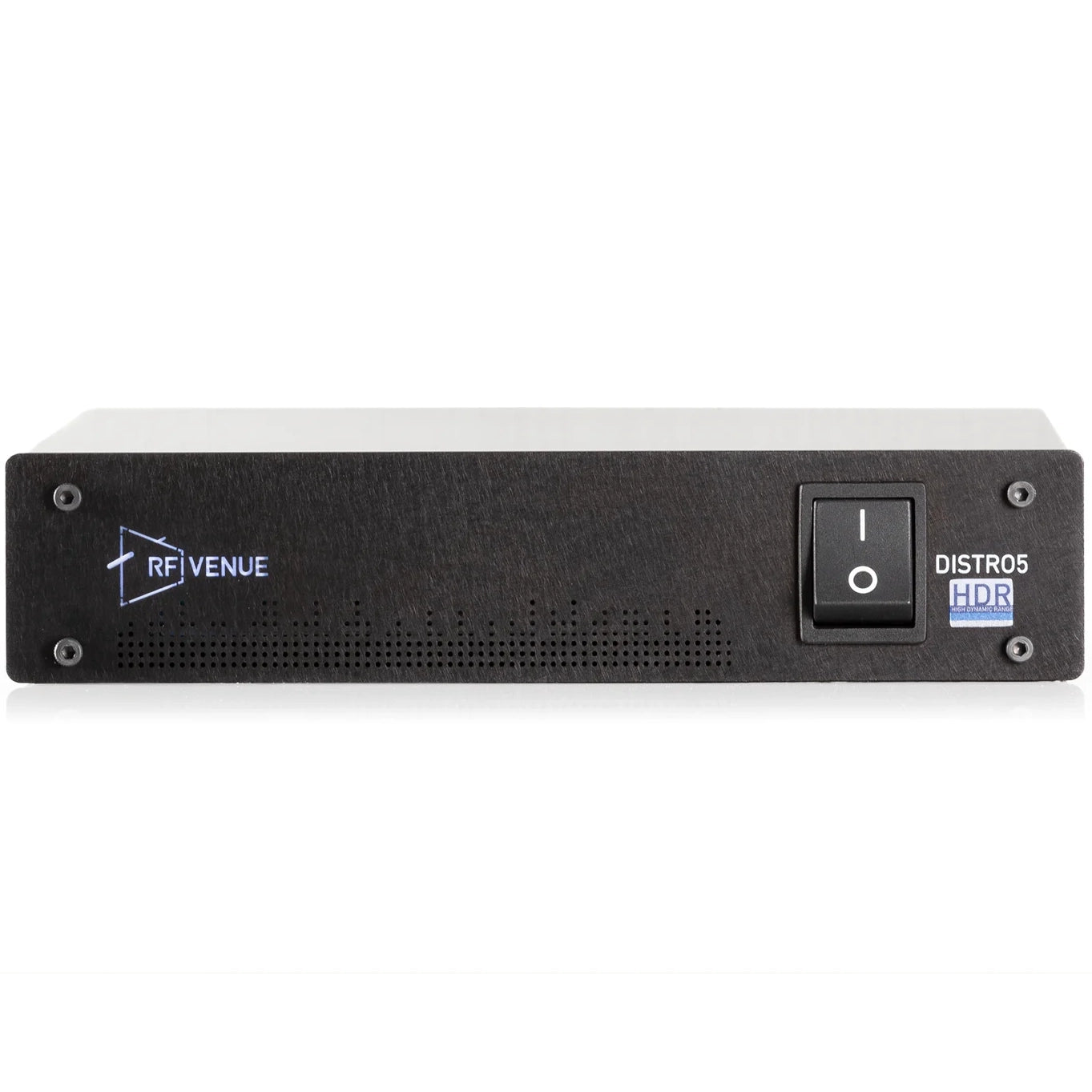

The RF Venue DISTRO5 HDR™ is a high-performance antenna and power distribution platform designed for any brand of wireless microphone system. Housed in a compact, half-rack enclosure, it distributes a single diversity antenna pair to up to five wireless receivers. The active circuitry utilizes RF Venue's High Dynamic Range (HDR) architecture, which maintains high linearity across a wide range of RF signal levels, significantly reducing distortion, lowering the noise floor, and opening up more usable channels. Beyond antenna distribution, the DISTRO5 HDR serves as a centralized 12V DC power hub, eliminating the need for bulky wall-wart power supplies in your equipment rack.

• High Dynamic Range (HDR)
  Advanced circuitry delivers exceptionally clean, low-noise RF performance and high linearity to combat distortion in demanding RF environments.
• 5-Channel Distribution
  One diversity antenna pair input feeds up to five diversity RF outputs.
• Cascadable Architecture
  Outputs can be cascaded to additional DISTRO5 HDR units, allowing you to easily support up to 9 channels in a single 1RU space, or expand up to 25 channels in larger setups.
• Centralized Power Hub
  The internal power supply provides 5A of 12V DC power to run multiple wireless receivers or other rack gear, cleaning up rack clutter and eliminating wall adapters.
• Compact Half-Rack Size
  Saves valuable rack space. It includes short and long rack ears, plus a joining plate to mount it alongside another half-rack unit (such as a second DISTRO5 or a COMBINE6 HDR).
• Battery-Ready Design
  Features an optional 12V DC input, making it adaptable for mobile broadcast carts or field production sound bags.

• Operating Frequency Range: 470 – 698 MHz

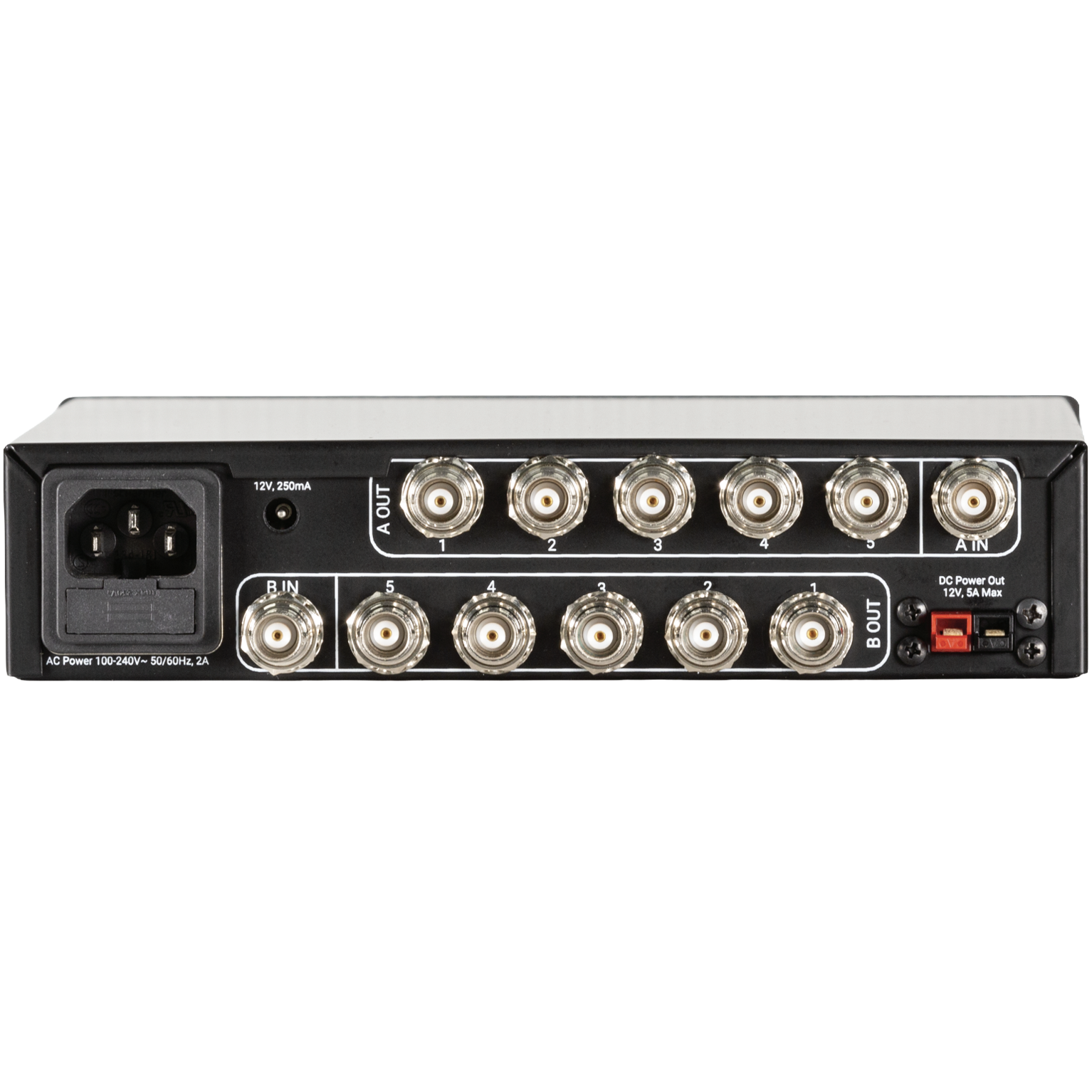

• RF Inputs: 1 Diversity pair (BNC)
• RF Outputs: 5 Diversity pairs (BNC)
• Impedance: 50 Ω
• AC Power Supply: Internal, 100 – 240 VAC, 50/60 Hz, 2 A
• DC Power Output: 12 V DC, 5 A maximum (via Anderson Powerpole® connector)
• DC Power Input (Optional): 12 V DC, 250 mA (for battery-powered operation)
• Fuse: T3 5A 240V
• Dimensions (D × W × H): 223.5 × 210 × 44.5 mm / 8.80 × 8.25 × 1.75 in.
• Weight: 1.7 kg / 3.7 lb.
• Included in the Box: DISTRO5 HDR unit, IEC power cord, set of rack ears (short and long), and a half-rack connecting plate with mounting hardware.
