RF Venue DFIN-IPX The Diversity Fin® IPX Antenna w/ IP44 Rating

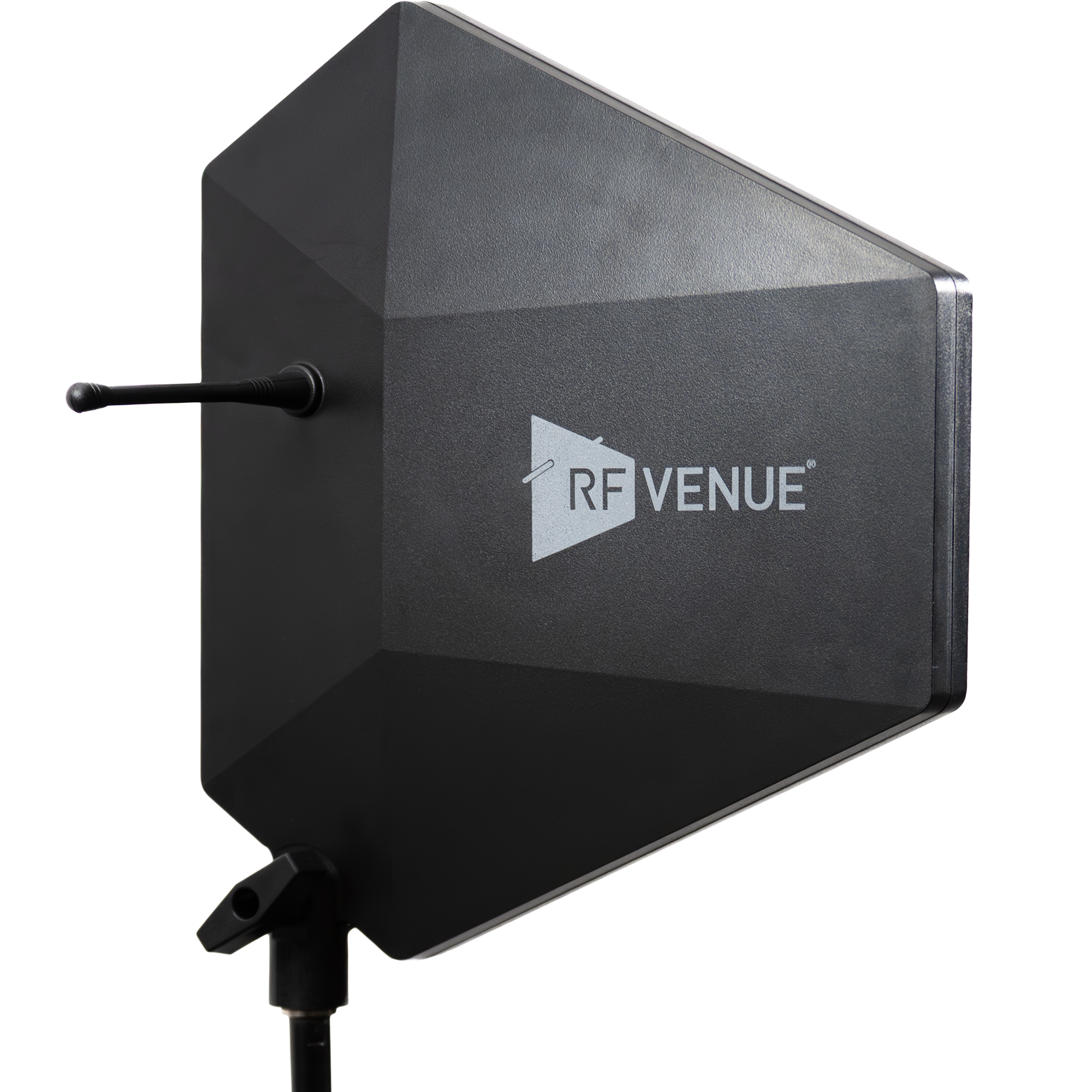

The RF Venue Diversity Fin IPX is a rugged, weather-resistant, multi-purpose antenna designed for wireless microphone systems and other UHF receivers utilizing diversity reception. It combines a directional log-periodic dipole array (LPDA) and a bidirectional dipole antenna into a single, IP44-rated enclosure. This patented cross-polarized design captures both vertically and horizontally polarized RF signals, effectively reducing multi-path interference and signal dropouts. Built for touring professionals, outdoor events, and permanent outdoor installations, the IPX replaces the need for two traditional "shark fin" paddle antennas, streamlining setup while delivering superior and reliable signal integrity in challenging environments.

• Patented Cross-Polarized Design

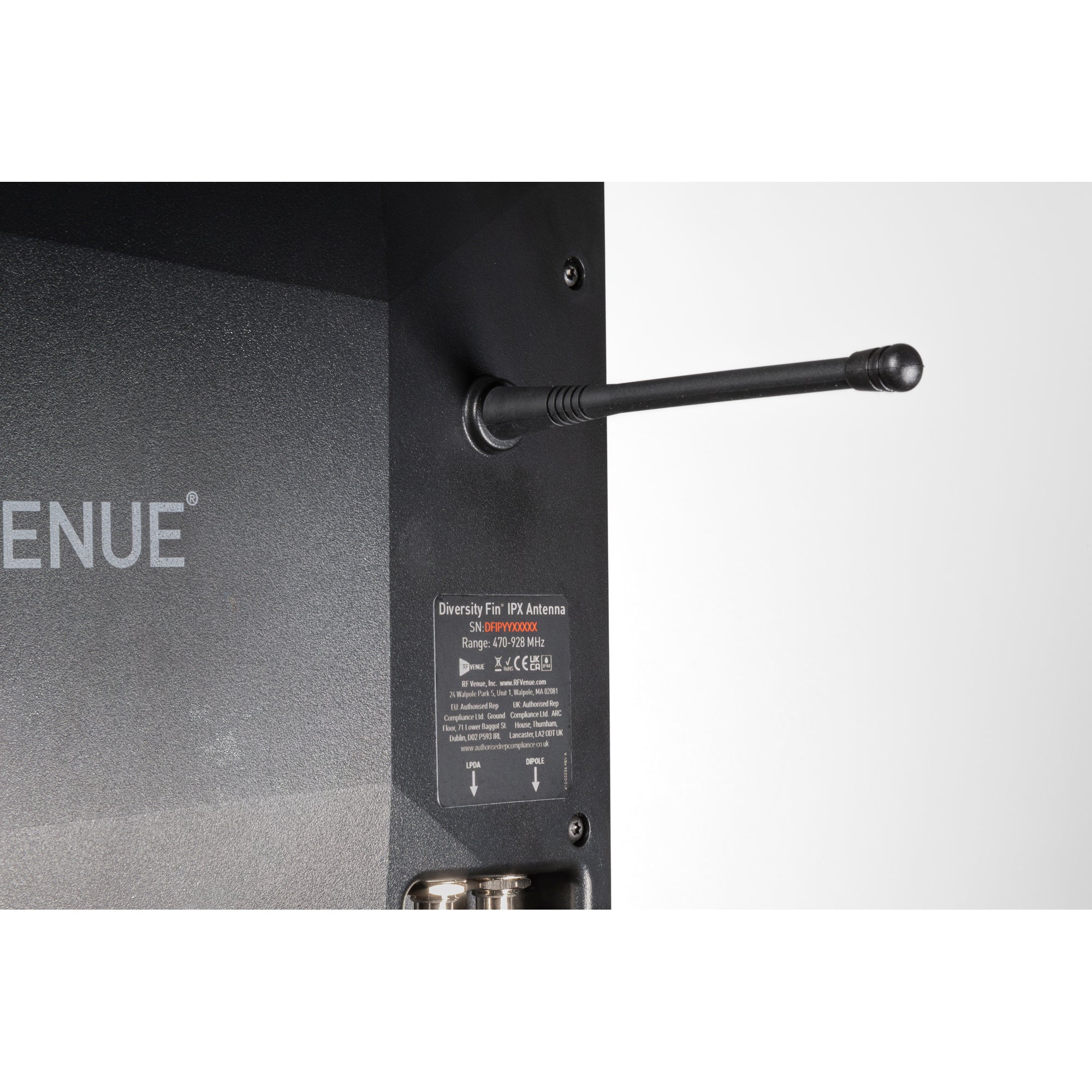

  Integrates both an LPDA and a dipole element in one housing to capture signals across multiple orientations, mitigating multi-path interference.
• All-Weather Reliability

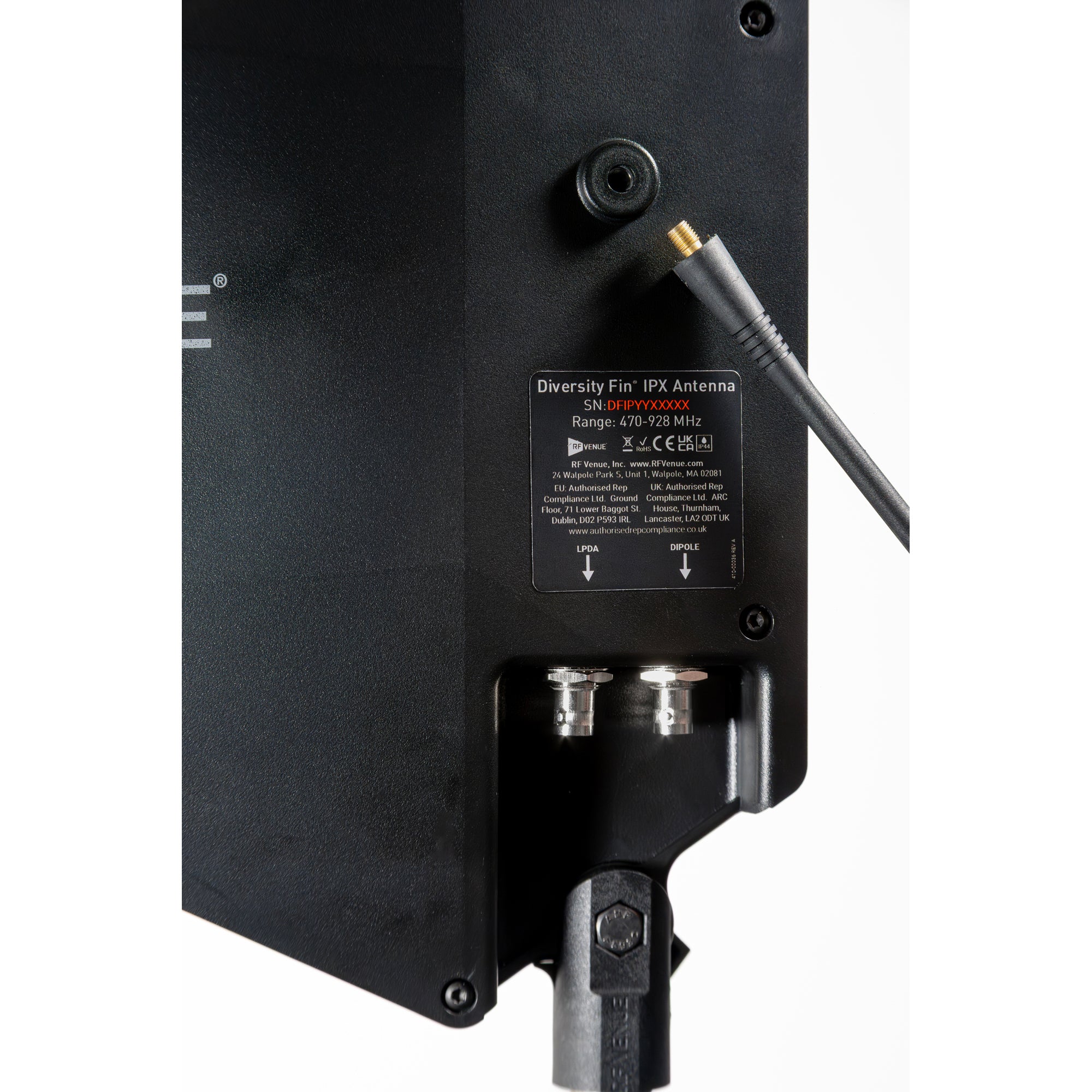

  IP44-rated construction with weather-resistant seals and downward-facing BNC connectors protects the unit against rain, dust, and debris.
• Streamlined Deployment
  Achieves true diversity reception from a single stand and mounting point, saving space, setup time, and cable clutter compared to traditional dual-paddle setups.
• Rugged Touring Enclosure
  Designed specifically to handle the physical demands of transport, live events, rental inventories, and extreme outdoor environments.
• High Compatibility
  Operates across the wide 470–928 MHz UHF band, making it compatible with nearly all modern wireless microphone systems from any brand.
• Versatile Mounting
  Integrated mounting block supports 1/4"-20, 3/8"-16, and 5/8"-27 threads (includes an EU microphone stand adapter) for flexible deployment on standard mic stands or brackets.

• Operating Frequency Range: 470 to 928 MHz
• Antenna Design: Log-Periodic Dipole Array (LPDA) and Dipole
• Polarization: Cross-linear (Vertical and Horizontal)
• Protection Rating: IP44 (Water and dust resistant)
• Impedance: 50 Ω
• Gain: LPDA: 5 dBd / Dipole: 1.8 dBd
• Beamwidth: LPDA: 140° / Dipole: 100° (Horizontal coverage approx. 120°)
• Average Return Loss: -9.4 dB
• Connectors: 2 × BNC Female (Dual outputs)
• Dimensions: 300 mm × 370 mm
• Weight: 454 g (approx. 1 lb)
• Operating Temperature: -23°C to 54°C (-9°F to 129°F)
• Included Accessories: Protective padded cover, 2 x spare dipole antennas, dipole storage case, and threaded EU mic stand adapter.
