Radial Engineer R8005005 Power-2, Surge Suppressor, Power Conditioner

The Power-2 features Radial Engineering’s superior interference filtering and peace-of-mind surge protection, along with an innovative slide-out tray with multicolor LED illumination that allows you to see the rest of your equipment rack with ease in any poorly-lit environment.

Designed without compromise by Radial

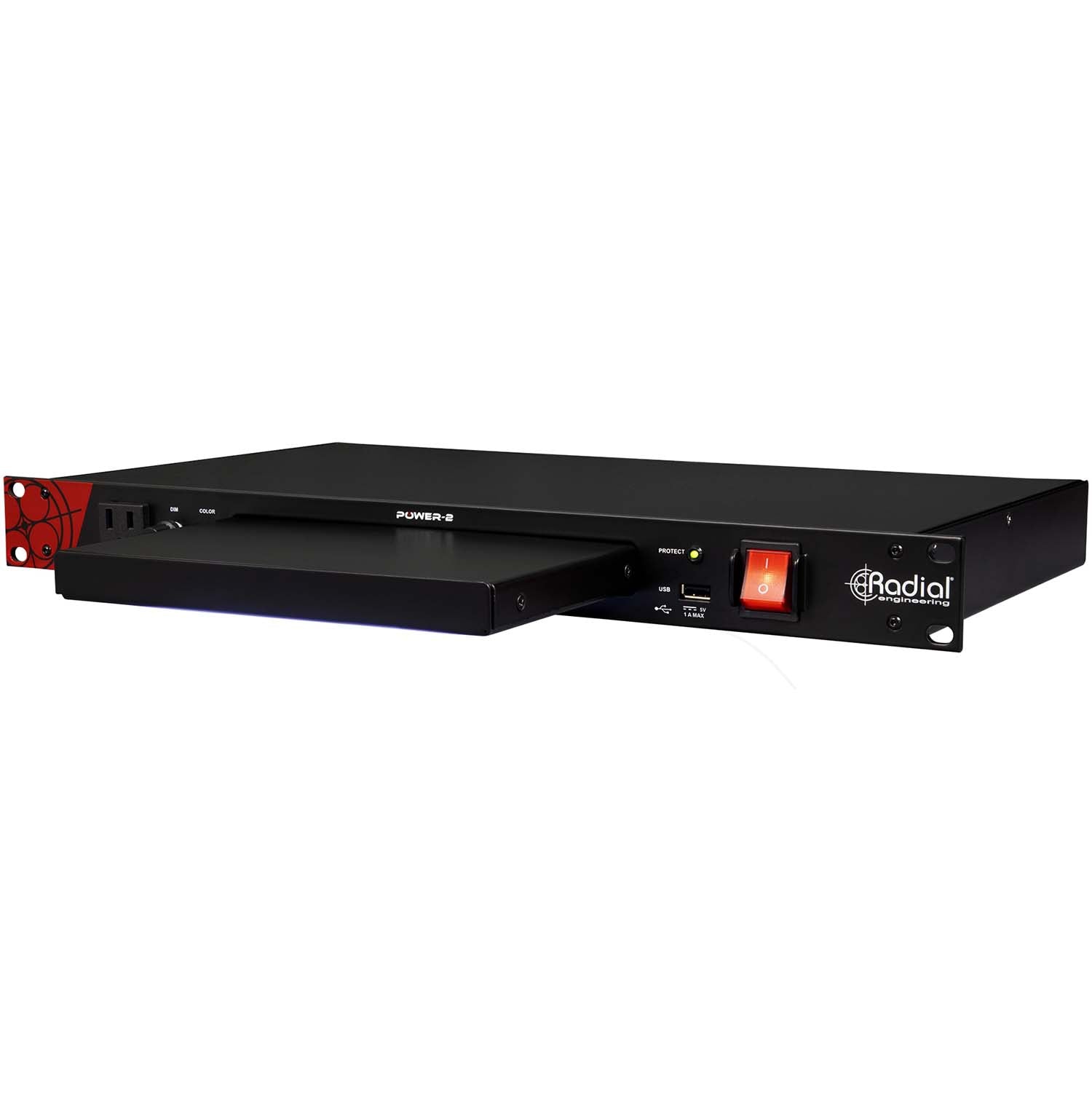

Radial Power clean surge suppressors give musicians, engineers, producers, studio owners, commercial facilities, and anyone working with valuable electronic equipment protection from power surges that can damage or destroy music equipment instantaneously. Eight rear panel outlets are provided (four with wall-wart spacing to accommodate any PSU size), along with an easily accessible front panel outlet and a USB charging port for powering personal devices. A unique tray slides out to illuminate rack equipment below, with ultra-bright LEDs in seven color options along with a built in dimmer to adjust as needed.

Low noise, High level of confidence
Unlike competitive products that utilize low quality MOV's (Metal Oxide Varistor) for surge protection, Radial Power units are built using a premium MOV. This critical component has been proven to offer superior thermal protection and have a much longer lifespan than the alternatives. The Power-2 utilizes shunt mode technology and is non-ground contaminating for lower system noise. A high-rejection RF interference filter is used to keep high frequencies and AM radio signals out of the power line, preventing contamination of audio signals.

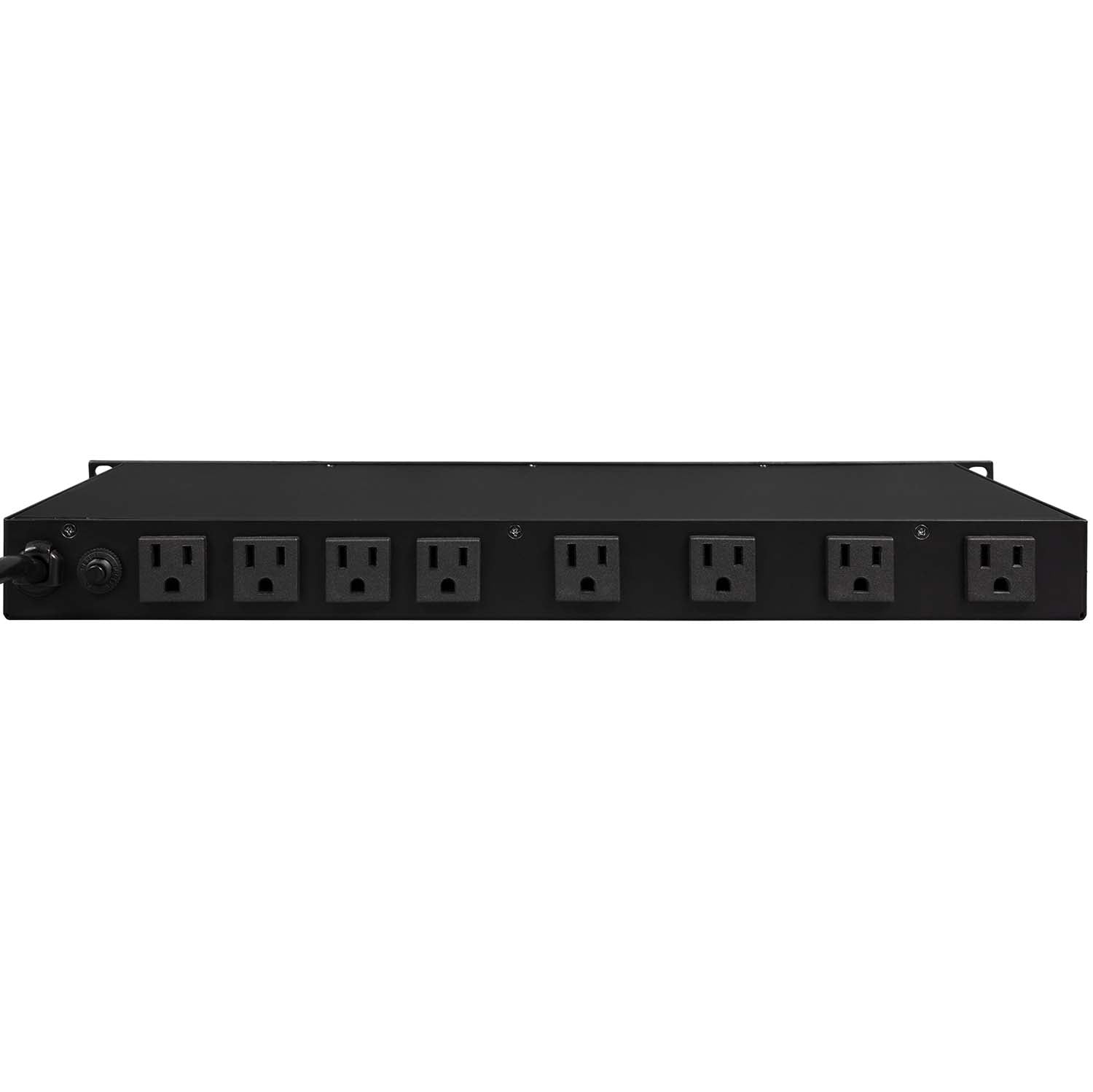

• 8 outlets on rear (4 with wall-wart spacing)

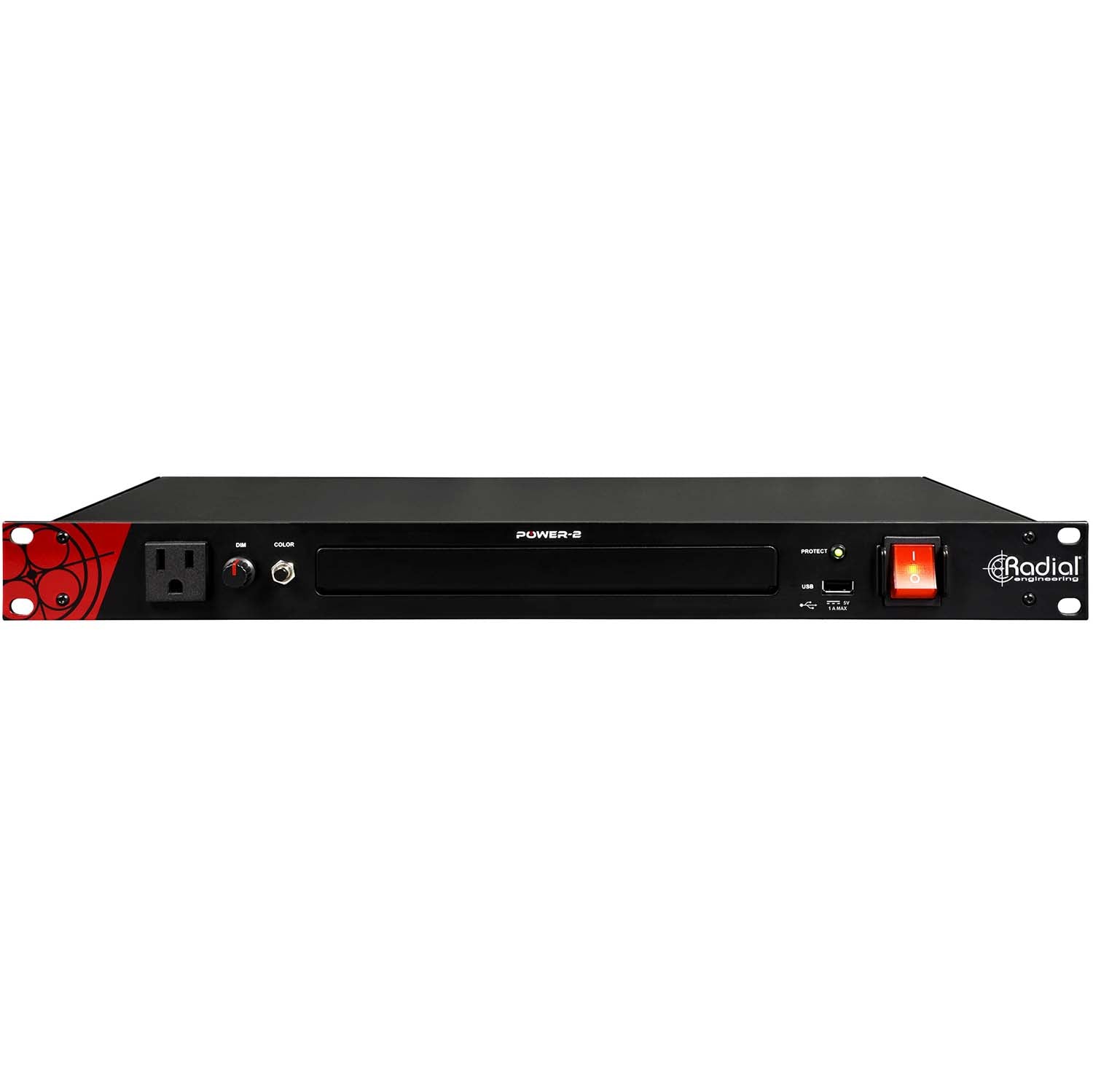

• 1 front panel outlet

• USB charging for personal devices

• Protection active LED indicator

• Illuminated power switch

• LED equipment illumination with 7 colors and brightness control

General

• Overload Protection: Premium Metal Oxide Varistor (MOV), 15A circuit breaker
• Dimensions (L x W x H): 19" x 10.05" x 1.47" (482.6 mm x 255.25 mm x 37.4 mm)
• Weight: 6.5 lb (5.03 kg)
• Load Rating: 15 Amps
• Max Continuous Operating Voltage: 130V-rms
• Energy Dissipation: 210 Joules
• Peak Impulse Current: 20,000 Amps
• Noise Attenuation:
• Differential-mode: 19 dB at 100 kHz, 41 dB at 1 MHz, 42 dB at 10 MHz
• Common-mode: 10 dB at 100 kHz, 41 dB at 1 MHz, 50 dB at 10 MHz
• Surge Protection Method: Single mode, line to neutral
• Power Cable: Approx. 9 ft., grounded 3-wire, 14 AWG

IEC Power Ports

• Voltage Rating: 120V, 50/60Hz
• Load Rating: 15A total, 15A per outlet

USB Power Port

• Voltage Rating: 5V
• Load Rating: 1A
