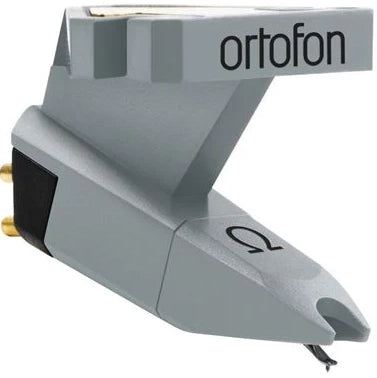

Ortofon OMEGA-1E Moving Magnet Cartridge w/ Elliptical Stylus

Ortofon OMEGA moving magnet cartridge
The Omega is a standard-mount cartridge for true high-fidelity sound reproduction.

It's a perfect match for standard USB turntables and fits a wide range of modern and vintage turntables. The Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.

The Omega provides upgraded sound quality in a cost-effective package.

• Output voltage at 1000 Hz, 5cm/sec - 4 mV

• Channel balance at 1 kHz  -  2 dB

• Channel separation at 1 kHz  - 22 dB

• Channel separation at 15 kHz  -  15 dB

• Frequency response  -  20-21.000 Hz

• Stylus type  -  Elliptical

• Stylus tip radius  -  r/R 8/18 µm
• Tracking force range - 1,5-2,0 g (15-20 mN)

• Tracking force, recommended - 1,75 g (17,5 mN)

• Tracking angle - 20°

• Internal impedance, DC resistance - 750 Ohm

• Internal inductance - 450 mH

• Recommended load resistance - 47 kOhm

• Cartridge weight - 5 g (additional weight incl.)
