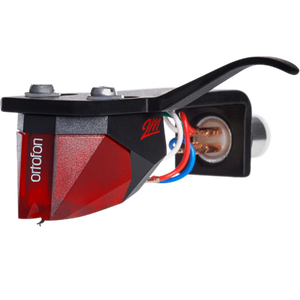

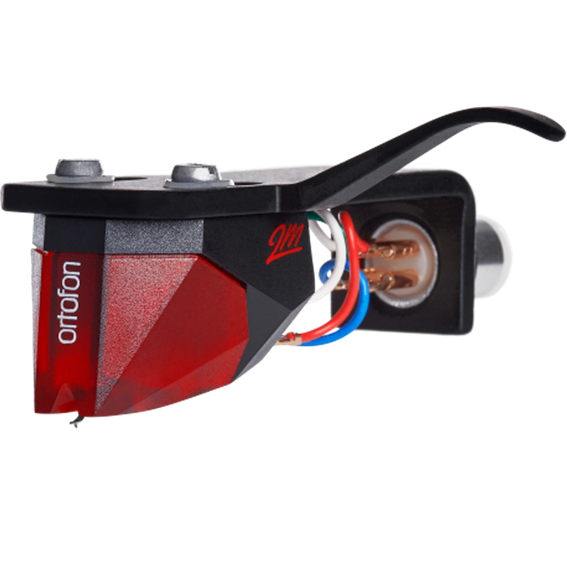

Ortofon 2M-RED-SH4-BK 2M Red Cartridge and Stylus Pre-Mounted on SH-4 Black

Step into the music
With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Accuracy level - Taking a step into music itself
With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.

Compatibility - It's never been easier to experience
Experience the convenience of the 2M Red Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Features - Split pole pin technology
The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Performance

• Channel Balance at 1 kHz: 1.5 dB
• Output Voltage at 1 kHz, 5 cm/sec: 5.5 mV
• Channel Separation at 1 kHz: 22 dB
• Frequency Response (20 Hz – 20 kHz): +3 / -1 dB
• Tracking Ability at 315 Hz: 70 µm
• Compliance (Dynamic, Lateral): 20 µm/mN

Stylus & Cantilever

• Stylus Type: Elliptical
• Stylus Tip Radius: r/R 8/18 µm
• Cantilever Material: Aluminium

Cartridge

• Tracking Force Range: 1.6–2.0 g (16–20 mN)
• Tracking Force (Recommended): 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance (DC Resistance): 1.3 kΩ
• Internal Inductance: 700 mH
• Cartridge Colour: Black/Red
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g

Load Requirements

• Recommended Load Resistance: 47 kΩ
• Recommended Load Capacitance: 150–300 pF
