Fender 011-7702-803 Eric Johnson Stratocaster Maple, 2-Color Sunburst

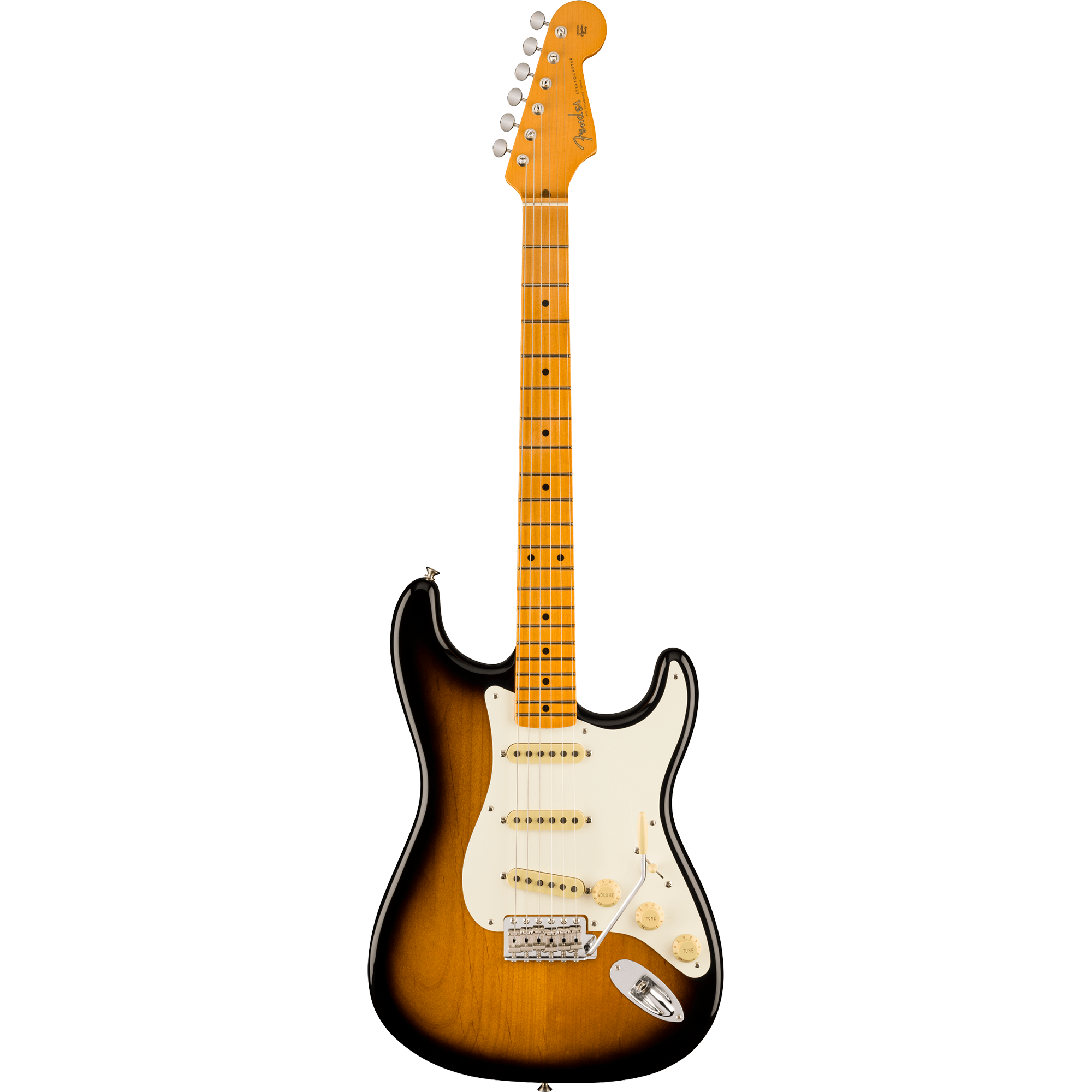

*These are stock photos. For actual photos of the instrument, please contact us.

Any guitarist who marvels at the breathtaking sonic artistry and peerlessly pure tone of Texas Strat® virtuoso Eric Johnson will also marvel at the Eric Johnson Stratocaster Maple guitar. Johnson is famously meticulous in crafting his tone, and every facet of the guitar is designed to Johnson's own detailed specs, from the specially voiced pickups to the extra-contoured neck and body to the distinctive tremolo assembly and much more. A refined signature model honoring one of modern music's finest Strat masters.

• CASE/GIG BAG: Deluxe Blonde Hardshell with Black Ends (Black Interior)

Nitrocellulose Lacquer Finish
Nitrocellulose lacquer is one of the great original-era Fender electric guitar finishes, and is still used today on select instruments. Thin, porous and delicate, it’s a premium finish prized for sonic qualities that let body woods breathe with their true tonal character, and for an appearance that ages and wears in a distinctive way appealing to many players.

Quartersawn Neck with "V" Profile
The neck of Johnson’s finely crafted signature Strat is fashioned from extra-strong quartersawn maple, with a sharper 1950s-style "V" profile (the shape of the neck in cross section) ideal for players with larger hands whose thumb extends over the edge of the fingerboard.

Special Eric Johnson Pickups
Eric Johnson is known for being meticulous about tone, and the sound of his signature Stratocaster comes from three specially voiced Eric Johnson single-coil pickups with countersunk mounting screws.

12" Fingerboard Radius
This instrument features a fingerboard radius (the amount of curvature across the width of the fingerboard) that, at 12", is substantially more flattened than both a vintage-style 7.25" radius and a modern 9.5" radius. Feels notably flat even though there’s still slight curvature, and is great for bending notes without fretting out.

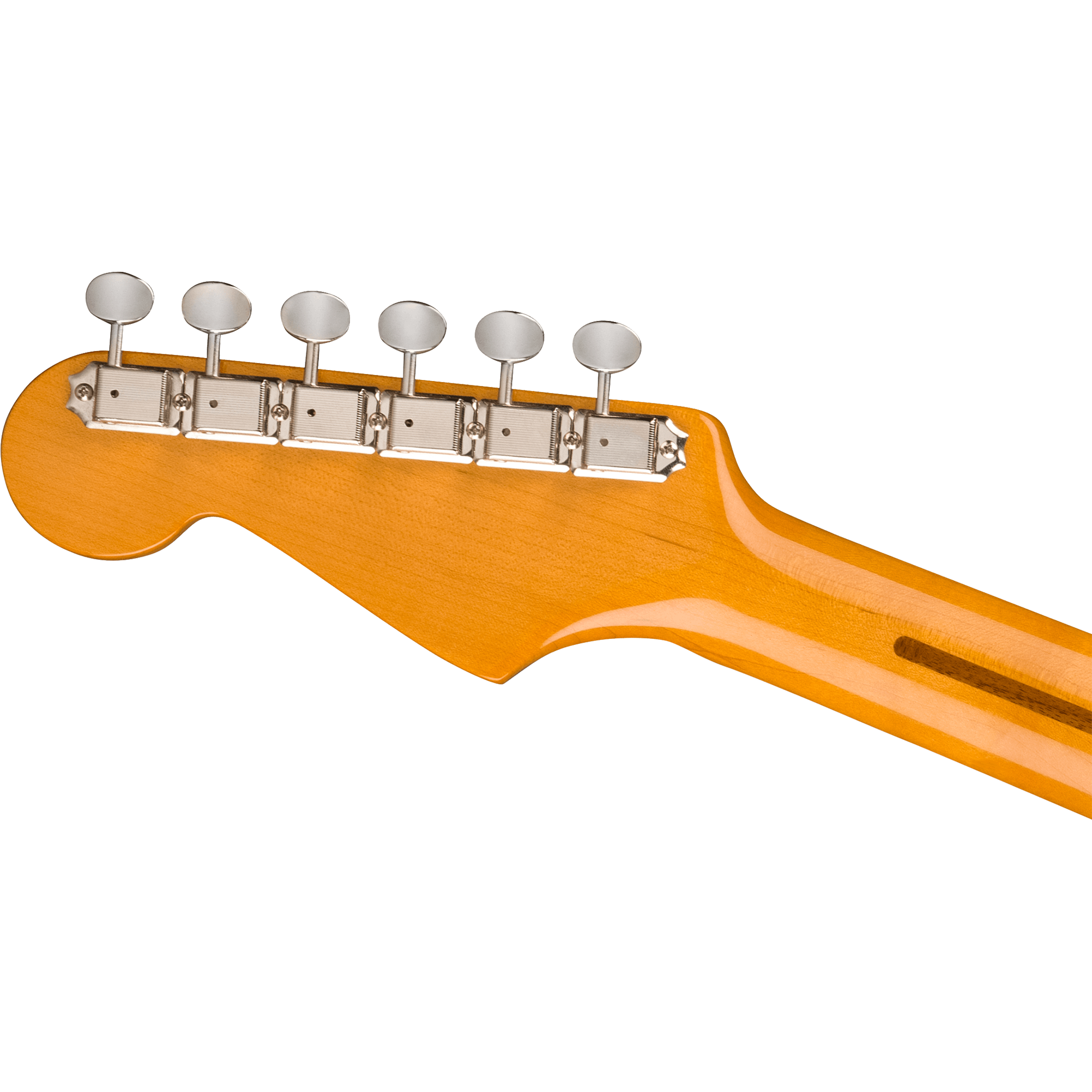

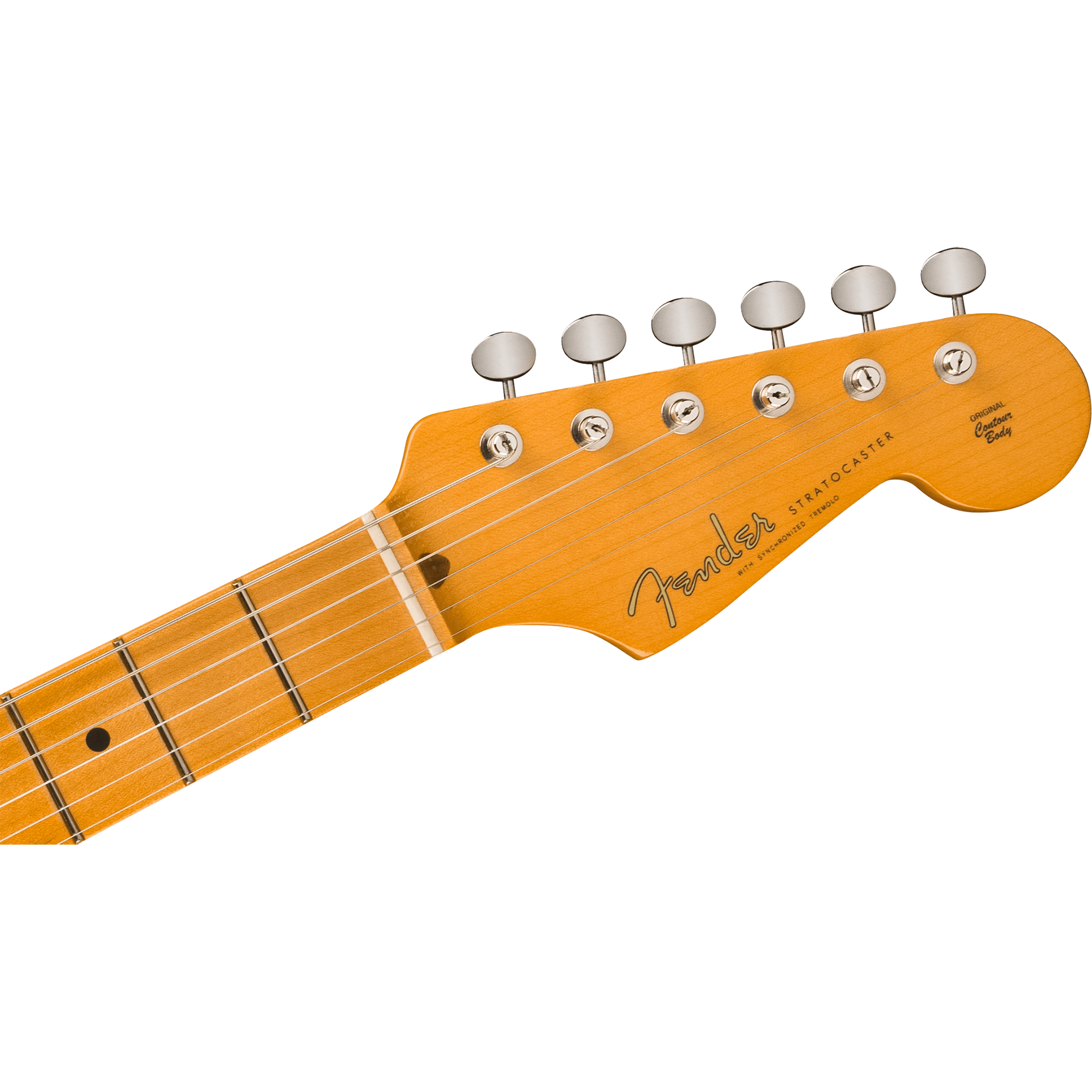

Staggered Vintage-Style Tuners
These tuners have a cool vintage-style look and are height-staggered in pairs, with posts that get progressively shorter from the low strings to the high strings. This creates optimal string break angles from the nut to the tuners, with no consequent need for string trees.

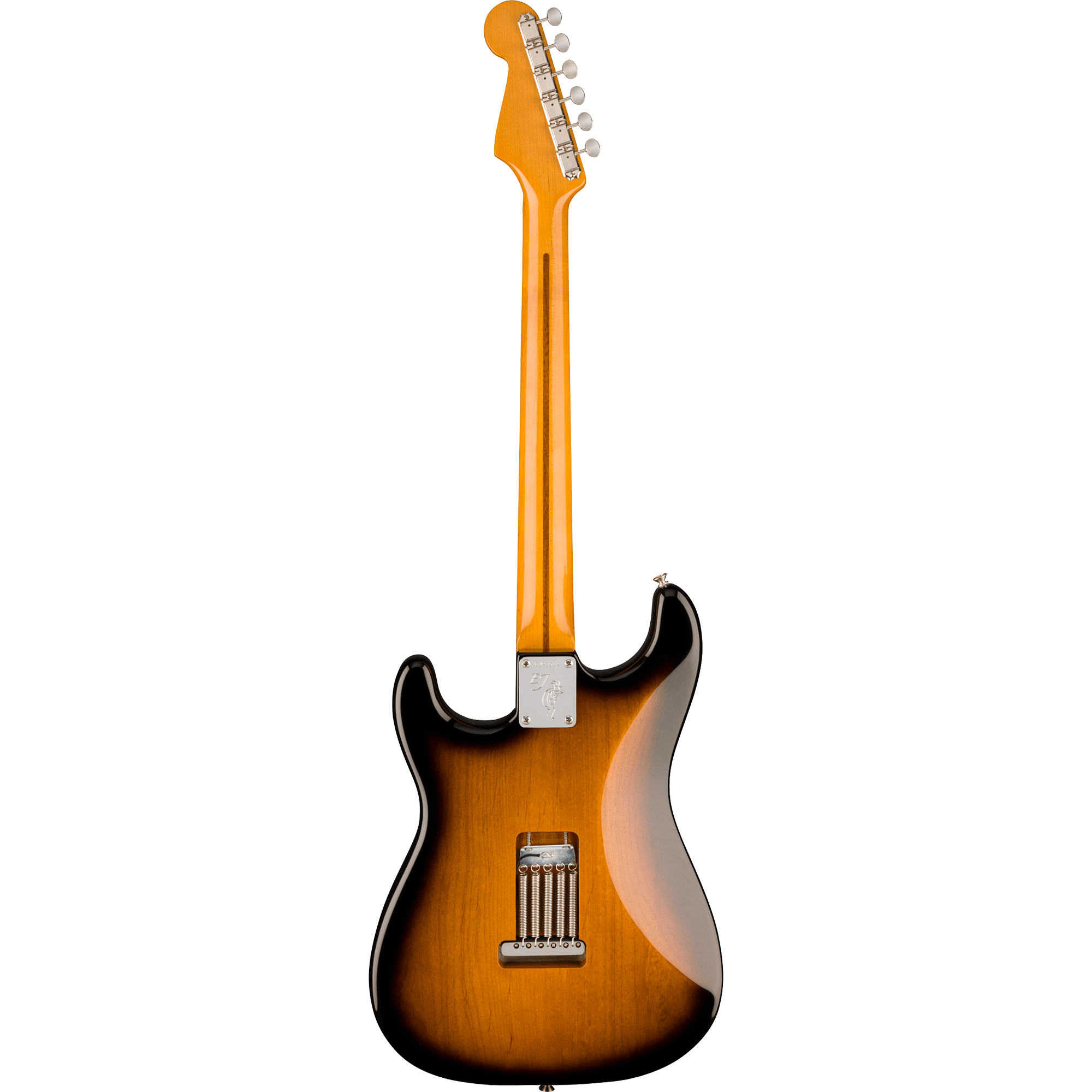

No Back Tremolo Cover/Screw Holes
According to Johnson’s own specs, his signature Stratocaster has no tremolo cavity cover on the back and no screw holes for one.

• Light two-piece alder body with deep 1957-style body contours and cavities

• One-piece vintage-tint quartersawn maple neck (contours sanded very smooth) with '57-style "soft V" contour

• 12"-radius maple fingerboard with 21 medium jumbo frets

• Specially voiced Eric Johnson single-coil pickups with countersunk screws and five-way switching

• Vintage-style tremolo with silver-painted block,'57-style string recess, no paint between base plate and block, and five springs (no tremolo cover)

• Master volume, neck tone and bridge tone controls

• General

  • Series: Artist Signature

  • Orientation: Right-Hand

  • Color: 2-Color Sunburst

  • Country Of Origin: US

  • Platform: Artist
• Neck

  • Neck Material: 1-Piece Quartersawn Maple

  • Neck Finish: Gloss Nitrocellulose Lacquer

  • Neck Shape: Soft "V"

  • Fingerboard Radius: 12" (305 mm)

  • Fingerboard Material: Maple

  • Position Inlays: Black Dot

  • Number of Frets: 21

  • Truss Rod: Vintage-Style Butt Adjust

  • String Nut: Bone

  • Nut Width: 1.650" (42 mm)

  • Nut Material: Bone
• Body

  • Body: Alder

  • Body Finish: Gloss Lacquer

  • Body Shape: Stratocaster®

  • Body Material: Alder
• Hardware

  • Bridge: 6-Saddle American Vintage Synchronized Tremolo

  • Bridge Cover/Tailpiece: Includes Chrome Bridge Cover

  • Pickguard: 1-Ply Parchment

  • Control Knobs: Parchment Plastic

  • Switch Tip: Parchment

  • Hardware Finish: Nickel/Chrome

  • Tuning Machines: Vintage-Style Staggered

  • Strings: Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406

  • Tremolo Arm: American Vintage

  • Neck Plate: 4-Bolt Custom

  • Strap Buttons: Vintage-Style
• Electronics

  • Bridge Pickup: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws

  • Middle Pickup: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws

  • Neck Pickup: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws

  • Pickup Configuration: SSS

  • Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)
    Switching5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
• Measurements

  • Dimensions: 6.40x17.70x43.90 IN

  • Shipping Weight: 23.25 LB

  • Fret Size: Medium Jumbo

  • Scale Length: 25.5" (64.77 cm)
• Accessories

  • Included Accessories: Deluxe Blonde Hardshell Case with Black Ends (Black Interior), Strap, Cable, "Ash Tray" Bridge Cover

  • Saddle Height Wrench: .050" Hex (Allen) Wrench
