Darkglass ANAGRAM Bass Multi Effects Floor Processor

Rewriting the Boundaries of Bass.
Anagram rethinks the way you shape your tone. With ultra-low latency, extensive customization, and seamless integration into the Darkglass ecosystem, it supports both studio precision and stage performance. Built for ease of use, Anagram not only refines your tone but also unlocks new possibilities for your creativity.

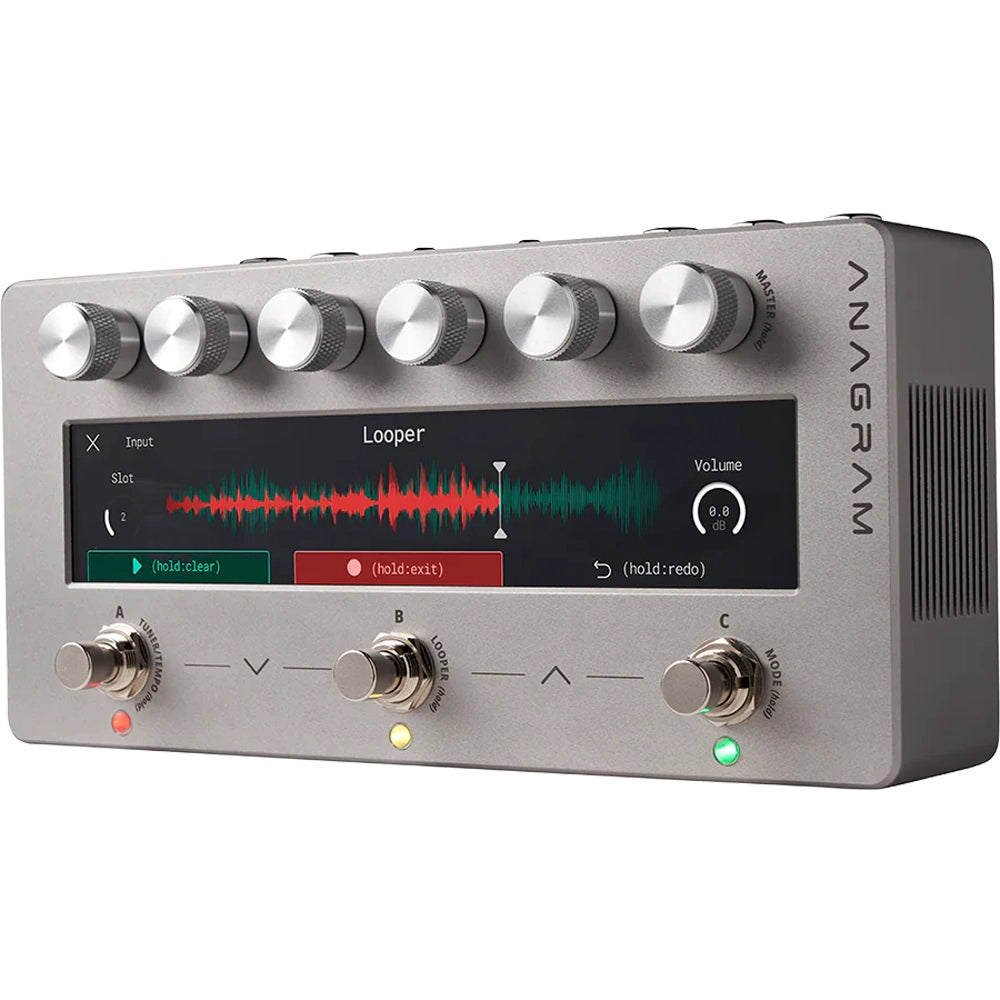

Looper - With one‑touch control, start, stop, and overdub without interrupting your creativity. Your loops run independently of presets, switch tones without stopping playback!

Tuner - Tune your bass with precision, then set your global tempo without skipping a beat. Keep your delays locked to the groove. Turn the knob to set BPM between 40 and 300.

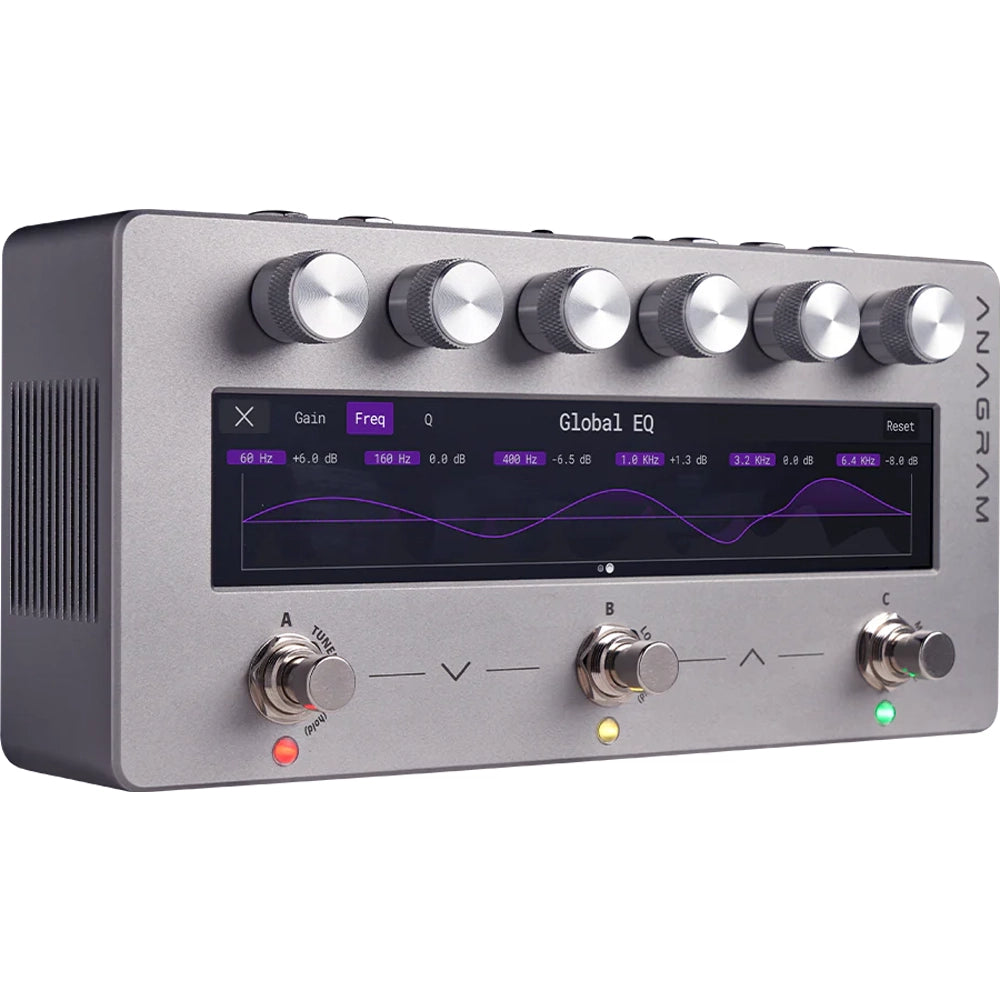

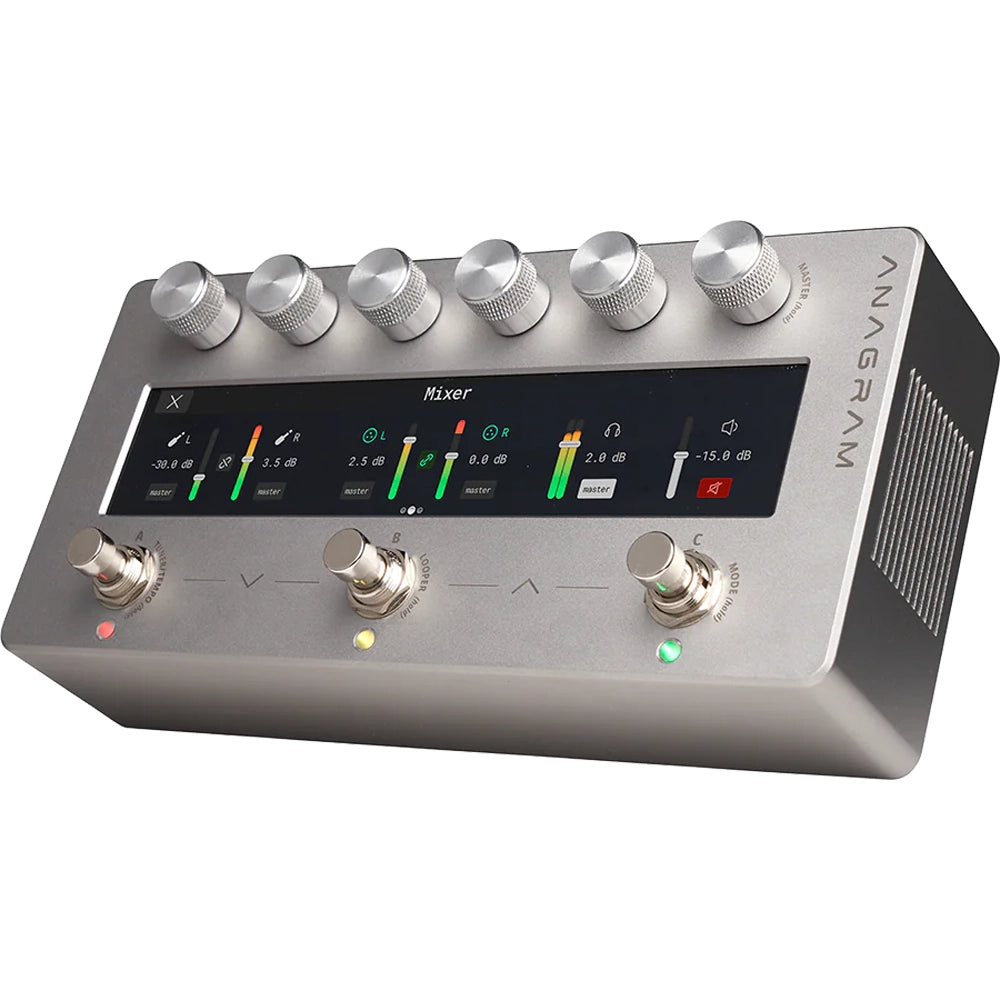

Mixer - Set levels for line outs, XLRs and headphones output, all from a single view. Fine-tune your overall tone with the Global EQ and add clarity across your entire rig.

Shape the Chaos
Entropia is a multiband distortion plugin for the Anagram platform. Bend, break, and rebuild your sound across three independent bands: low, mid, and high. With precision control, handpicked tone templates, and endless distortion options, Entropia transforms stability into motion and sound into energy.

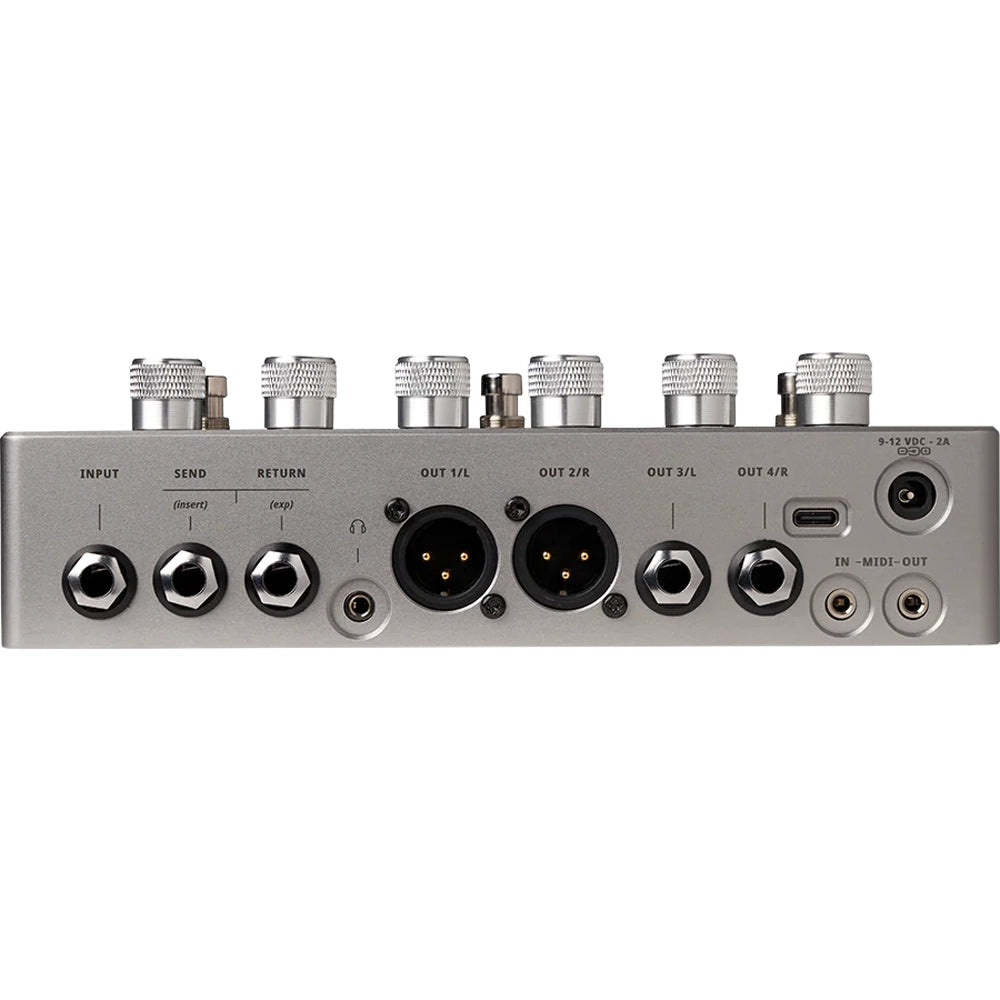

I/Os

• Input - The primary input for connecting an instrument or the output from a pedalboard via a 1/4” mono jack.
• Send (Insert) - A dual-function 1/4” jack that supports either a stereo send or a mono insert, allowing for the creation of an effects loop.
• Return (Exp) - A dual-function 1/4” jack that supports either a stereo return or an expression pedal input.
• Headphone Output - A 3.5mm stereo headphone jack featuring three adjustable gain levels, ensuring optimal volume and clarity for any pair of headphones.
• Main Outputs - Two 1/4″ outputs and two XLR outputs with the latter featuring an integrated, software-controlled ground lift. These outputs allow for stereo effects, split wet/dry signals, or multiple amplifier connections, delivering an immersive sonic experience.
• USB-C Port - The USB-C port enables Anagram’s USB audio interface capabilities and allows interaction with the Darkglass Suite app for software updates and access to the Darkglass library. USB MIDI is also supported. Additionally, Anagram can be powered using a USB-C power supply that supports Power Delivery (PD), such as compatible laptop chargers, phone chargers, or power banks.
• MIDI In - A 3.5mm TRS (Type A) jack for connecting an external MIDI controller.
• MIDI Out - A 3.5mm TRS (Type A) jack for sending MIDI data from Anagram.
• 9-12V DC - Please use a minimum of 1.7 A regulated power supply (9-12 VDC center negative). Insufficient current will result in the Anagram not functioning correctly or even preventing the Anagram from turning on.
  Anagram includes a 9V DC power adapter.

Darkglass Suite Integration
Connect to the Darkglass Suite to upload and manage Cabinet IRs and neural models, refine presets and banks, and share or download via the Preset Hub. Keep your Anagram updated and ready to play!

The sound you imagine.
Anagram’s multicore DSP engine and modern OS work together to handle real‑time audio and host a hand‑picked library of DSP blocks. Explore our bass‑focused effects, load neural models like NAM and AIDA‑X, or sculpt your tone with genuine cabinet impulse responses, all delivered with minimal latency.

• Amps and Cabs - Explore a curated selection of classic and modern bass amps alongside bass and guitar cabinet simulations.
• Distortion - Overdrive & Distortion
  Access Darkglass’s renowned drive circuits and authentic distortion captures.
• EQ - EQ, Filters & Dynamics
  Sculpt your sound with equalizers, envelope filters, compressors, and noise gates.
• Mod - Modulation & Pitch
  Add movement with flangers and choruses and explore tonal heights with octavers and pitch shifters.
• Delay - Delays & Reverbs
  Add depth with digital or analog delay effects, or choose from our selection of reverbs.
• Block-Utilities - Utilities & Loaders
  Manage your routing and signal flow with handy utilities and system blocks.

• Powered by a state-of-the-art hexacore processor and 32-bit/48kHz audio processing

• Studio and stage-grade I/O connectivity

• USB Audio, MIDI and Bluetooth capabilities

• Ultra-low latency, pristine clarity, and studio-grade sound

• Comes loaded with a curated collection of distinct preamps, 50+ customizable effects, a looper, tune

• Neural Amp Modeler (NAM) integration provides access to 10,000+ of high-quality amps and effects

• Players can create signal chains in series (12 blocks) or parallel (24 blocks)

• Includes carry case
• Multi-effect platform - Optimized for bass players.
• Six-core DSP architecture - For complex effect chains with low latency.
• Real-time audio processing - Managed by a dedicated operating system.
• Curated DSP blocks - And effects specifically for bass.
• Support - For standard-size NAM and AIDA-X neural models and IRs.
• Upgradeable architecture - For future DSP blocks, and third-party content.
• Add up to 24 simultaneous effects blocks - For complex, parallel signal chains.
• 7-inch high-brightness touchscreen - For clear and intuitive control.
• Three footswitches - For live performance control.
• Six high-resolution endless rotary knobs - For precise parameter adjustments.
• Flexible input - And output configuration.
• Suited for both - Live and studio environments.

Core Processing & Audio

• Processor: State-of-the-art Hexacore (6-core) DSP architecture.
• Audio Resolution: 32-bit / 48 kHz processing with ultra-low latency.
• Operating System: KosmOS (a modular, Linux-based system designed for real-time audio).
• Capacity: Up to 12 effects blocks in a series signal chain or 24 blocks in parallel.

Connectivity (I/O)

• Input: 1/4" mono instrument input.
• Send (Insert): 1/4" dual-function jack (stereo send or mono insert for effects loops).
• Return (EXP): 1/4" dual-function jack (stereo return or expression pedal input).
• Main Outputs: * 2 x XLR balanced outputs (with software-controlled ground lift).
• 2 x 1/4" TRS outputs.
• Headphones: 3.5mm stereo jack with three adjustable gain levels.
• MIDI: 3.5mm TRS (Type A) In and Out ports.
• USB: USB-C port for MIDI, audio interface functionality, and firmware updates via Darkglass Suite.

Physical Interface

• Display: 7-inch high-brightness color touchscreen.
• Knobs: 6 high-resolution endless rotary encoders with push-button functionality.
• Footswitches: 3 multi-function footswitches for Preset, Scene, and Stomp modes.

Features & Tools

• Modeling: Support for Neural Amp Modeler (NAM) and AIDA-X neural models.
• Effects: 50+ customizable blocks (Preamps, Amps, Cabs, Distortions, EQ, Modulation, etc.).
• Cabinet Simulation: IR loader with support for 3rd-party impulse responses.
• Utilities: Integrated looper, precise tuner/tempo, and a global parametric EQ.

Power & Physical Specs

• Power Supply: 9V–12V DC, center negative (minimum 1.7A / 2A recommended).
• Alternative Power: Supports USB-C Power Delivery (PD) from compatible chargers or power banks.
• Dimensions: 210 mm x 105 mm x 62 mm (approx. 8.27" x 4.13" x 2.44").
• Weight: 815g (1.8 lbs).
