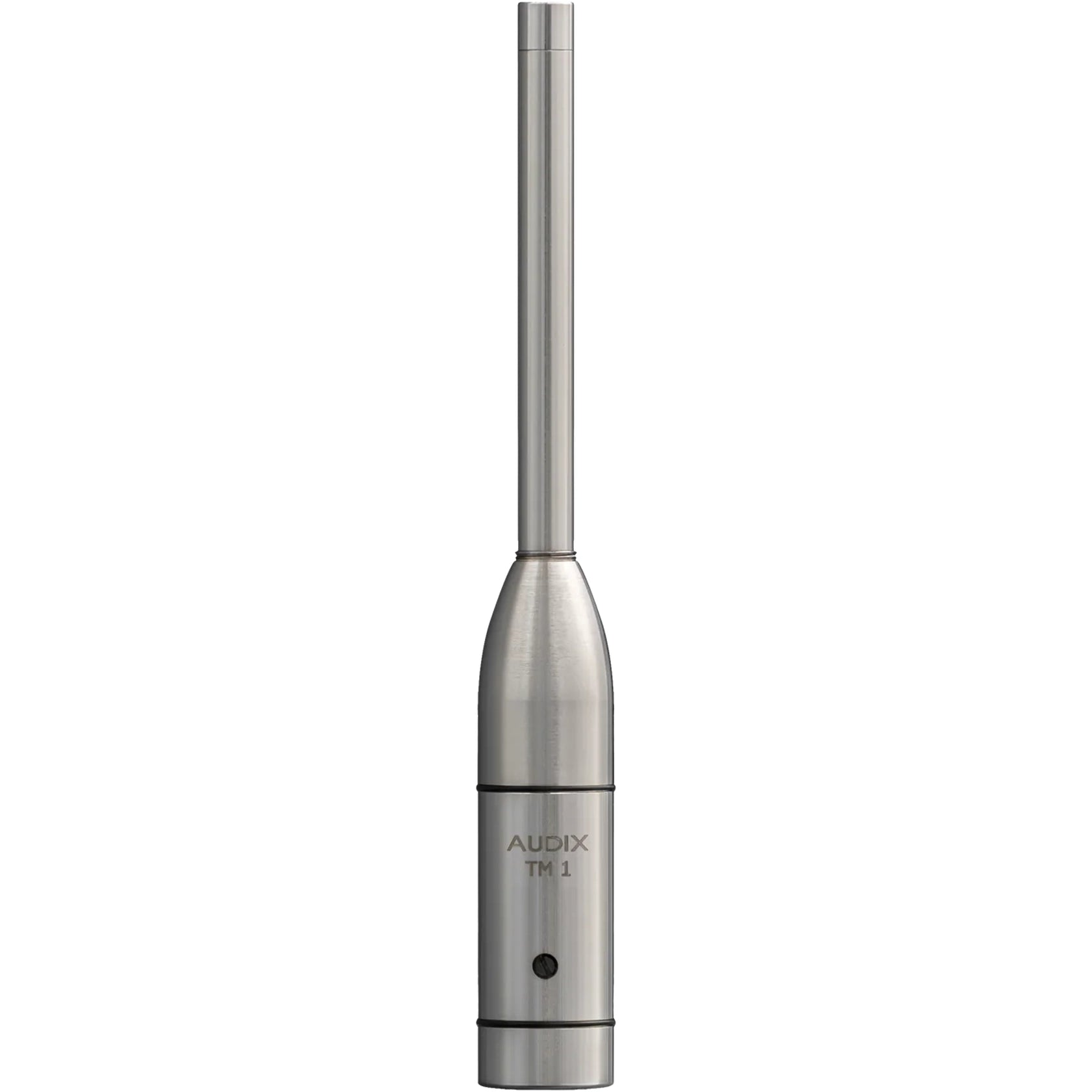

Audix TM1PLUS Omni-directional Mictrophone Test & Measurement Kit

The TM1 Plus is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by AUDIX in the USA.

The TM1 Plus includes calibration data file* and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter.

*Bruel and Kjaer® 4231 sound level calibrator or equivalent

• 6mm pre-polarized condenser capsule

• Hi SPL response

• Precision machined brass housings

• Low noise electronics

• Replaceable electronics and capsule
• 3 year warranty

• Transducer Type: Pre-polarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz - 20 kHz (+/- 2 dB)
• Output Impedance: 200 ohms
• Sensitivity: 6 mV / Pa @ 1 kHz
• Maximum SPL: 130 dB (with < 1% distortion), 140 dB Max
• Signal to Noise Ratio: 66 dB
• Equivalent Noise Level: 28 dB (A-weighted)
• Power Requirements: 24 - 48 Volts phantom power
• Connector Type: 1x XLR 3-Pin Male (Switchcraft® or Audix)
• Dimensions (Length): 5.9" / 150 mm
• Weight: 4.7 oz / 132 g

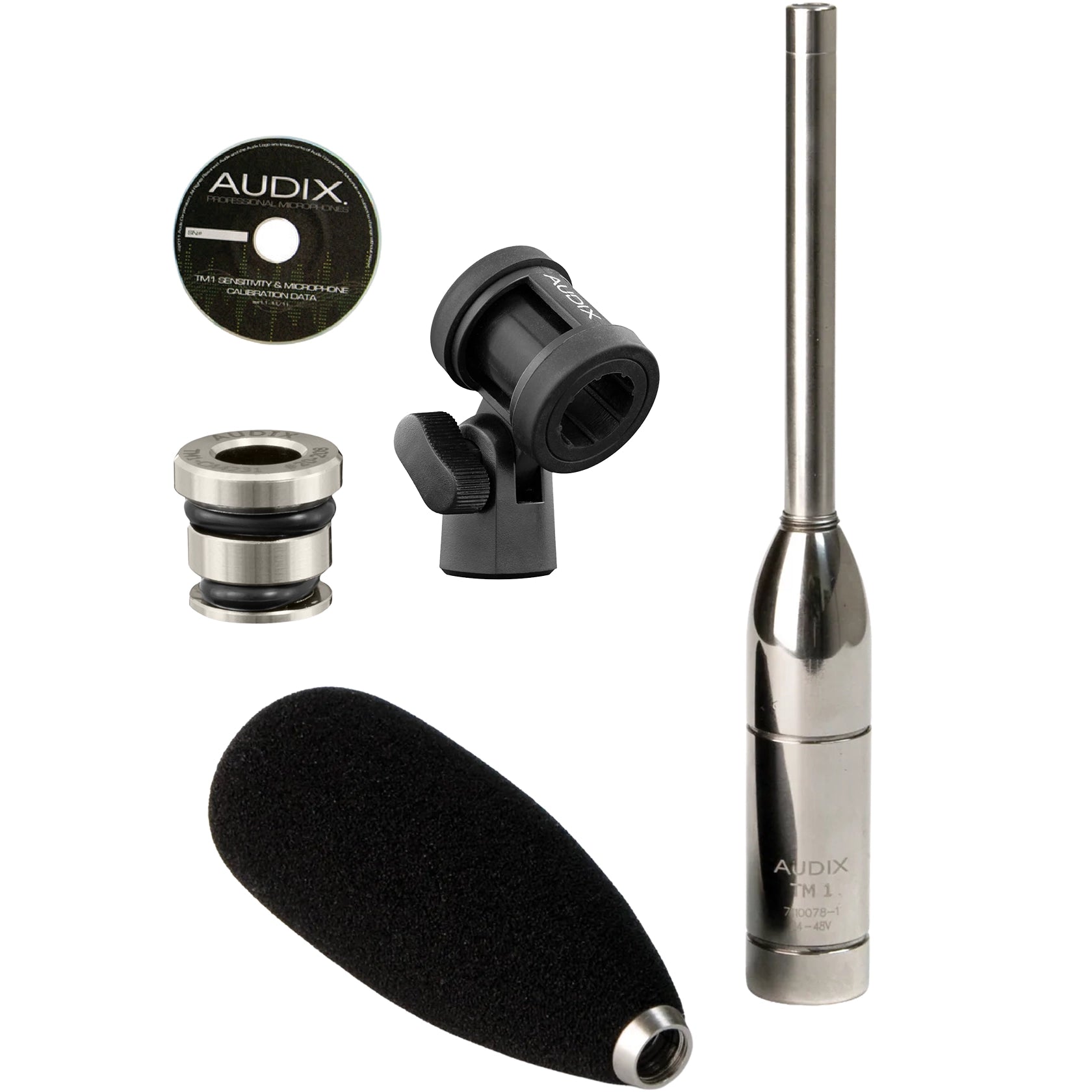

• Included Accessories:
  • WSTM1 - Threaded acoustic windscreen
  • SMT19 - Shock mount clip
  • TM1CA4231 - Calibration Adapter
  • CD - Sensitivity & calibration data
