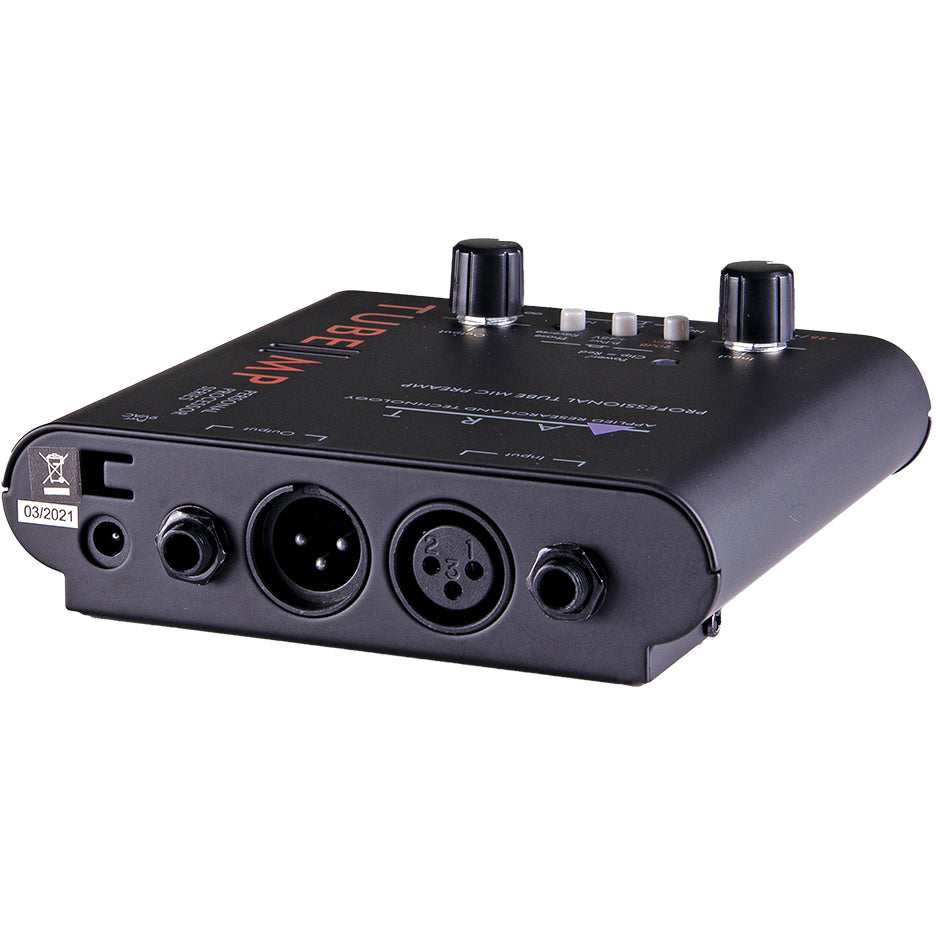

ART TUBEMP “The Original” Tube Preamp w/ 12AX7 tube, Phantom Power

The original ART Tube MP put professional-caliber tube preamplification into the hands of thousands of musicians and recordists who wanted great tube tone in a compact and flexible package.

The Tube MP Studio extends the range of applications by adding an output protection limiter (OPL) to precisely control output peaks, and analog VU metering to aid in setting and maintaining proper signal levels.

The Tube MP Studio can be used in a wide variety of applications including recording, project and home studios, where its metering functionality and OPL circuitry really shines. It also functions as a direct box, with impedance matching and preamplification for instrument or line-level sources.

• Built-in analog VU metering
• Built-in OPL (switch selectable)
• Over 60dB of gain
• Hand selected 12AX7A dual triode tube
• Balanced XLR inputs and outputs
• ¼” High impedance Instrument input and ¼” line level output
• +48V Phantom power (switch selectable)
• Phase Reverse Switch
• Gain (+20dB) Switch
• Input Gain Control
• Output Level Control
• Multifunction, dual color LED Power/Clip/Limit indicator
• Fully shielded all steel chassis
• Designed and developed in the USA

• Dimensions 5.0”H x 5.5” W x 2.0”H
• Weight 1.5 lbs.

• Input Connections XLR (balanced), ¼”TS

• Output Connections XLR (balanced), ¼”TS

• Input Impedance XLR, ¼” 2K ohms, 840k ohms

• Output Impedance XLR, ¼” 600 ohms, 300ohms

• Maximum Input Level, XLR +14dBu

• Maximum Input Level, ¼” +22dBu

• Maximum Output Level, XLR +28dBu

• Maximum Output Level, ¼” +22dBu

• CMRR >75dB (typical @ 1kHz)

• Frequency Response 10Hz to 30kHz, +/-.5dB

• Dynamic Range >100dB (20-20kHz) typical

• Total Harmonic Distortion (THD) <0.1% (typical)

• Maximum Gain XLR to XLR 60dB (typical) ¼” to ¼” 44dB (typical) XLR to ¼” 54dB (typical) ¼” to XLR 50dB (typical)
• Equivalent Input Noise (EIN) XLR to XLR -129dBu (A weighted) ¼” to ¼” -105dBu (A weighted)
• Tube Type 12AX7A, Dual Triode, Hand Selected

• Power Requirements USA – 9VAC @ .8A (typ.) Export units configured for country of destination
