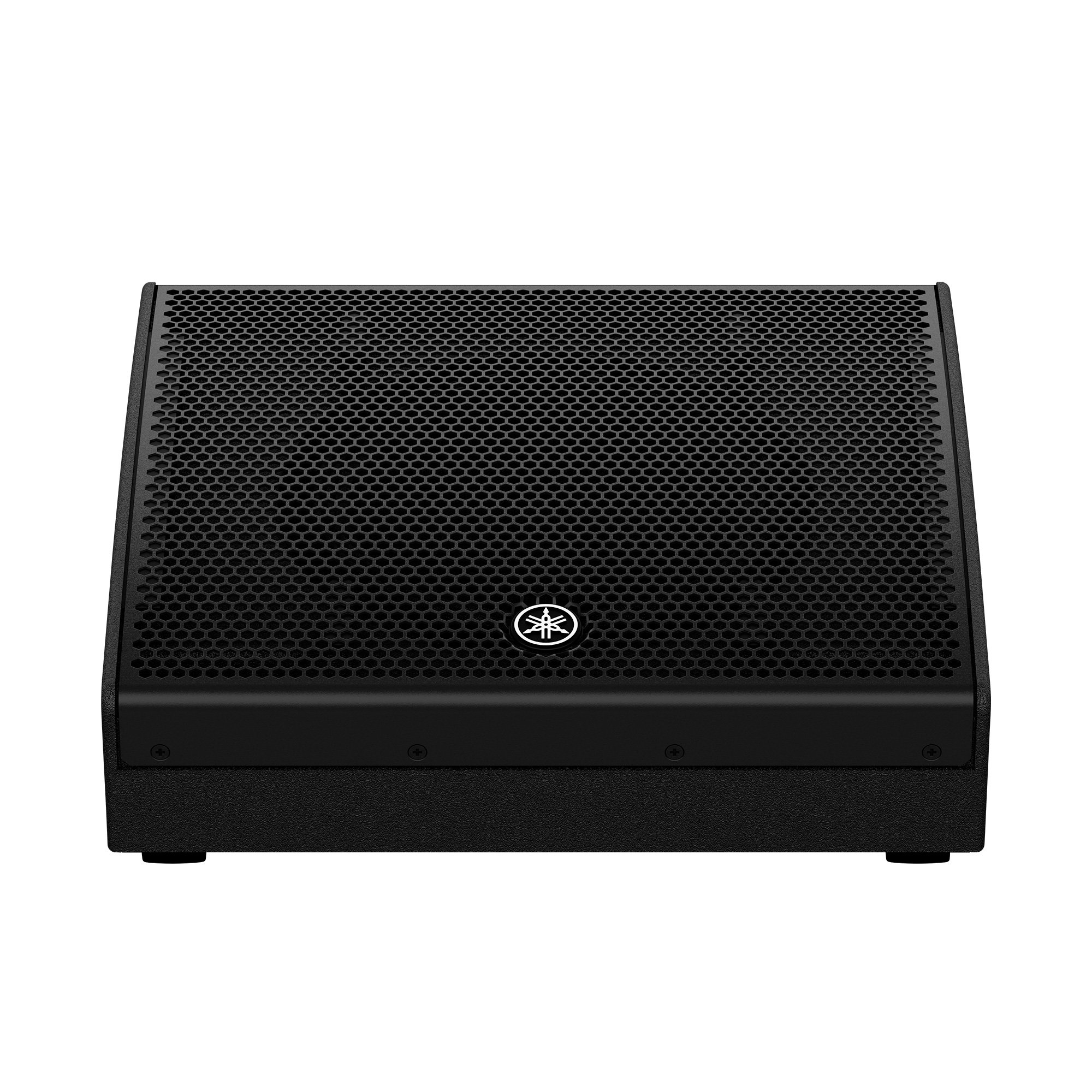

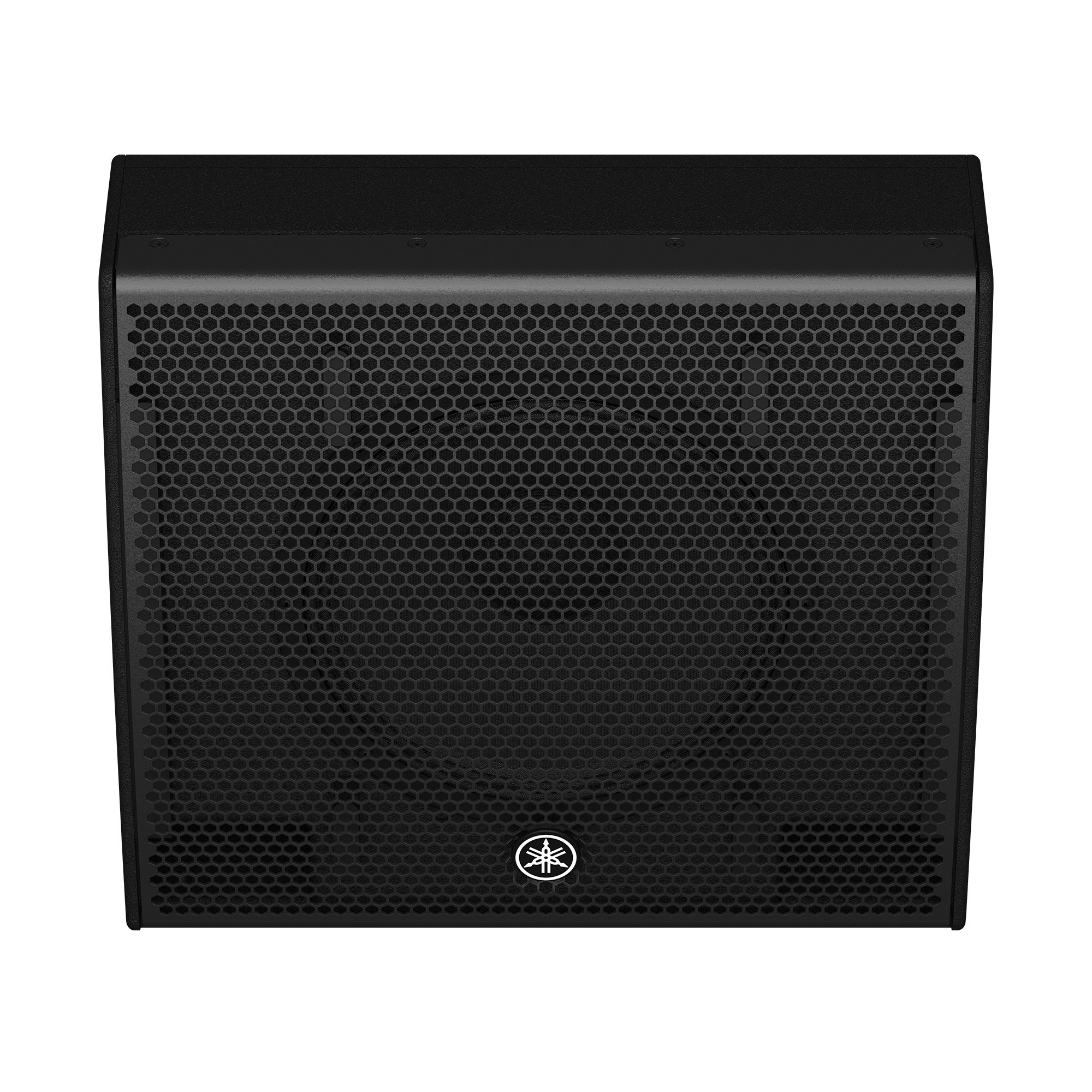

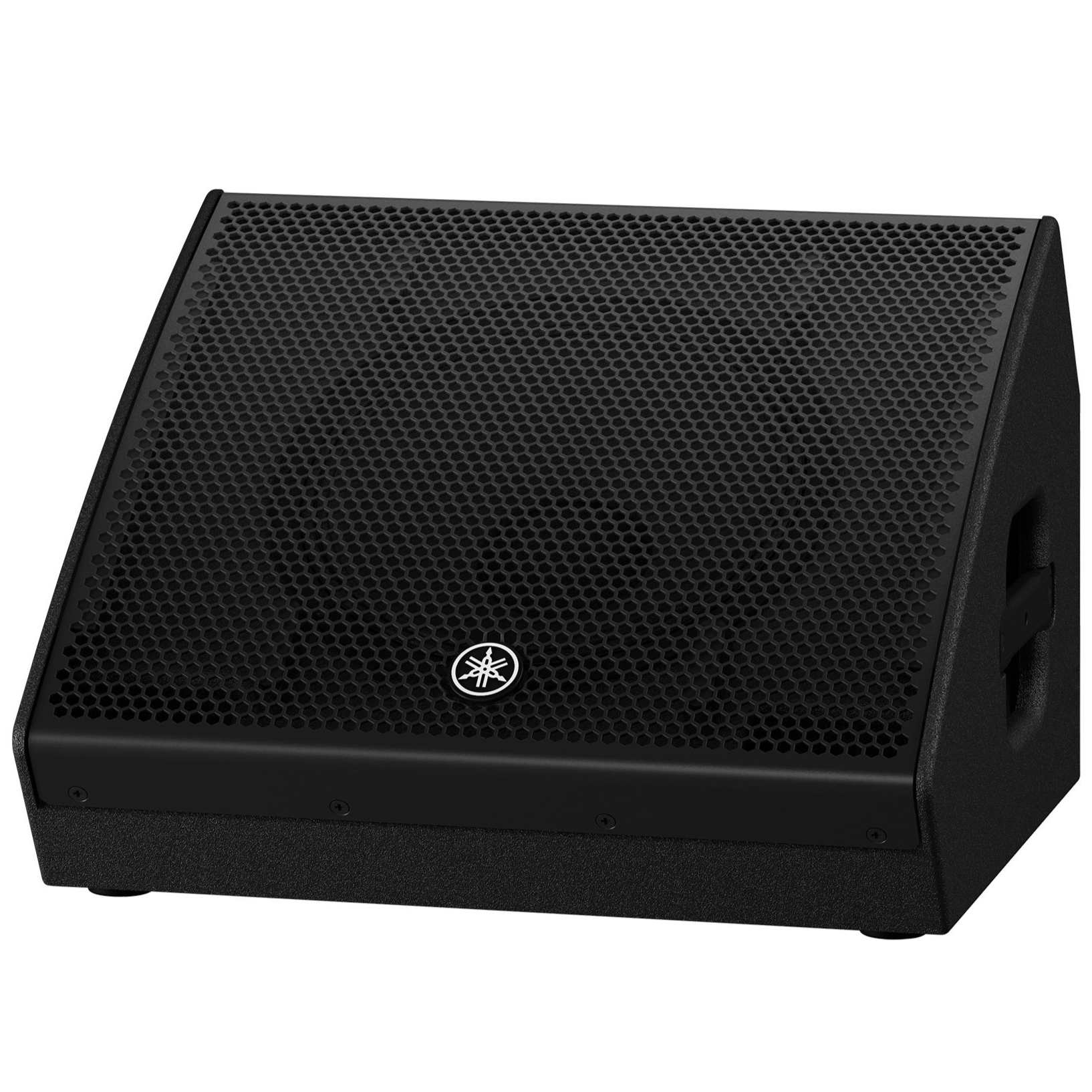

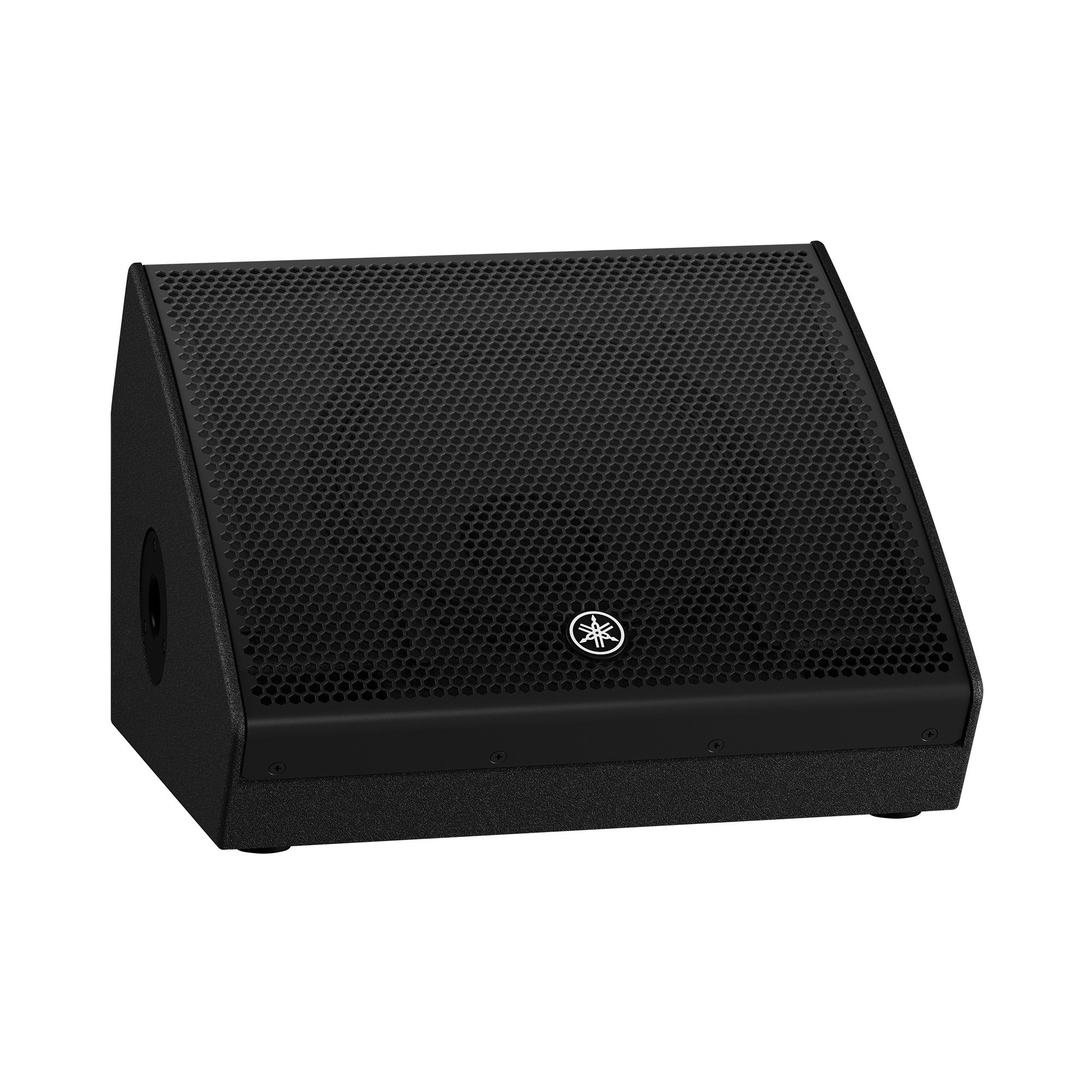

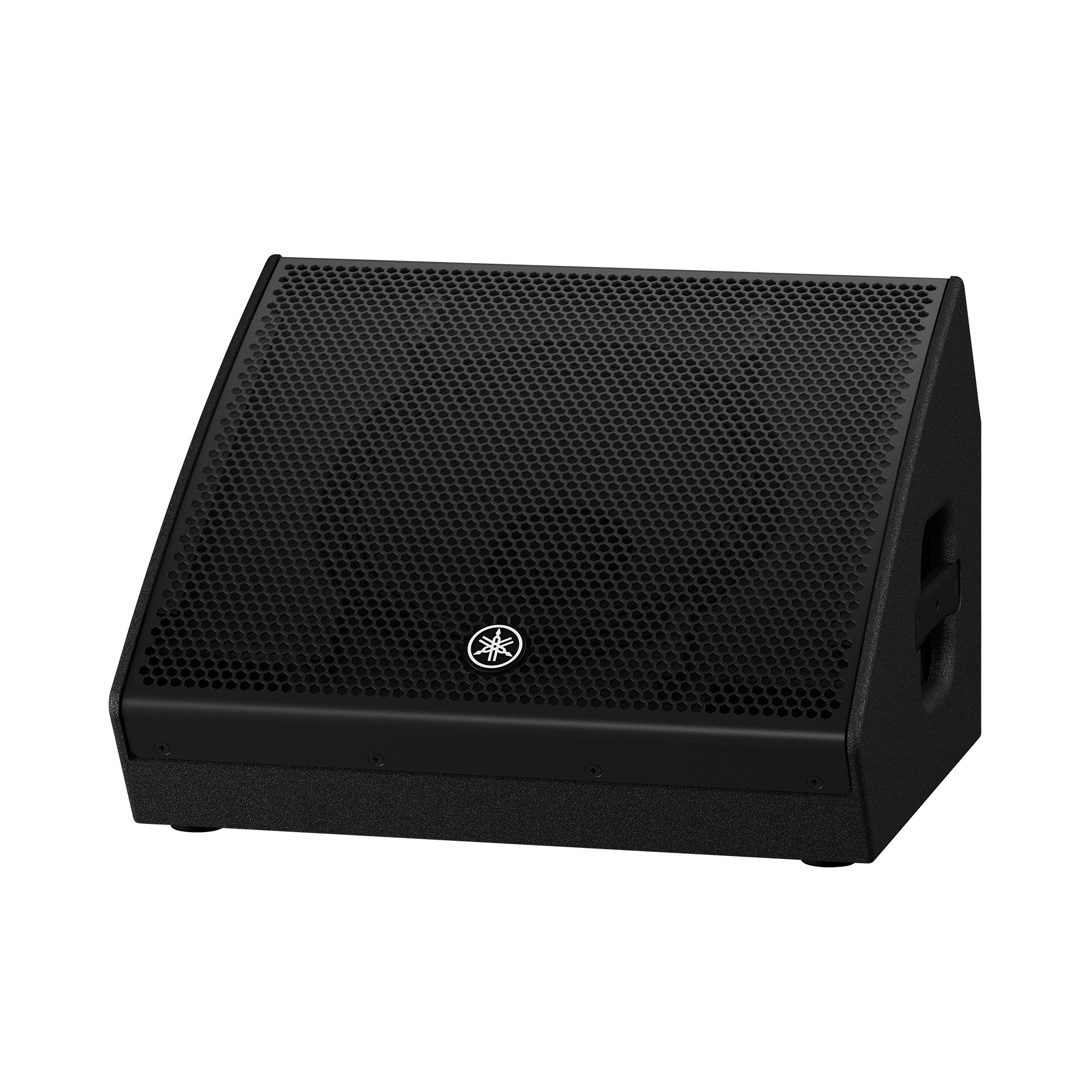

Yamaha DHR12M Powered Speaker, 1000W, 12" LF,1.75" HF Compression Driver

Performance. Optimized.
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.

Cabinet designs optimized for a range of audio environments
The DHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10” model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12” model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.

Yamaha DHR10: Rotatable HF Horn & Optional U-bracket (UB-DXRDHR10)
DHR10: Rotatable HF Horn & Optional U-bracket (UB-DXRDHR10)

Yamaha DHR12M: Coaxial Compression Driver


Yamaha DHR15: Rigging points for standard eye bolts

Custom Designed Transducers
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver* produces accurate mid-range and high frequencies.

* DHR12M features a 1.75” coaxial compression driver.

Yamaha DHR Series: LF & HF transducer (DHR15, DHR10)


Yamaha DHR Series: 1.75” coaxial compression driver (DHR12M)
1.75” coaxial compression driver (DHR12M)

A Rugged, Highly Portable Cabinet
The DHR series feature plywood enclosures like our acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

• Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB) 55 Hz - 20 kHz
• Coverage area H90ﾟ x V90ﾟ
• Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m) 129 dB SPL

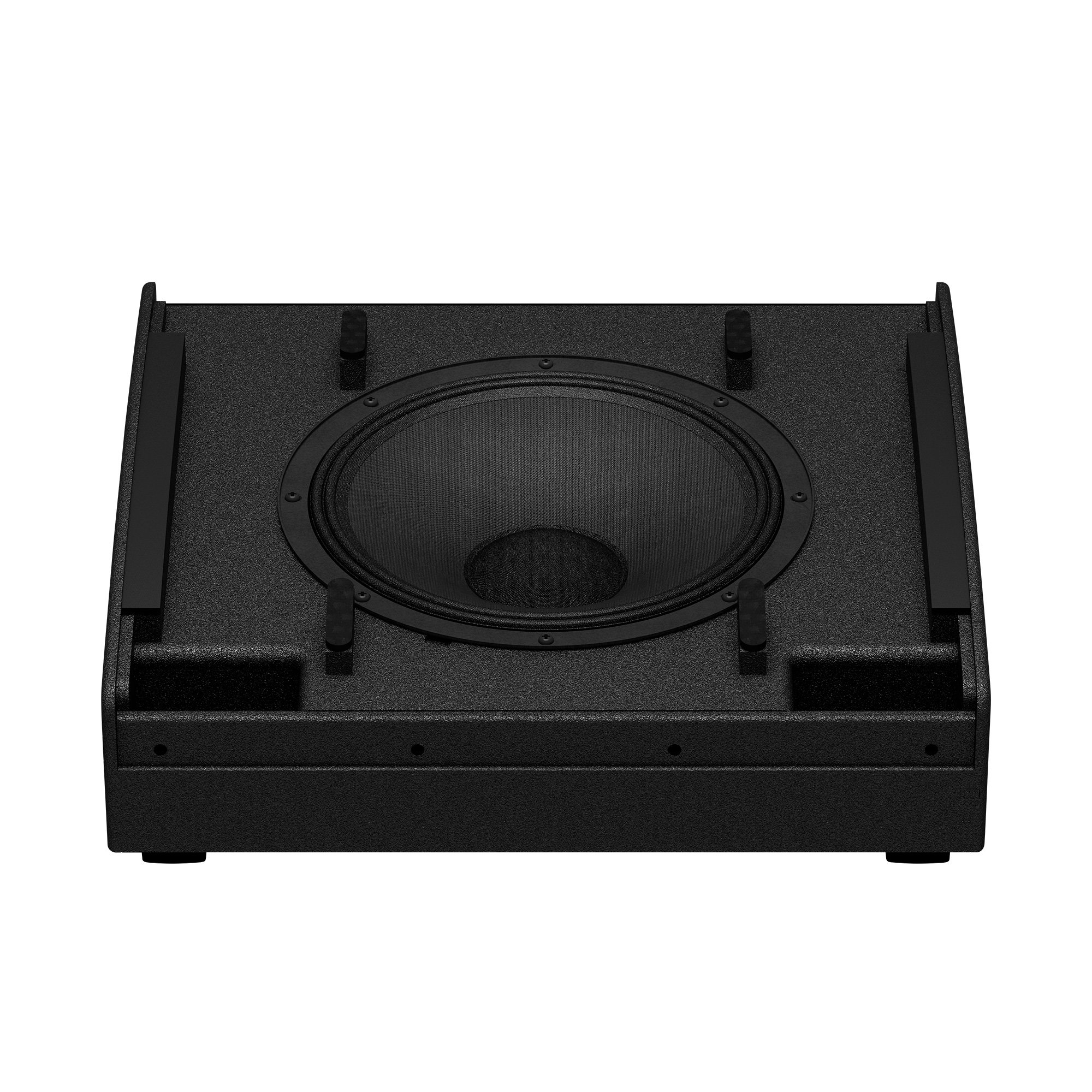

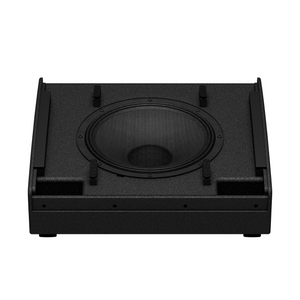

• Components LF Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
• Components HF Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Amplifier class Class-D
• Dynamic Power Rating 1,000 W (LF: 800 W, HF: 200 W) *1
• Continuous Power Rating 465 W (LF: 400 W, HF: 65 W)
• Cooling Fan cooling, 4 speeds
• Power consumption 74 W (1/8power), 18 W (Idle)
• Power requirements 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
• A/D D/A Converters 24 bit 48 kHz Sampling
• Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

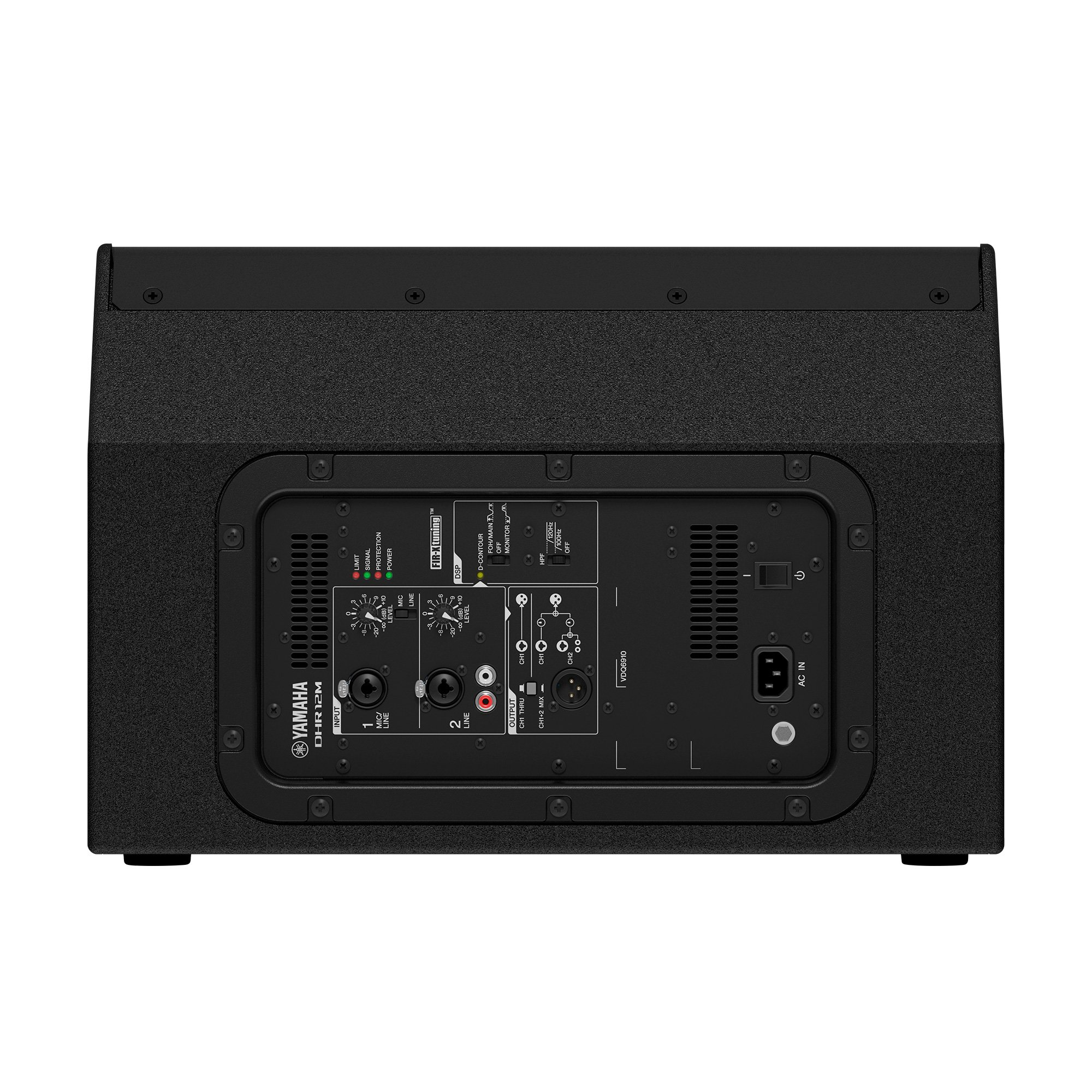

• I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material Plywood
• Finish Durable Polyurea Painting, Black
• Handle Side x1
• Pole socket Φ35 mm x1 (Bottom)
• Rigging -
• Floor Monitor Angle 57°
• W 500 mm (19.7")
• H 343 mm (13.5") (with rubber feet)
• D 454 mm (17.9")
• Net weight 16.5 kg (36.4 lbs)
• Options -
