NUX NDS-5 Fireman Distortion Pedal

Regular price
$129.00
Sale price
$129.00
Regular price
$169.00
Sold out
Unit price
per
Shipping calculated at checkout.
We have 1 in stock, in-store.

Contact us if you are interested in this product.

808-591-0999 or admin@easymusiccenter.com

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

null

null

null

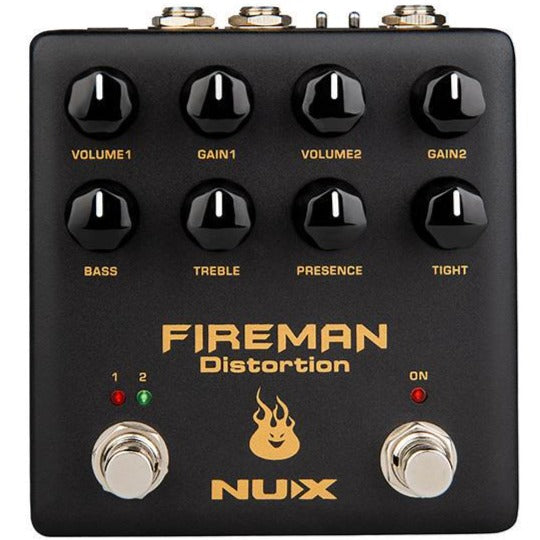

  • BASS: Adjusts the low-end response of distortion sound.
  • TREBLE: Adjusts the high-end response of distortion sound.
  • PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.
  • TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)
  • VOLUME1: Adjusts the output level while in Channel1.
  • GAIN1: Adjusts the distortion situation of the sound while in Channel1.
  • VOLUME2: Adjusts the output level while in Channel2.
  • GAIN2: Adjusts the distortion range of the sound while in Channel2.
  • 1/2 Foot-switch: Chooses the current Channel for 1 or 2.
  • ON Foot-switch: Engages or disengages the distortion sound.

null

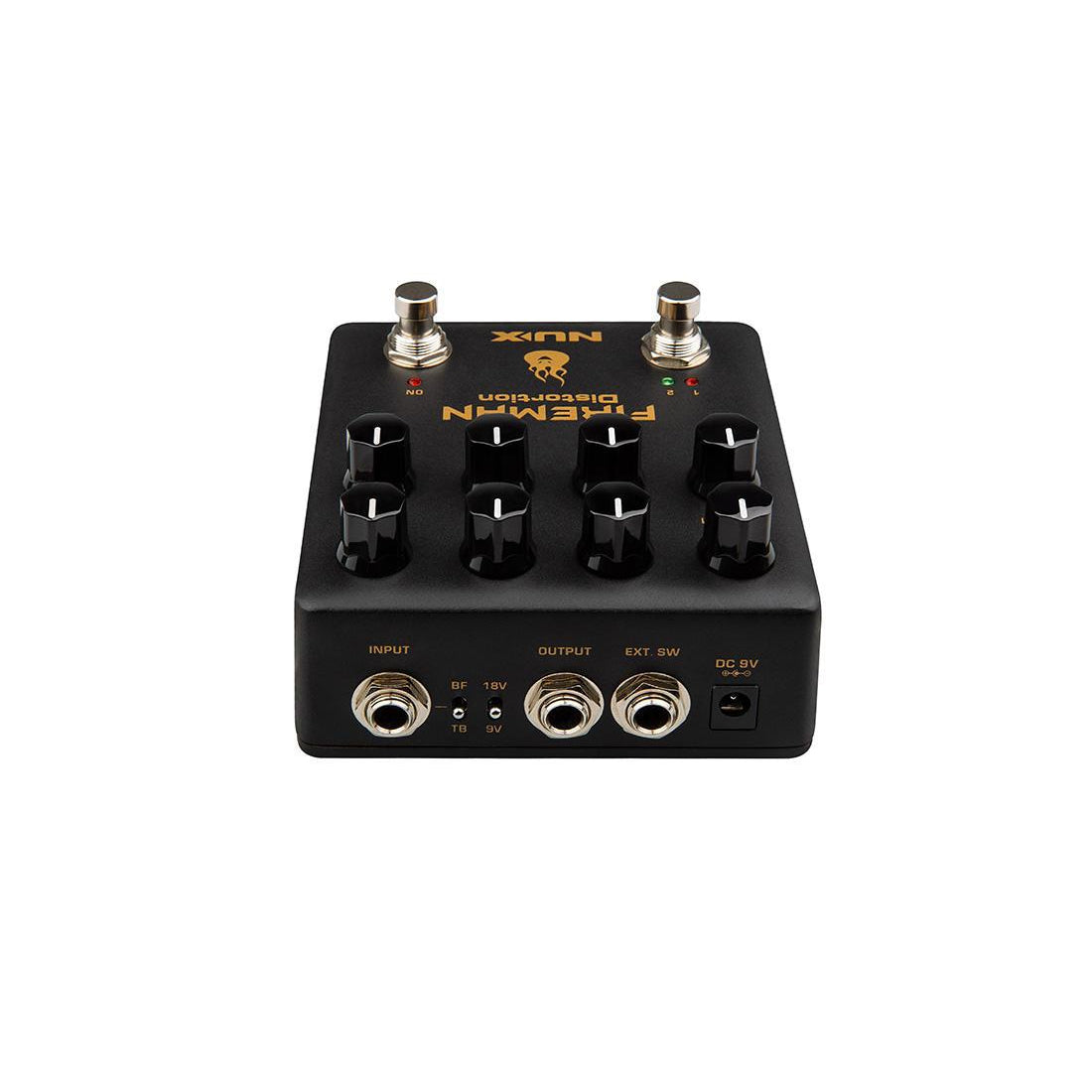

  • INPUT: Connects with your guitar or the signal from guitar side.
  • OUTPUT: Connects with the amplifier or to the amp side.
  • EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.
  • BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.
  • 18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.
  • DC Jack: Connects with 9V Negative Tip power with 100ma adaptor.
  • Modern Brown Sound in a box.
  • True-bypass / Buffer-bypass toggle switch.
  • 18V / 9V toggle switch to get different dynamic range.
  • 2 independent GAIN, VOLUME knobs for rhythm / solo application.
  • Frequency Response: 20Hz~20kHz-±1dB
  • Input Impedance: 2.2MΩ
  • Output Impedance: 1MΩ
  • Power Supply: 9V DC,Negative Tip(ACD-006A)
  • Dimensions: 105(L)×115(W)×58(H)mm
  • Weight: 460g
