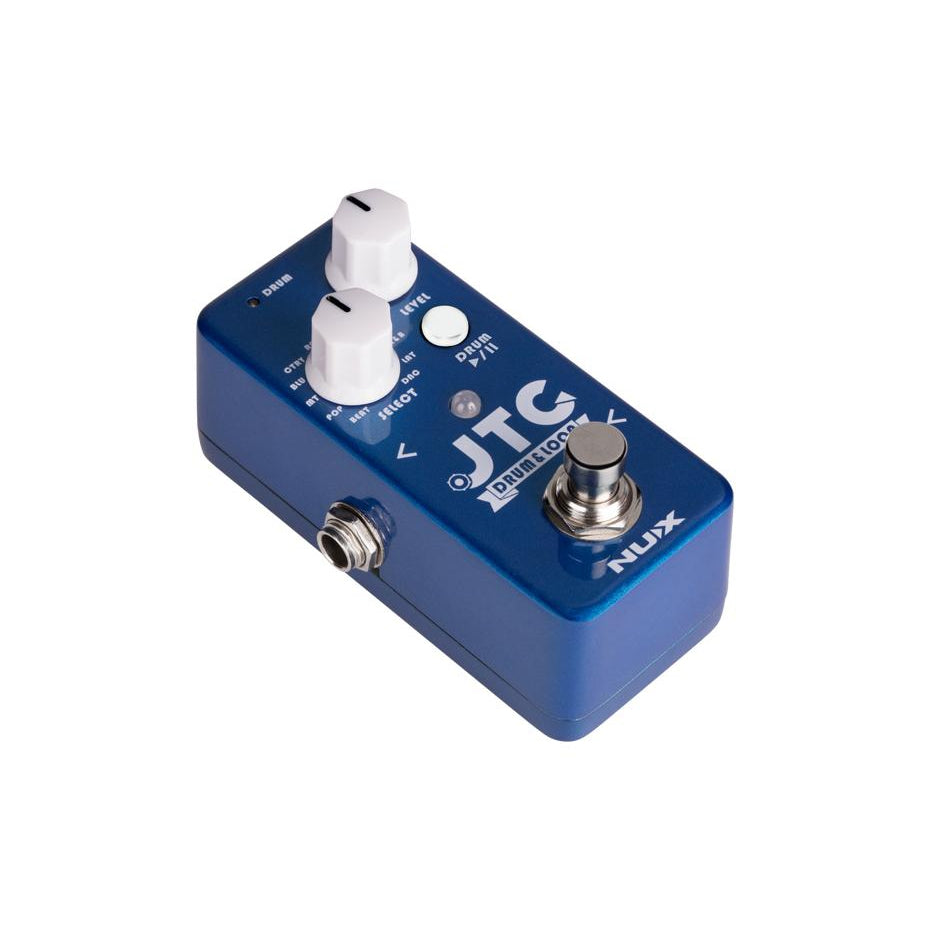

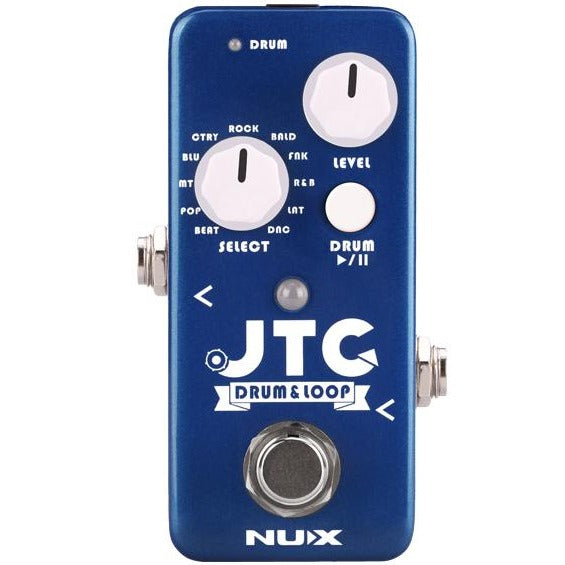

NUX NDL-2 JTC Drum & Loop Mini Pedal

Jam Track Creator Drum & Loop is the Smallest 24-bit loop pedal with auto detection drum machine.
After we released the NUX Mini Core pedals and hit the market, we were asked to "please add a loop pedal into this line". So... ask and ye shall receive!

With the NUX JTC Drum & Loop Mini, you can choose from 11 built-in drum rhythms, and record up to 6 minutes in 24-bit high-resolution audio quality.

Muti-Function Footswitch

• PRESS ONCE: Record/Play/Overdub Loop.
• (While playing loop) PRESS & HOLD: Undo/Redo the last layer.
• DOUBLE-PRESS: Stop
• PRESS & HOLD: Clear Loop
• (Without loop) PRESS & HOLD for 1.5 sec to play Drum only.
• When the Drum is playing, HOLD for 1.5 seconds to Stop the Drum OR just press once to Record Loop.
• (While Drum is playing without Loop), you can SMART TAP TEMPO to control the speed.

*Smart Tap Tempo: PRESS the footswitch repeatedly. If the time distance is less than 1.5 sec (40BPM), JTC interprets as Tap Tempo.

*While playing a loop, you can press DRUM BUTTON to add drum machine. JTC automatically follows the loop speed.

• Smallest 24 bits loop pedal with drum machine.
• 11 Drum patterns in different music styles and Metronome.
• Up to 6 minutes recording, unlimited overdubs.
• Smart Tap Tempo drum machine.
• Drum and Loop volumes can be adjusted separately separately.
• Hold the footswitch to use only drum function and control the speed with the footswitch.
• True-bypass and analog dry-through.

• Input Impedance：1M ohm
• Output Impedance：1M ohm
• Power Input：Standard 9V DC, center negative >100mA (power supply not included)
• Weight：174g/ 6 oz
• Dimensions：94（L）×51（W）×53（H）mm | 3.7（L）×2.0（W）×2.08（H）inches
