The MXR Deep Phase Pedal delivers uniquely expressive vintage phaser tones with the impeccable build quality and tweakabiity that MXR is famous for

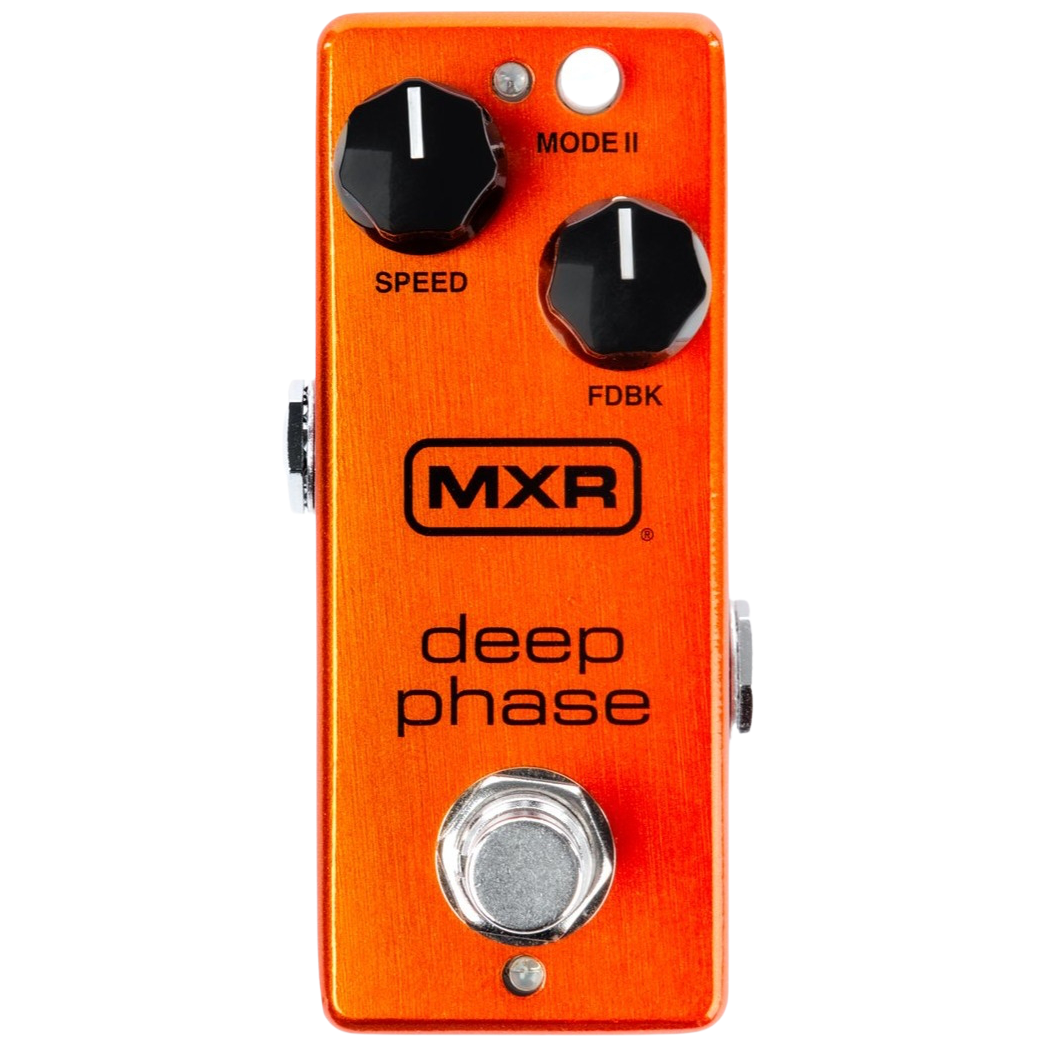

- SPEED knob adjusts the effect rate
- FDBK knob adjusts intensity of the effect
- MODE II switch toggles between 4 and 8 phase shifter stages (amber LED indicates 8 phase shifter stages)
- Footswitch toggles effect on/off (blue LED indicates on)
THE LONG STORY
The MXR Deep Phase Pedal delivers uniquely expressive vintage phaser tones with the impeccable build quality and tweakabiity that MXR is famous for.
UNIQUE VINTAGE VOICE.
Based on an iconic vintage circuit, the sound of the Deep Phase Pedal is crystal clear with a pronounced swoosh, scooped midrange, and a dynamic, voice-like response to your attack. Whether you're digging in for fat, fluid chords or gently evoking tranquil textured melodies, this pedal will adapt to your playing intensity. It plays very well with the low end of the spectrum, too, so it sounds incredible on bass. While the original suffered from a serious volume drop when engaged, the Deep Phase Pedal has been carefully designed to match your level when you kick the switch.
FROM SMOOTH AND SUBTLE TO TURBULENT AND INTENSE.
With just two knobs and a switch, the Deep Phase Pedal offers a wide range of phase tones, from subtle liquid shifting to thick, swirling turbulence. The Speed knob adjusts the effect rate, while the FDBK knob adjusts the intensity and sharpness of the phase peaks. By default, the Deep Phase Pedal runs on 4 phase shifter stages for a smooth effect. The Mode II switch doubles that to 8 stages for twice the number of peaks and a more animated texture.
COMPACT AND RELIABLY BUILT.

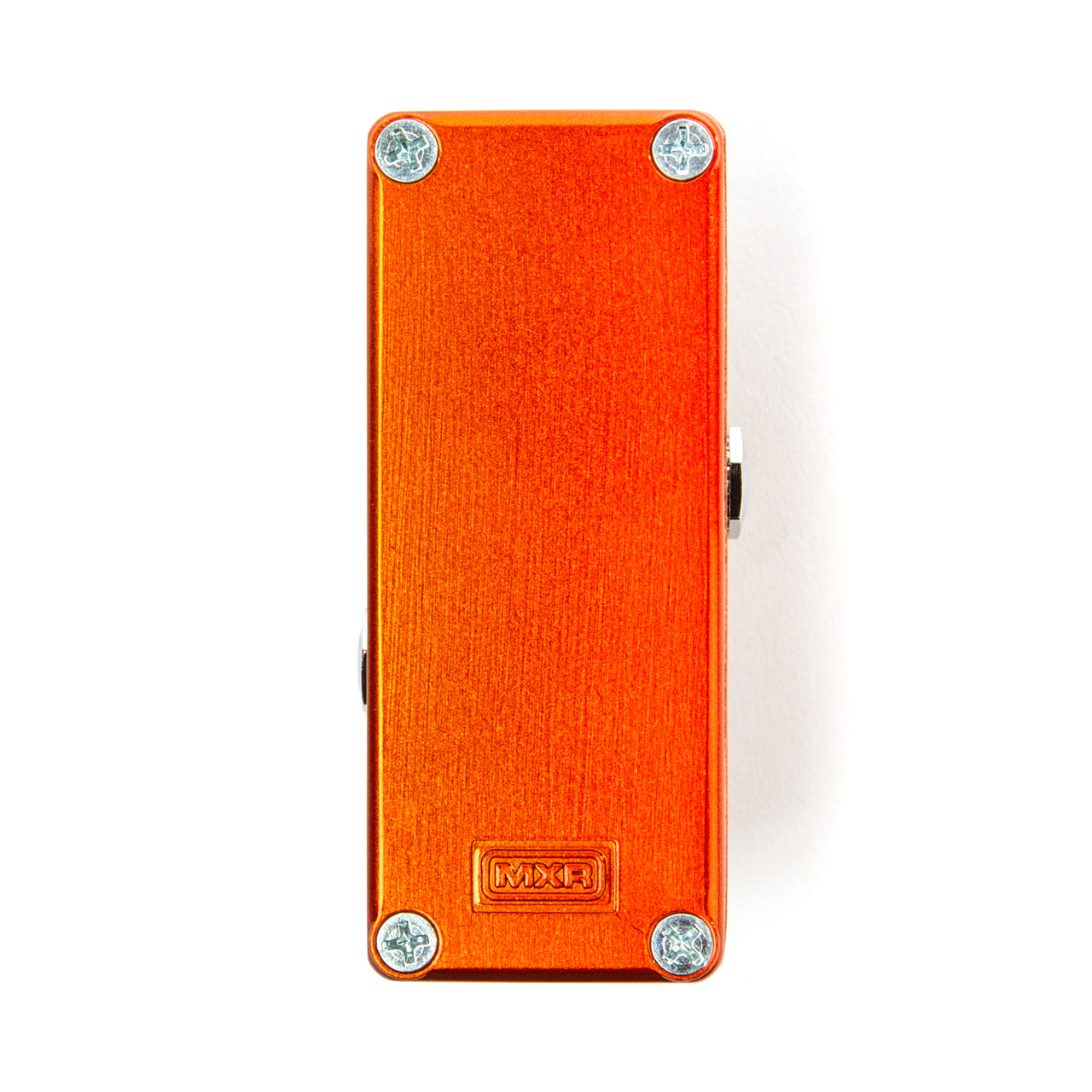

The MXR Deep Phase Pedal comes in a road-ready MXR mini housing that will take up hardly any space on your pedalboard.
- Input Impedance 1MΩ
- Output Impedance < 100 Ω
- LFO Range 0.15 to 50 Hz
- Phase Stages
- Mode I 4
- Mode II 8
- Bypass True Bypass
- Current Draw 18 mA

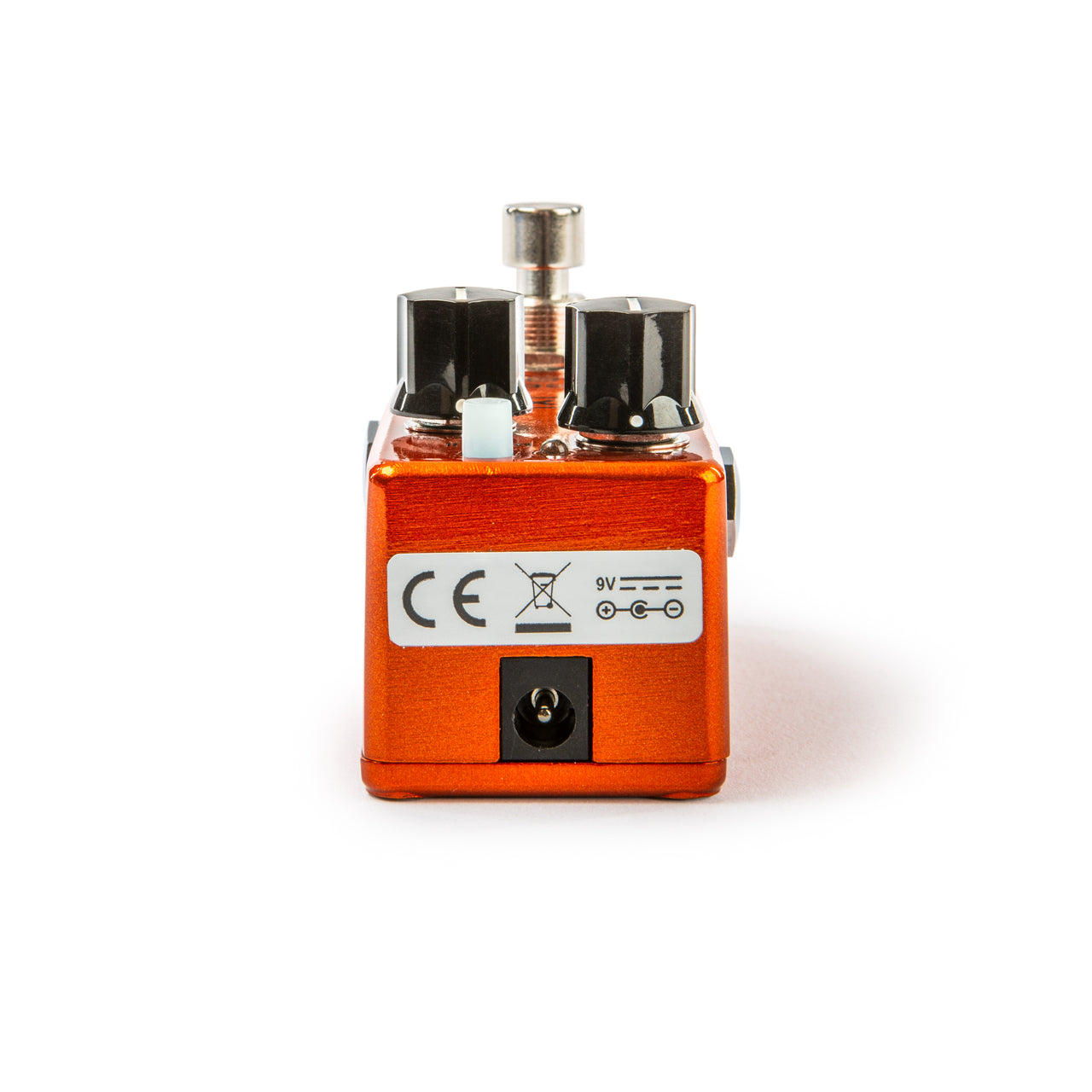

- Power Supply 9 volts DC
