The MXR Double-Double Overdrive serves up two classic overdrives in a single housing, selectable with the flick of a switch—a Low Gain circuit for rich, fiery midrange tones and a High Gain circuit that kicks up the gain and emphasizes highs and lows—with tone controls to season your overdriven sound.
- This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

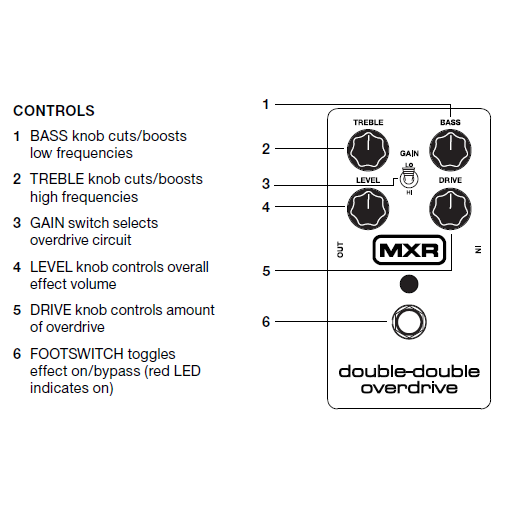

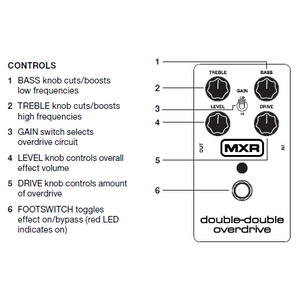

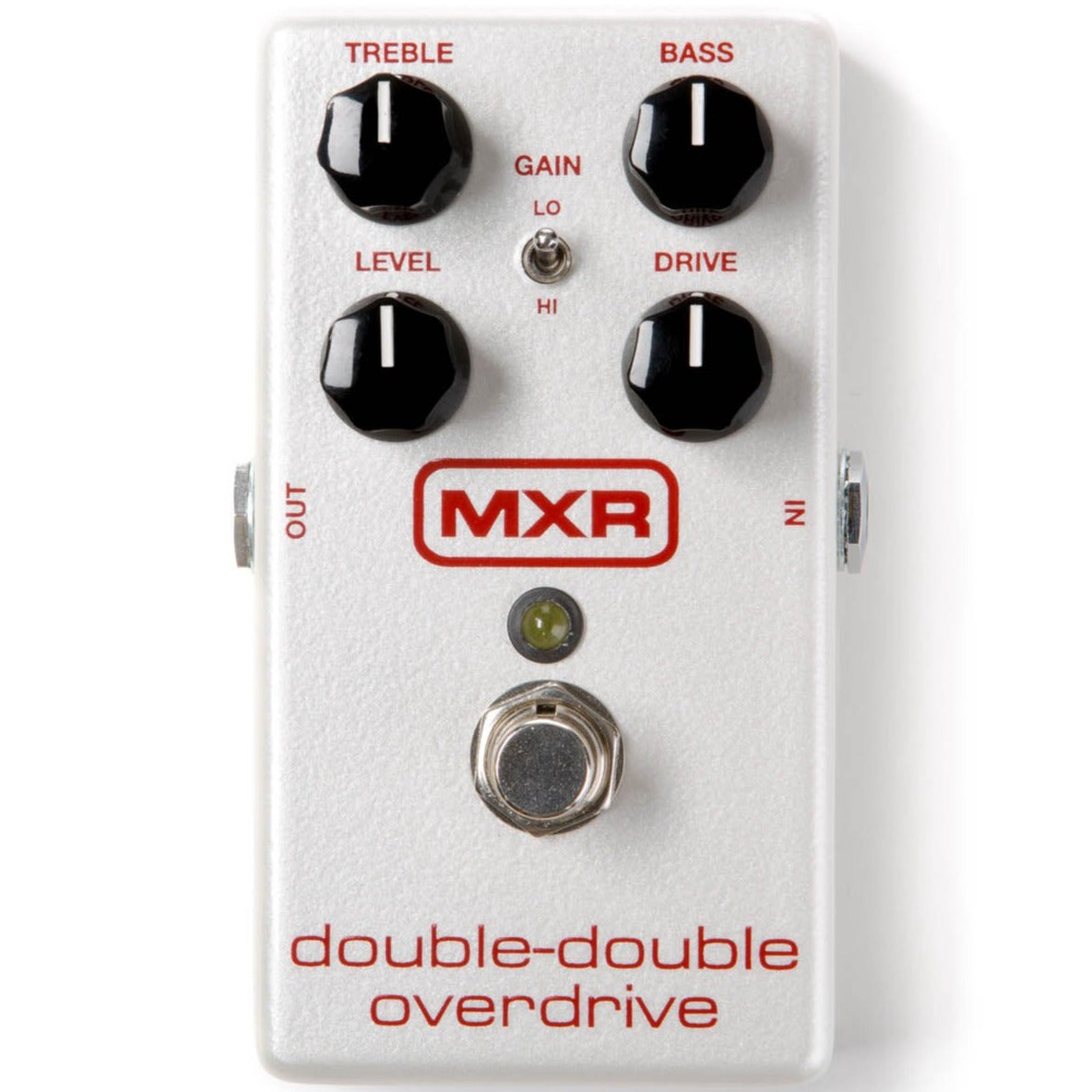

The MXR Double-Double Overdrive serves up two classic overdrives in a single housing. Changing between the two is as simple as a flick of the Lo/Hi switch: the Low Gain circuit belts out rich, fiery midrange tones while the High Gain circuit kicks up the gain and emphasizes highs and lows. Use the Treble and Bass controls to season your overdriven sound, and then crank the Level and Drive controls to turn the heat up to your liking. The MXR Double-Double Overdrive comes in a road-ready housing with true bypass switching.
- Input Impedance ~ 1Mohm @ 1 KHz
- Output Impedance 100 ohms @ 1 KHz
- Maximum Gain* >40<50 dBV
- Noise Floor** -90 dBV
- Power consumption <14 mA @ 9 VDC
- This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
