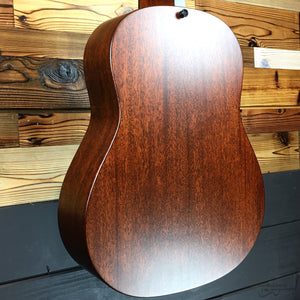

*Photos shown are of the actual guitar for sale. Serial #1103079027
**Slight blemish on guitar top, see last two images
Among the first generation of our Grand Pacific dreadnought guitars, the mahogany/torrefied spruce Builder's Edition 517e dramatically expands the Taylor line's sonic palette with a new flavor of acoustic tone that may surprise players who think they know the Taylor sound. An exciting new entry into the dreadnought category, this round-shoulder Grand Pacific resonates with a finely-honed balance of low-end power and clarity across the middle and upper registers, producing a warm, rounded tone in which notes blend seamlessly together to create a seasoned sound. Back and sides of neo-tropical mahogany flavor the sound with dry, woody character, coupling beautifully with the dynamic response of the torrefied Sitka spruce top.
The Builder's Edition stamp means that the 517e is detailed with premium features designed to maximize player comfort, including chamfered body edges and a new compound-carve neck profile that compensates for the change in your hand position as you move along the neck. Subtly contoured fretboard edges and a rounded, ridgeless heel add to the guitar's pleasing fretting-hand feel, while a refined bridge shape brings extra comfort to your pick hand.
Under the hood, V-Class bracing enables the guitar to pump out the stunning projection and sustain, plus nearly perfect intonation, which means you won't have to contend with sour notes on the fretboard. And with our proprietary onboard ES2 electronics, the guitar's many tonal virtues will shine for amplified applications. Between its sound and feel, the Builder's Edition 517e once again raises the bar on the Taylor playing experience.
Grand Pacific Shape
This round-shoulder dreadnought delivers a new flavor of warm, rich Taylor tone.
Sitka Spruce Top
The soundboard choice for most guitars, Sitka spruce produces a broad dynamic range and accommodates a versatile range of playing styles.
Tropical Mahogany Body
A midrange powerhouse. Mahogany is prized for balance and articulation, making it one of the best all-around tonewoods there is.
Expression System® 2 Electronics
The Expression System® 2 captures more of a guitar's dynamic properties using a breakthrough behind-the-saddle design.
The clean, symmetrical look of a traditional acoustic guitar.
A revolutionary design that balances the flexibility and stability of the top, V-Class bracing produces unmatched sustain, volume, and intonation.
- Scale Length 25-1/2"
- Nut & Saddle Black Graphite, Micarta saddle
- Bracing V-Class
- Truss Rod Cover West African Crelicam Ebony
- Pickguard None
- Number of Frets 20
- Tuners Taylor Nickel
- Case Taylor Deluxe Hardshell-Western Floral
- Brand of Strings Elixir Phosphor Bronze Medium
- Body Length 20"
- Body Width 16"
- Body Depth 4 5/8"
- Binding/Edge Treatment Sapele
- Top Finish Silent Satin
- Back Config 2-piece No Wedge
- Backstrap Finish None
- Rosette Size Single Ring
- Bridge Inlay None
- Back/Side Finish Silent Satin
- Armrest Binding None
- Backstrap Wood None
- Rosette Mat. Black Sapele/Maple
- Stain/Sunburst Blackwood Stain Back/Sides/Neck, Natural Top
- Wedge None
- Armrest no
- Neck Width 1-3/4"
- Fretboard Inlay Arrowheads, Grained Ivoroid
- Fretboard Binding/Edge Treatment West African Crelicam Ebony
- Heel Cap Binding West African Crelicam Ebony
- Type of Neck Joint Scarf
- Neck/Heel Tropical Mahogany
- Fretboard Wood West African Crelicam Ebony
- Neck Finish Satin
- Heel Length 3-1/2"
- Peghead Finish Satin
- Peghead Binding None
- Peghead Type Standard
- Peghead Purfling None
- Headstock Overlay West African Crelicam Ebony
- Peghead Inlay Arrowheads, Grained Ivoroid
- Peghead Logo Grained Ivoroid
- Bridge Pins West African Crelicam Ebony
- Buttons Nickel
- Fingerboard Ext None
- Edge Trim None
At Easy Music Center, we care for our instruments from the moment they arrive to when they ship to your door. All instruments are stored in a climate controlled environment and put through a 12-point inspection checklist before being shipped.
First, we check the finish of the instrument, carefully inspecting any blemishes on the surface. Next, we check the playability and setup by inspecting and adjusting the truss rod (if available), bridge, nut, and frets to manufacturer factory specifications. Any request made outside of manufacturer factory specifications can incur additional charges for parts and labor. If the instrument has electronics, we test all of the electronic components to make sure they are functioning properly.
After a thorough inspection, we then move on to maintenance. We start by lubricating any moving parts on the instrument, such as tuning machines. We then move on to cleaning and oiling the fretboard along with the frets.
Once maintenance is done, we stretch and tune the strings and play test the instrument. After this, we do a final inspection and clean/detail the instrument before packing it up for shipment.
We’re excited to be a part of your instrument buying experience.
Acoustic guitars and ukulele are made of wood, and wood is sensitive to changes in climate. Shifts in temperature or relative humidity can affect your instrument in multiple ways, some of which can lead to costly repairs if you’re not careful. Solid woods in particular are especially prone to the effects of climate fluctuation. For example, extended exposure to low relative humidity (below 40% RH) can dry out the wood, causing it to shrink and run the risk of cracking. Similarly, excessive humidity can cause the wood to absorb moisture and swell, potentially causing other problems. Without adequate humidity control (especially in drier local climates), acoustic instruments can crack and their necks can warp, causing problems with fretting, intonation and playability.
So how do you prevent this kind of damage? Easy: by keeping your guitars and ukulele properly humidified (ideally between 40-60% RH). The easiest way to do this is by storing your instruments in a case with a case two-way humidifier inside. A two-way humidifier will slowly absorb or release moisture inside your case, maintaining humidity to help ensure your instrument doesn’t suffer damage. Using a digital hygrometer can help you monitor humidity levels around your instrument.
Symptoms of a dry acoustic instrument:
- Low action. Strings are very close to the fretboard.
- Hump on the fretboard where the neck joins the body.
- Sunken top across the soundboard between bridge and fingerboard.
- The back of instrument looks very flat when it is dried out.
- Sharp fret ends extend beyond the edge of the fretboard.
- The plane of the neck angle on a dry instrument hits above the top of the bridge.
Symptoms of a wet acoustic instrument:
- High action. Strings that are unusually high off the fretboard, making it difficult to play.
- Unusually swollen top
- Unusual warp on the top, back or both at the end-block
- Improper neck angle. Sighting the neck to the bridge, the frets will appear to hit below the bridge.
Using patented technology, the D’Addario Two-Way Humidification System features disposable, moisture-filled packets with a breathable membrane that provides two-way humidity control, meaning it can either release or absorb moisture to consistently maintain a predetermined relative humidity (RH) level of 45-50 percent.
Music Nomad the leader in equipment care products, has developed an easy to use, no mess, and low maintenance Ukulele humidifier. The Humilele rests securely on top of the strings to safely and evenly hydrate your Ukulele to avoid these problems.
Final Notes on Humidity Control
To monitor the amount of humidity your instrument is receiving, we recommend the purchase of a digital hygrometer, a device that gauges and provides a read-out of humidity levels. It can be kept in the room where you store your instruments, or, better yet, in a central location inside the instrument case, preferably Velcro’d to the outside of the accessories compartment (facing the heel). The optimal range for your guitars and ukulele is 45-55% RH.
